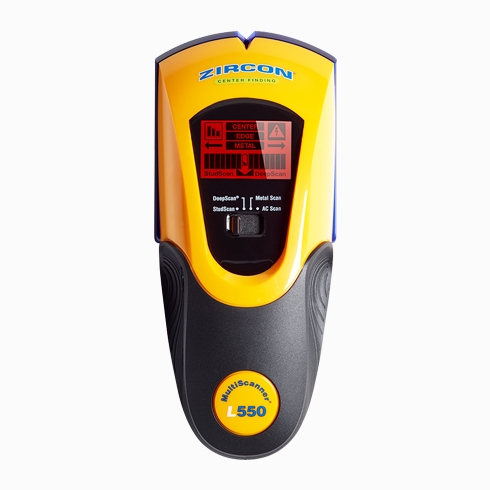

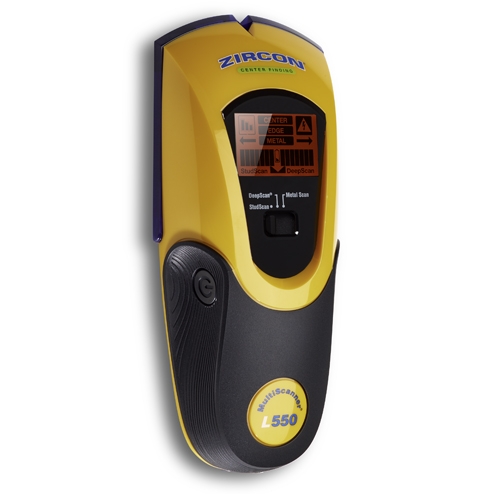

Zircon 68720 MultiScanner Onestep L550C
The MultiScanner® L550c OneStep™ locates beams, metal, and power lines behind walls, floors, and ceilings. The advanced ColorTrip™ display turns green for beams, blue for metal, and red for power. The display flashes or turns red to indicate the presence of power during Beam, DeepScan®, and metal scans. A 4-mode switches between the different options, while a bright LCD display with the patented SpotLite® Pointer emits an audible tone indicating the target being sought.
Features
- StudScan mode locates the center, edges, and direction of wooden and metal beams up to 19 mm depth
- DeepScan® mode doubles scanning depth up to 38 mm
- WireWarning® detection locates unshielded active current wires up to 51 mm depth
Metal Scan mode locates non-ferrous metals such as copper pipe up to 38 mm, and ferrous metals such as rebar up to 76 mm - AC Scan mode locates unshielded active current wires up to 51 mm depth
- ACT™ (Auto Correcting Technology) automatically corrects common errors when scanning begins over a beam
- ColorTrip™ display with Target Spotlight indicates the direction and edge of a beam and lights up when the center of a beam is detected
- Low Battery Indicator for optimal use
- Signal Strength Indicator helps distinguish between shallow and deep-lying targets
- SpotLite® Pointer an arrow-shaped Light appears on the wall to clearly indicate the center
- “V” marker groove for more accurate marking of the target
- Rubber handle for a non-slip grip
Technical Data
- Dimensions 196 mm L x 84 mm W x 43 mm H
- Weight 218 g without battery
- Battery Type 9V Alkaline not included
- Accurate Positioning* Up to a depth of 19 mm:
Normally within 3 mm - Up to a depth of 38 mm: Normally within 5 mm
- In metal scan mode: Normally within 13 mm when using the
dual scan and marking procedure - Depth StudScan Mode: Up to a depth of 19 mm
- DeepScan® Mode: Up to a depth of 38 mm
- Metal Scan Mode: Up to 38 mm deep for copper, up to 76 mm for rebar
- AC & WireWarning® Position Accuracy* 230V at 50Hz within a distance of
152 mm. - Unshielded power wire.
- AC & WireWarning® Depth* Electricity can be detected up to a depth of 51 mm
- Operating Temperature -7° to 41°C
- Storage Temperature -29° to 66°C
- Humidity 5 - 90% RH non-condensing
- Splash-proof: Splash-proof, not waterproof
*Note: Measurement depth may vary due to humidity of material,
wallpaper, paint etc. For indoor use only.
