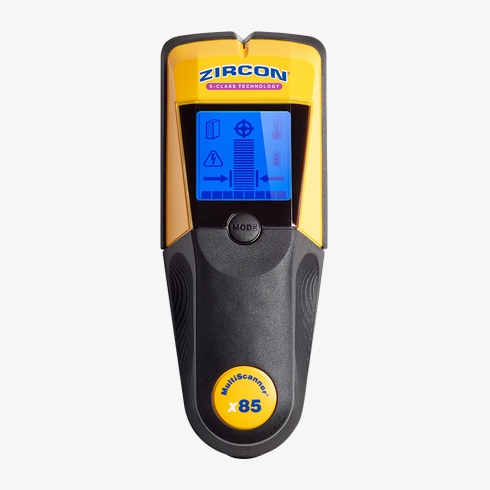

Zircon 65186 Multiscanner X85
The MultiScanner® x85 OneStep™ versatile scanner detects water-filled heating pipes, finds wooden and metal beams, and scans power wires. The x85 uses Zircon’s patented ergonomic handle for comfortable scanning. It features a large LCD display that indicates the center of the target.
Features

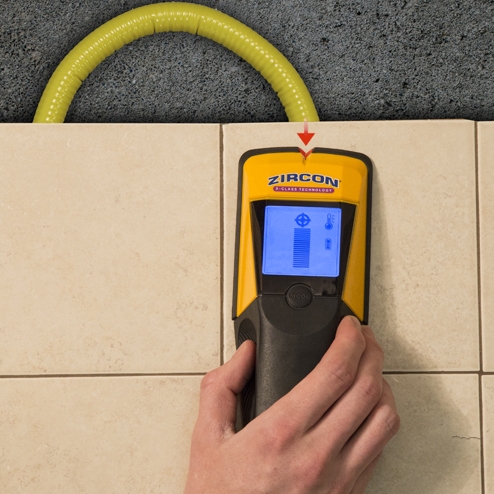

- THERMAL: Actively detects plastic pipes filled with heated water with a diameter of 13 mm to a depth of 50 mm
- STUDSCAN: Finds the direction, center, and edges of wooden and metal beams up to 50 mm deep

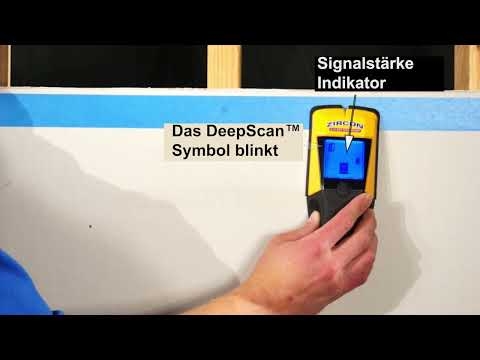

- DEEPSCAN®: Finds and traces unshielded power wires up to 50 mm deep
- AC: Finds and traces, not Shielded wiring up to 51 mm deep
- Low battery indicator ensures optimal use*
- Arrow-shaped SpotLite® Pointer indicates target direction
- Water and dust resistant
Technical Data
- Dimensions 208 mm L x 81 mm W x 42 mm H
- Weight 228 g without battery
- Battery Type 3 x AAA (LR03 [not included])
- Detectable Materials
- Plastic (with warm water)
- Active AC cables
- Wooden beam
- Metal beam
- Accuracy +/- 5 mm
- Ultra High Sensitivity
- Automatic Compensating
- Automatic Shut-off after 3 min
- Operating Temperature -7° to 41°C
- Storage Temperature -29° to 66°C
- Humidity 5 - 90% RH (non-condensing)
- Splash-proof: Splash-proof, not waterproof
Note: Measurement depth may vary due to humidity and materials such as wallpaper, paint, etc. Not recommended for plasterwork.
