Vogt VH 50-70.18 DT-XL Pneumatic Chipping Hammer Civil Engineering Services Road Construction
Special Features
- VOGT is also your point of contact when it comes to equipment for pipeline construction or civil engineering. With a variety of different equipment, you are guaranteed to find exactly the civil engineering equipment you need.
- The excavator cannot reach every angle when pipes need to be exposed. This is where VOGT pneumatic tools avoid costly manual labor: whether digging, compacting, breaking up, or exposing, working time can always be saved with the lightweight civil engineering tools. For example, the short VOGT hammer digs during horizontal undermining and substructure work. It breaks through basement walls, scrapes off bitumen, and plugs pipes. The short design is ideal for narrow trenches or obstructing shoring elements.
Applications
- Emission-free compaction in trenches and shafts
- Precise compaction work, even in narrow spaces
- Exposing existing cables and pipes
- Connecting exposed conduits and cable bundles
- Excavating in heavy, stony soil and mineral concrete
- Clearing supply lines at intersections
- Excavation work to support building measures
- Further compaction of property walls and entrance platforms
- Excavating main trenches to create access to the building
Technical data
- Model VH 50-70
- Vibration damped No
- Length 70 cm
- Weight 4.4 kg
- Max. Number of strokes 1,960/min
- Operating pressure 3.0 - 6.0 bar
- Air consumption 255 l/min/6 bar
- Tool holder shank 18 mm
- Sound pressure emission level LPA 94 dB (+3 dB on.) / 6 bar
- Sound power level LWA 105 dB (+3 dB on.) / 6 bar
- Vibration value 15.3 m/s²
- Uncertainty 2.0 m/s²

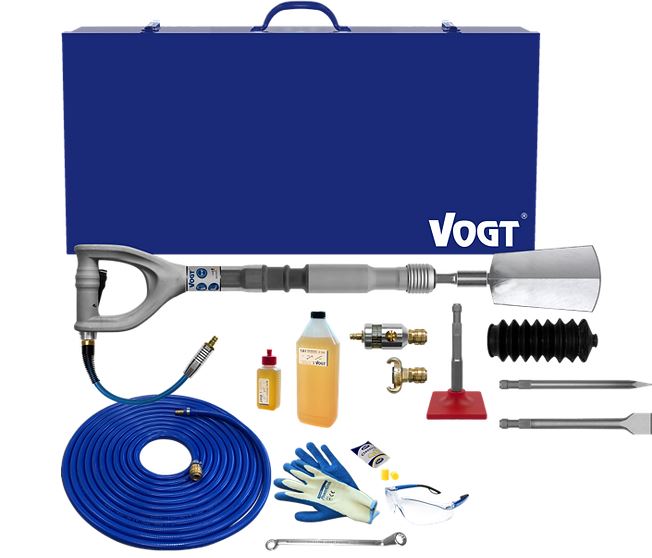

Scope of delivery
- 1 Digging spade GA 140.18 H
- 1 Point chisel M 100.18
- 1 Wide chisel M 340.18
- 1 Compressor plate V 1120.18 H
- 1 Adapter 3/4 inch to standard connection Z 200
- 1 Precision linseed oil gun Z 300
- 1 Compressed air hose 10 m
- 1 Dirt repellent
- 1 VOGT special oil 0.1 l
- 1 Pair of work gloves
- 1 Safety glasses
- 1 Earplugs
- 1 Metal transport case
- 1 User manual
