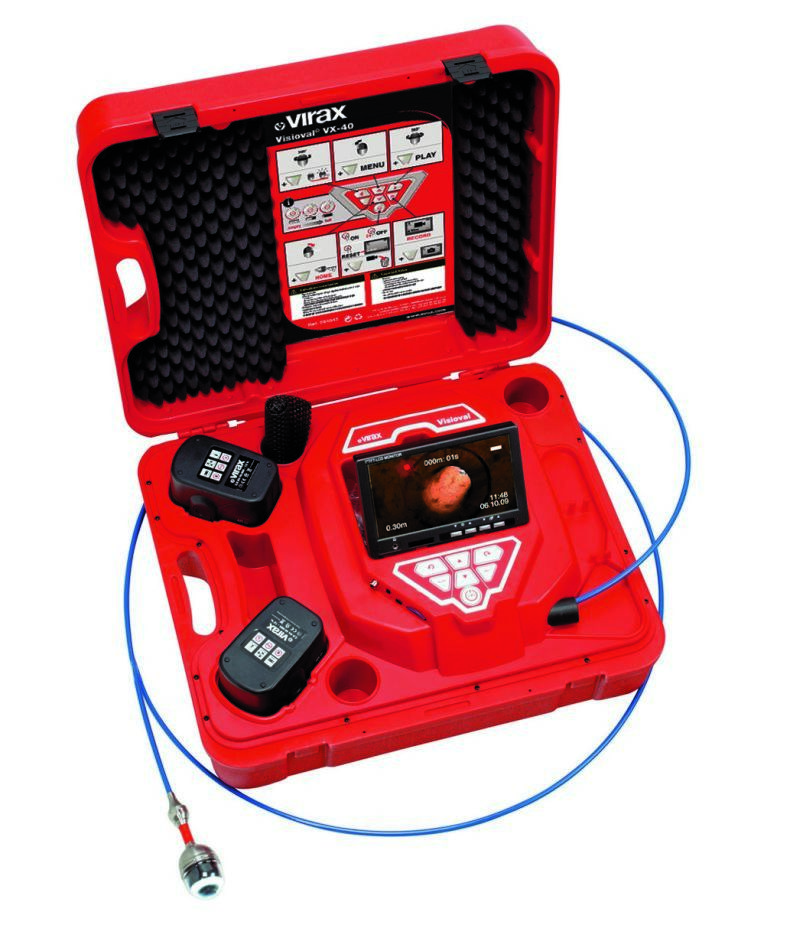

VIRAX 294045 VISIOVAL VX-40 Inspection Camera 40 mm
Special features
- Portable video inspection system with fully integrated, localizable camera heads in a plastic case with double, reinforced walls. For vertical or horizontal inspection of pipes with an int. diameter of 40 mm, outlets, ventilation pipes, chimneys, suspended ceilings, industrial installations, various hollow spaces...
- Visioval® VX-26 and VX-40 with non-interchangeable camera heads
- Complete with an integrated 8.9 kHz transmitter for exact localization of the head in the pipe (requires tube ref. 294054)
- Digital display (precision 4 cm) and tilt of the head on the screen
- "Home" function to center the camera head correctly (only on a head with a Ø of 40 mm)
- Wide field of view of 115° and a light sensitivity of 0.5 lux: sharp image in dark places
- 12 LED lights protected against impact and dirt, with adjustable brightness
- Clear images of excellent quality thanks to the resolution of 800 x 480 pixels
- Rotatable screen secured in the carrying case, which can be removed for manual operation (2 meter cable)
- Brightness and contrast are adjustable
- Operates on mains power or battery (2 batteries included)
- Battery runtime is displayed on the screen, up to 2 hours per battery
- Battery charge level indicator
- Record photos and videos to a 2 GB SD card (included), max. 2 hours of video
- Play/Fast forward and rewind/Pause/Delete photos or videos on the Visioval®
- Mini-USB port for transferring photos or videos to the PC
Technical specifications
- Head Ø 40 mm waterproof 1 bar/IP67, rotatable 360° and swiveling out to 180° for inspections of an internal Ø of 50/200 mm
- Color screen TFT 7" (18 cm)
Scope of delivery
- - 2 batteries: 12 V, 2.6 Ah Ni-MH
- Power block
- Anti-slip mat: prevents the bag from sliding on, for example, tiled floors
- SD card 2 GB
- USB cable
- 5 plexiglass domes
- In case
