Uni-Trend UT682 LAN cable locator

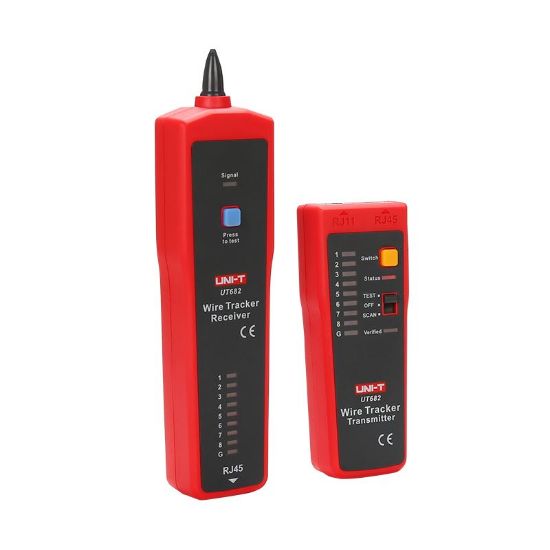

The UT682 cable locator consists of a transmitter and a receiver. The UT682 is capable of tracing Ethernet, telephone, and power cables without opening their insulation. The UT682 detects faults in Ethernet cables and is a recommended tool for debugging electronic systems, communication cables, and audio/video cables.
Special features
- Wire tracing (LAN cable / telephone line / coaxial cable)
- Active network port signaling
- LED indicator for signal
- Telephone line approx. 3000m
- Shielded and unshielded cable approx. 320m
- Video cable approx. 100m
- Short circuit and open circuit test
- Differentiates telephone lines and LAN cables
- Operates in ambient temperature: -10 °C ~ 50 °C
Technical data
- Suitable for: Multifunctional
- Version: Handheld tester
- Indication type: LED/acoustic
- With PC/printer interface: No
- Measurement value memory: No
- Suitable for network protocol measurement: No
- Additional device connectable: No
- Measuring head included: Yes
Supplied with:
- UT682 transmitter
- UT682 receiver
- RJ11/RJ45 cables
- RJ11 alligator clip
- 9V battery
- Storage bag
- English manual
