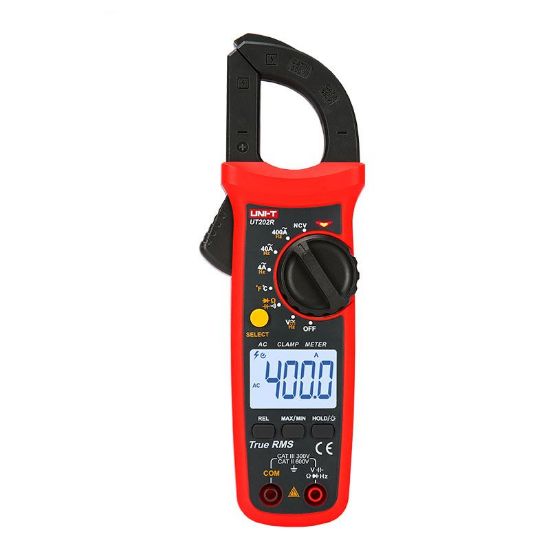

Uni-Trend UT202R Digital Clamp Meter 0.04 - 400A AC
Uni-Trend UT202R Digital True RMS AC Clamp Meter 400A.
Special Features
- AC/DC Voltage Range up to 600V
- AC Current Range up to 400A
- Resistance up to 40M¦
- Capacity up to 4mF
- Temperature from -40°C to 1000°C
- Jaw Opening of 28mm
- Multi-segment NCV display with audio/visual alarm
- Includes extra functions such as diode test, continuity test, data hold, backlight, automatic range selection and shutdown, MIN/MAX
- mode, etc.
- Safety category: CAT III 300V / CAT II 600V
Technical data
- Indication/display: Digital
- Analog bar display: No
- Multiple indication: No
- With screen illumination: Yes
- Measuring range selection: Manual/automatic
- Current measurement range: /AC Min: 0, Max: 400
- Current type: AC
- Efficiency measurement (TRMS): Yes
- Voltage measurement/AC: Yes
- Voltage measurement/DC: Yes
- Resistance measurement range: Yes
- Temperature measurement: Yes
- Capacity measurement: Yes
- Frequency measurement: No
- Power measurement: No
- Leakage current measurement: No
- First harmonic component measurement: No
- Measurement in cable with forward and return conductor: No
- Clamp jaw opening: 28 Millimeters
- Version as adapter for connecting to multimeter: No
- Interface: No
- Measurement circuit category: CAT III
- Max. voltage measurement circuit category: 300 Volts
- Continuity test: Yes
- Protection degree (IP): Other
Supplied with:
- UT202R Digital True RMS current clamp
- Test leads
- Batteries
- Temperature probe
- English manual
- Carrying case
