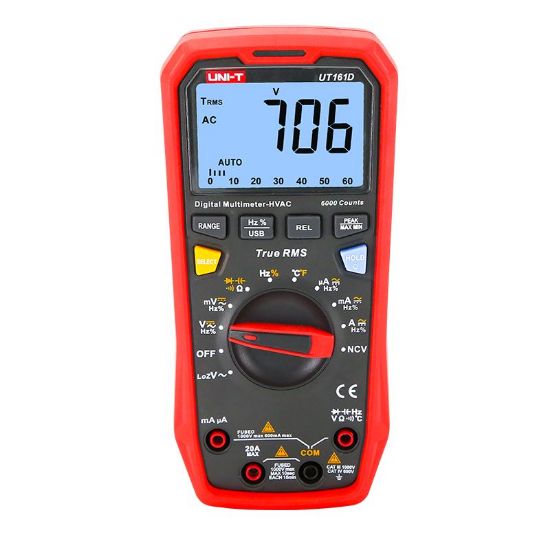

Uni-Trend UT161D TRMS Modern autoranging multimeter with temperature
Uni-Trend UT161D TRMS modern autoranging multimeter with temperature
Special features
- Automatic or manual range selection
- Includes extra functions such as diode test, continuity test, Max/Min/Relative measurement, data hold, peak hold, NCV (audible/visual alarm), LoZ ACV,
- backlight
Technical data
- AC/DC voltage range up to 1000V
- AC/DC current range up to 20A
- Temperature range: -40°F~1000°F
- Resistance up to 220M¦
- Capacity up to 220mF
- Frequency up to 220MHz
- AC frequency response range: 45Hz to 3kHz
- Duty Cycle: 0.1% to 99.9%
- USB communication, input protection
- Safety class: CAT III 1000V/CAT IV 600V
Standard included
- UNI-T UT161D Multimeter
- Battery
- Gold-plated test leads
- USB cable
- Temperature probe
- English manual
