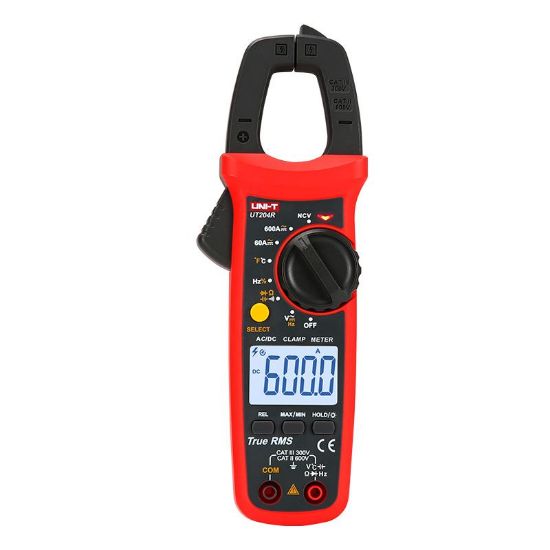

Uni-Trend 30609260 Digital True RMS Clamp Meter 0.06 - 600A AC/DC
Uni-Trend UT204R Digital True RMS AC/DC Clamp Meter 600A.
Special Features
- AC/DC Voltage Range up to 600V
- AC/DC Current Range up to 600A
- Resistance up to 60M¦
- Capacity up to 60mF
- Frequency Measurement: 10Hz to 10MHz
- Temperature Measurement: -40°C to 1000°C
- 28mm Jaw Opening
- Multi-segment NCV display with audio/visual alarm
- Includes extra functions such as diode test, continuity test, data hold, backlight, automatic range selection and shutdown, MIN/MAX
- mode, Rel. mode, etc.
- Safety category: CAT III 300V / CAT II 600V
Technical data
- Indication/display: Digital
- Analog bar display: No
- Multiple indication: No
- With screen illumination: Yes
- Measuring range selection: Manual/automatic
- Current measurement range/DC: Min: 0, Max: 600
- Current measurement range/AC: Min: 0, Max: 600
- Current type: AC/DC
- Efficiency measurement (TRMS): Yes
- Voltage measurement/AC: Yes
- Voltage measurement/DC: Yes
- Resistance measurement range: Yes
- Temperature measurement: Yes
- Capacity measurement: Yes
- Frequency measurement: Yes
- Power measurement: No
- Leakage current measurement: No
- First harmonic component measurement: No
- Measurement in cable with forward and return conductor: No
- Clamp jaw opening: 28 Millimeters
- Version as adapter for connecting to multimeter: No
- Interface: No
- Measurement circuit category: CAT III
- Max. voltage measurement circuit category: 300 Volts
- Continuity test: Yes
- Protection rating (IP): Other
Standard accessories included
- UT204R Digital True RMS clamp meter
- Test leads
- Batteries
- K-type temperature probe
- English manual
- Carrying case
