Trotec 3510205161 BD26 Distance Meter
Description
With this handy measuring device, you can quickly and easily determine distances, surfaces, and volumes with laser precision at the push of a button, even in hard-to-reach places.
- Compared to cumbersome classic measurements with a ruler or tape measure, the BD26 always ensures error-free results, allowing you to optimally calculate the necessary working materials such as wall paint, parquet, or tiles, for example.
- The 90° inclination sensor with 3-point Pythagoras functions integrated into the BD26 distance meter enables the user to perform more complex measurements, such as e.g.

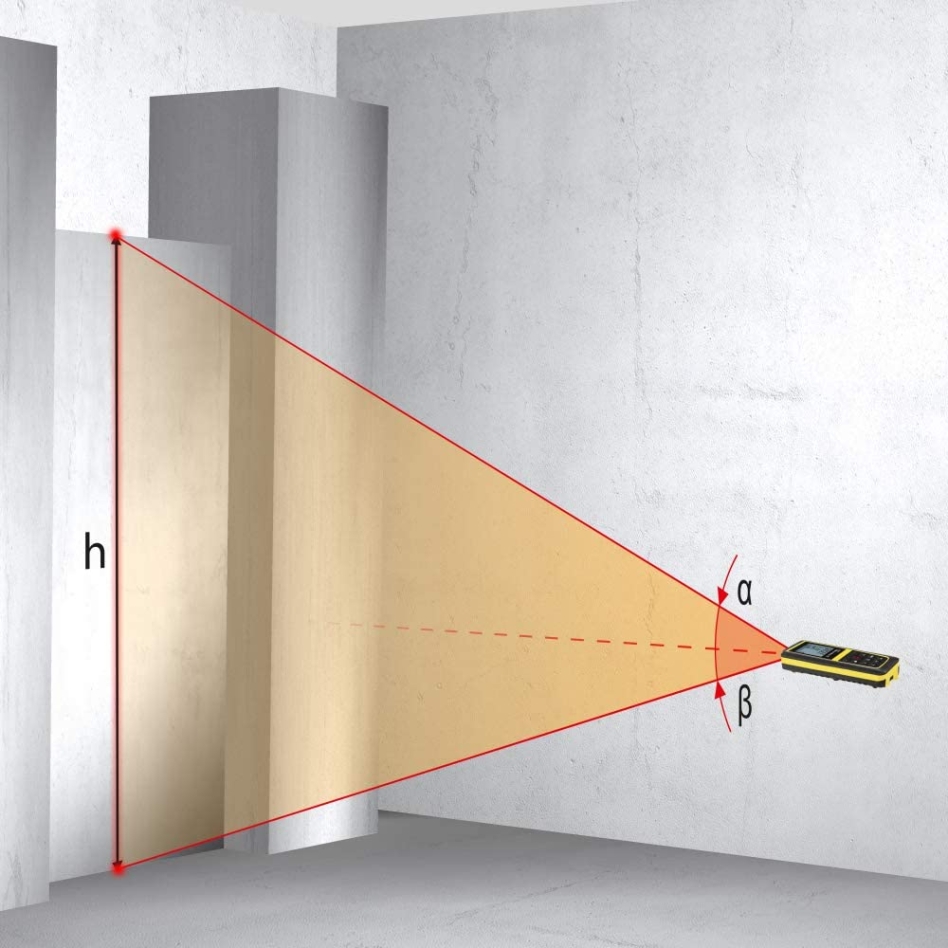

- Height and partial height measurements, distance measurement or - if there are obstacles - even indirect measurements of distance and height over obstacles
- Additionally, the BD26 can also be used as an electronic spirit level.
- Despite extensive functions, the laser distance meters are extremely user-friendly - every function and setting has its own button.
- Thanks to the switchable illumination of the large multi-line display, measurements are no problem even in dark rooms or in daylight.
- Designed for indoor use, the BD26 also overcomes harsh situations on construction sites with ease, as the robust measuring instruments are dust- and splash-proof according to IP54
- They are therefore ideal for all kinds of manual work.
Practical benefits

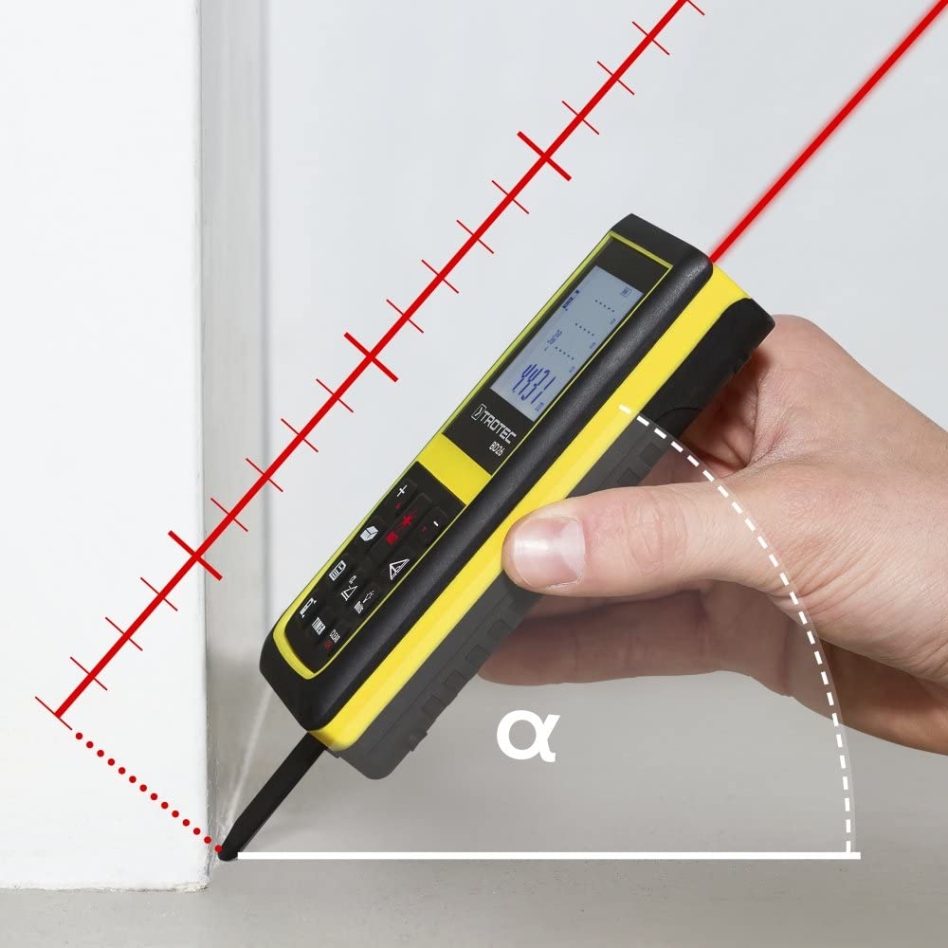

- Integrated 90° tilt sensor
- Indirect calculation of distance and height or partial height (3-point Pythagoras functions)
- Accurate and instantaneous measurement of distances, areas, and volumes

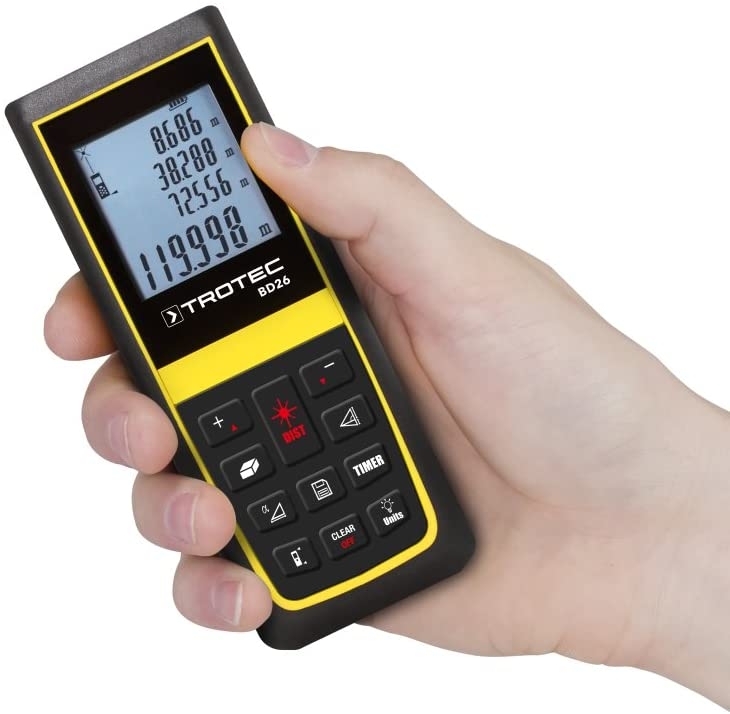

- Illuminated multi-line display - optimal readability, even in poorly lit environments
- Soft-touch direct keys
- Handy and lightweight - easy to use
- Robust finish - dust and splash-proof (IP54)
- Multifunctional end piece
- timer function:
- Optimal price-performance ratio
Technical specifications
- Measurement accuracy typ.*: ± 2 mm (±0.08 in)
- Range: 0.05 to 120 m (0.16 to 393 ft)
- Units of measurement: m, in, ft
- Functions: min./max./continuous measurement, addition and subtraction, area and volume measurement, indirect distance and height or section height calculation (3-point Pythagoras functions), distance recording, electronic spirit level, display illumination, automatic shutdown
- Retrieve last measurements: 10
- Protection class: IP54
- Power supply: 2 x 1.5 V type AAA
- Dimensions L x W x H: 27 x 49 x 118 mm
- weight incl.
- Batteries: 150g
Scope of delivery
- gauge
- batteries
- transport bag
- manual
*under favorable conditions (good target surface, room temperature) up to 10 m.
