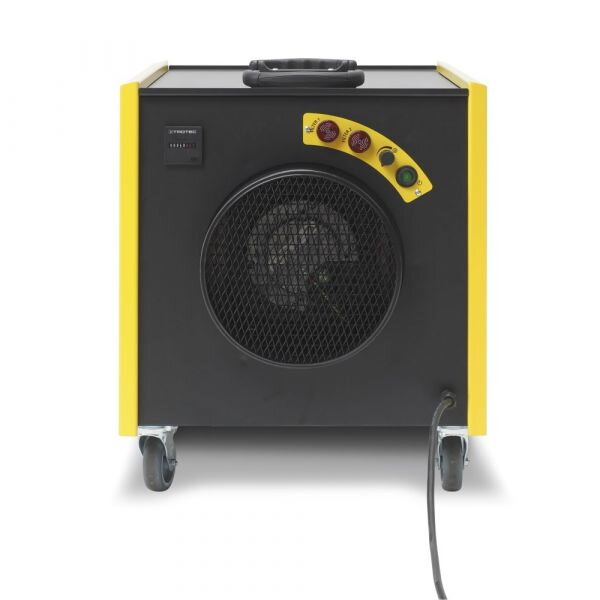

Trotec 1580000117 TAC 3500 air purifier
Special Features
- The TAC 3500 air purifier – just like the other TAC professional devices – is specially designed for the tough daily work on varying construction sites and can be configured for any application thanks to the continuously adjustable air volume.
- Thanks to the modular and flexibly combinable filter modules of the TAC air purifier, the optimal filter combination can be assembled for every level of air pollution in the room – and thanks to the Vario-Shift function, also with a HEPA filter that can be placed at the ends for cleanroom environments.
Practical Benefits
- Unique worldwide: professional air purifiers – versatile for construction site and cleanroom renovations with only one device
- Dust class H, approved for asbestos removal according to TRGS 519
- Already prepared for future BG guidelines for the use of mobile air purifiers
- Safe investment: already compliant with the ErP directive for 2015
- Vario-Shift function for adjusting the filter chain with an end fan or HEPA filter
- Monoventic controller for precise, steplessly adjustable air volumes

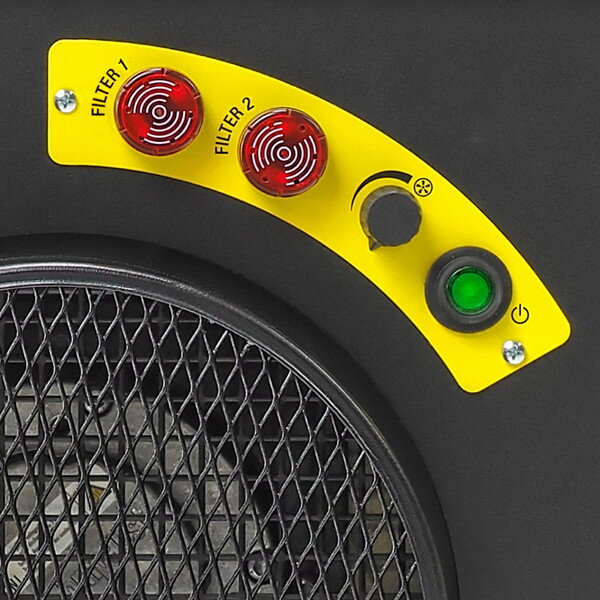

- Optical and acoustic replacement display for pre- and main filter - sensor-supported
- Professional quality "made in Germany" - original Trotec production
- Easy filter replacement thanks to inspection panels
- With optionally available H13 or H14 filter for Filtering of pollen, mold spores, fine dust, bacteria, and viruses, suitable for a wide range of applications.
Filtration range:
- asbestos dust
- quartz dust
- debris
- flour and wood dust
- mineral fibers
- mold spores
- color particles
Typical application areas:
- blasting
- construction and renovation work
- water damage repair
- fire damage repair
- mold remediation
- asbestos removal
- cleanroom applications
Technical data
- Dust class (according to DIN EN 60335-2-69): Dust class H (permeability ≥ 0.005%) for dusts with workplace limit values? 0.1 mg/m³, carcinogenic hazardous substances according to GefStoffV §11, TRGS 905 or 906, approved for asbestos removal according to TRGS 519
- Maximum air volume freely blowing, without filter: approx. 2,150 m³/h
- Maximum negative pressure: 1,100 Pa
- Recommended air volume for dust class H: 1,000 m³/h
- Motor power: 450 W
- Connection voltage: 230 V / 50-60 Hz
- Current consumption: 2.8 A
- Power connection / connection cable: safety plug (CEE 7/7) / rubber cable (H05RN-F), length 3m
- Air transport hose connection Ø: 250mm (inlet & outlet side)
- Noise level (distance 1m): 65 dB (A)
- Total dimensions (L x W x H): 885 x 460 x 532 mm
- Weight (full): 39 kg
- Mobility: portable, stackable, fixed wheels
- Stepless adjustment of air volume
- Filter change indicator, optical and acoustic
- Vario-Shift function for variable application configurations with an end fan
Scope of delivery
- On pallet
- Manual
