Trotec 1510002070 TFV 1200 Centrifugal Fan
Description
The optimal solution for all application areas where air transport takes place over long distances.
- Proper ventilation is not only important for a pleasant working atmosphere, but is also absolutely necessary in many areas for occupational safety reasons and due to official regulations.
- By ventilating rooms, harmful substances such as paint or
- Paint fumes, welding fumes, dust particles, carbon monoxide, nitrogen oxide, carbon dioxide, and water vapor are removed.
- The TFV 1200 high-pressure centrifugal fan is well-equipped for such tasks, as it can handle high back pressures of up to 54,000 even over long distances. transports m³/h of air and is extremely stable for harsh practical environments.
- Because this fan draws in air axially and blows it out radially, it is not only impervious to heavily polluted air with a high dust content, but also ensures high, stable characteristics.
- In addition to the standard version, the TFV 1200 fan is also available as an optional rental version.
Here are some practical advantages of the TFV 1200 at a glance
- Particularly robust device with high transport capacity
- Splash-proof design (IP55)
- Also suitable for use in very dusty rooms
- Fan motor is located outside the main airflow
- stable characteristic curve areas and continuously high pressure
Technical specifications
- Free-blowing air volume: 54,000 m³/h
- Air outlet velocity: 38 m/s (136.8 km/h)
- Fans: stepless (frequency switch)
- Max
- Air pressure*: 2,150 Pa
- Max
- Conveyor belt temperature: 80 °C
- Ambient conditions: -20 °C to 40 °C
- Connection voltage: 400 V / 50 Hz (65 A)
- Power connection: CEE 64 A
- Power consumption: 37 kW
- Discharge nozzle: series (Ø 630 mm)
- Noise level (distance 1.5 m): 106 dB (A)
- Housing: steel, powder-coated, 2K paint
- Dimensions (with frame): 2,005 x 1,650 x 2,300 mm
- Weight: 750 kg

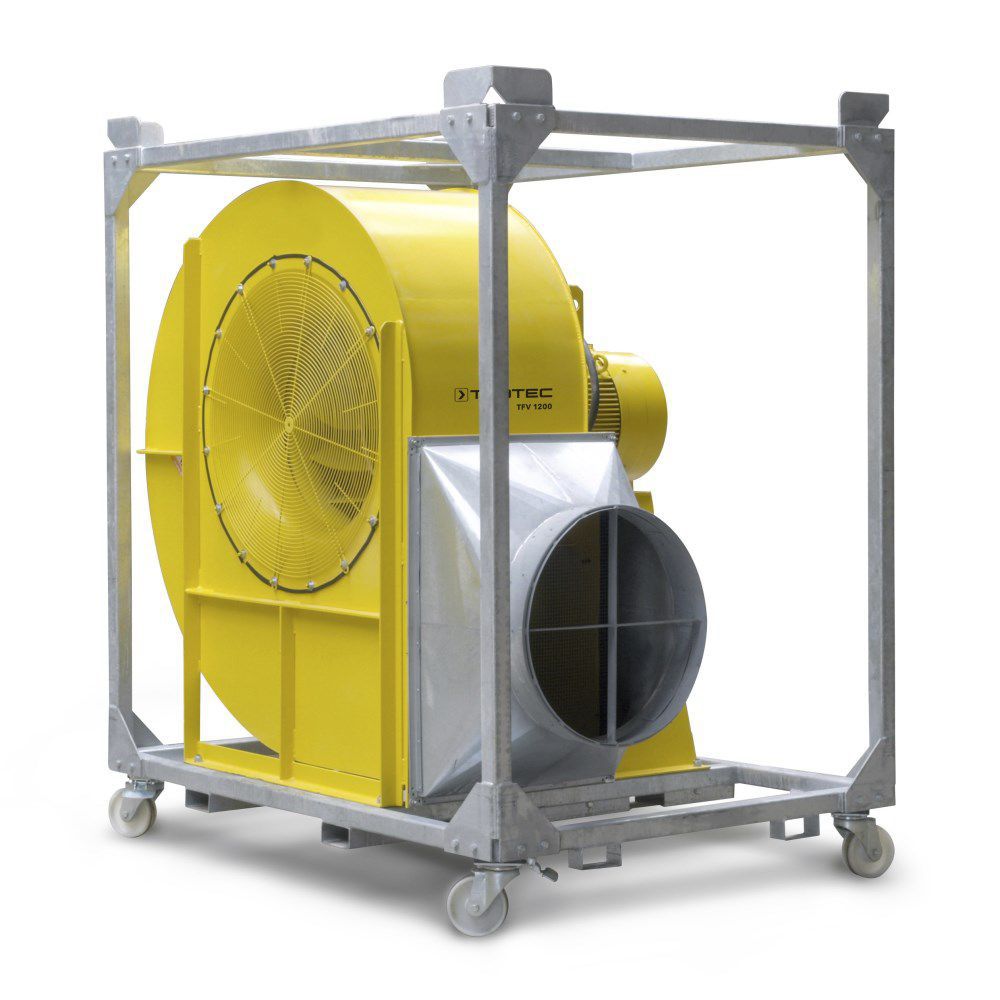

The image shows the TFV 1200 installed in a frame
- This is not included in the delivery and is available on request!
