Trotec 1510002040 TFV 600 Centrifugal Fan
Description
The optimal solution for all application areas where air transport takes place over long distances.
- Proper ventilation is not only important for a pleasant working atmosphere, but is also absolutely necessary in many areas for occupational safety reasons and due to official regulations.
- By ventilating spaces, harmful substances such as paint or
- Paint fumes, welding fumes, dust particles, carbon monoxide, nitrogen oxide, carbon dioxide, and water vapor are removed.
- The TFV 600 high-pressure centrifugal fan is well-equipped for such tasks, as it can handle high back pressures of up to 16,000 m³/h even over long distances. transports air and is extremely stable for harsh practical environments.
- Because this fan draws in air axially and blows it out radially, it is not only impervious to heavily polluted air with a high dust content, but also ensures high, stable characteristics.
Here are some practical advantages of the TFV 600 at a glance
- Particularly robust device with high transport capacity
- Splash-proof design (IP55)
- Also suitable for use in very dusty rooms
- Fan motor is located outside the main airflow
- Can be connected to both intake and exhaust ducts
- stable characteristic curve areas and continuously high pressure
Technical specifications
- Air volume (free blowing) max.: 16,000 m³/h
- Air volume at 4000 Pa: 10,000 m³/h
- Airflow: blowing out / sucking in
- Air outlet velocity: 21 m/s (75.6 km/h)
- Fans: 1
- Air pressure max.: 4900 Pa
- Transport temperature max.: 80 °C
- Ambient conditions: -20 °C to +40 °C
- IP protection class: IP55
- Connection voltage: 400 V
- Frequency: 50Hz
- Max. power consumption: 18.5 kW
- Recommended fuse: 50 A
- Nominal current: 39A
- Electrical connection / plug type: CEE 63 A
- Hose connections suction/discharge connection: 600 mm / 450 mm
- Noise level (1 m distance): 84 dB (A)
- Housing type: steel, powder-coated
- Dimensions L x W x H: 1305 x 1250 x 1800 mm
- Weight: 233 kg

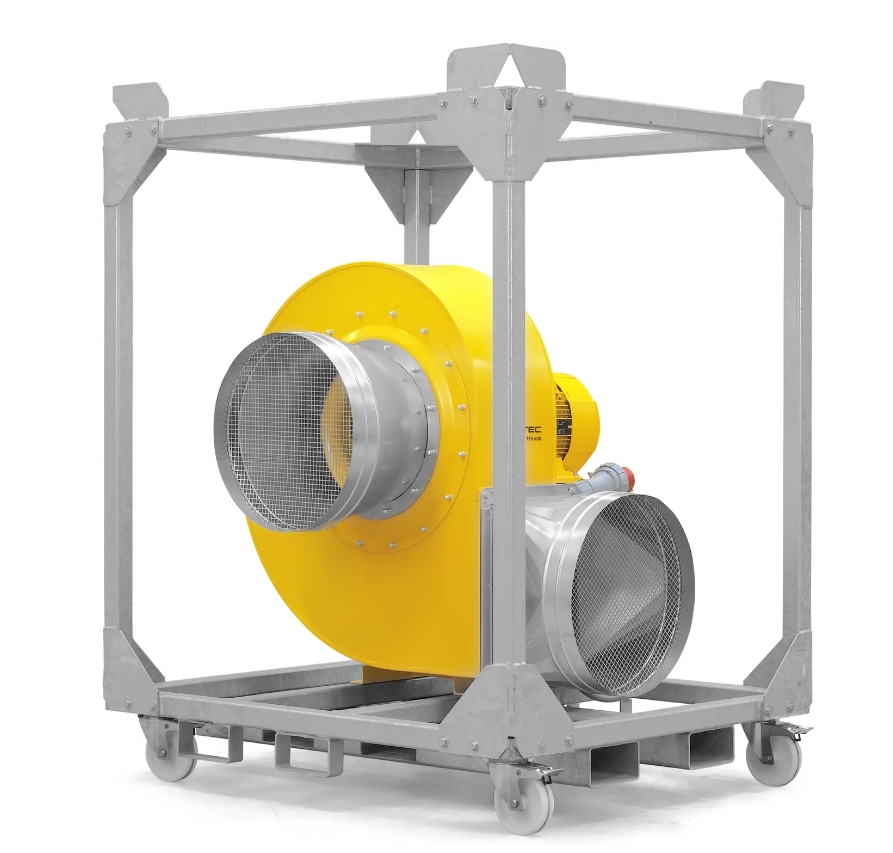

Please note that the transport frame shown in the product image is not included in the delivery, but is available as an optional accessory!
