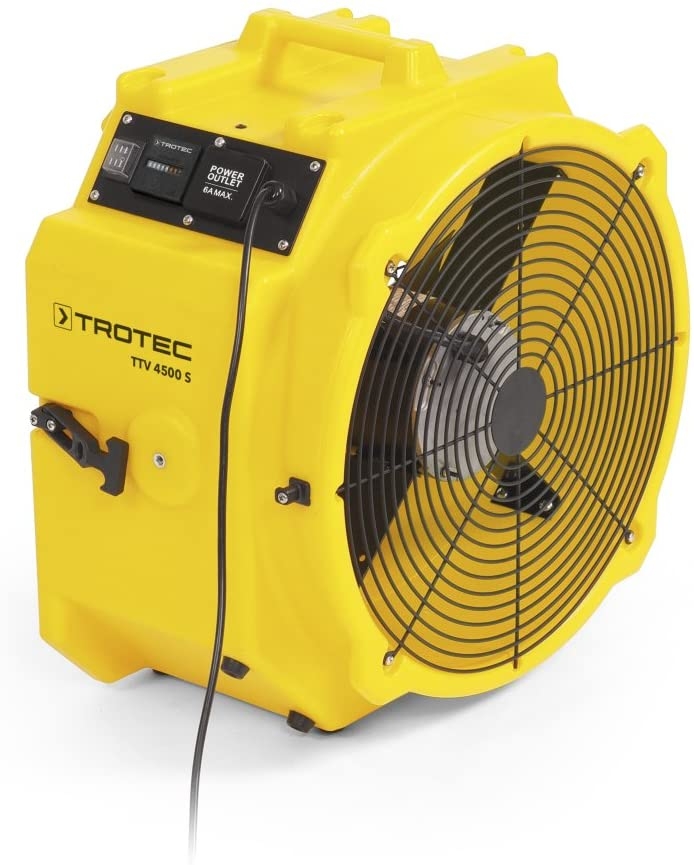

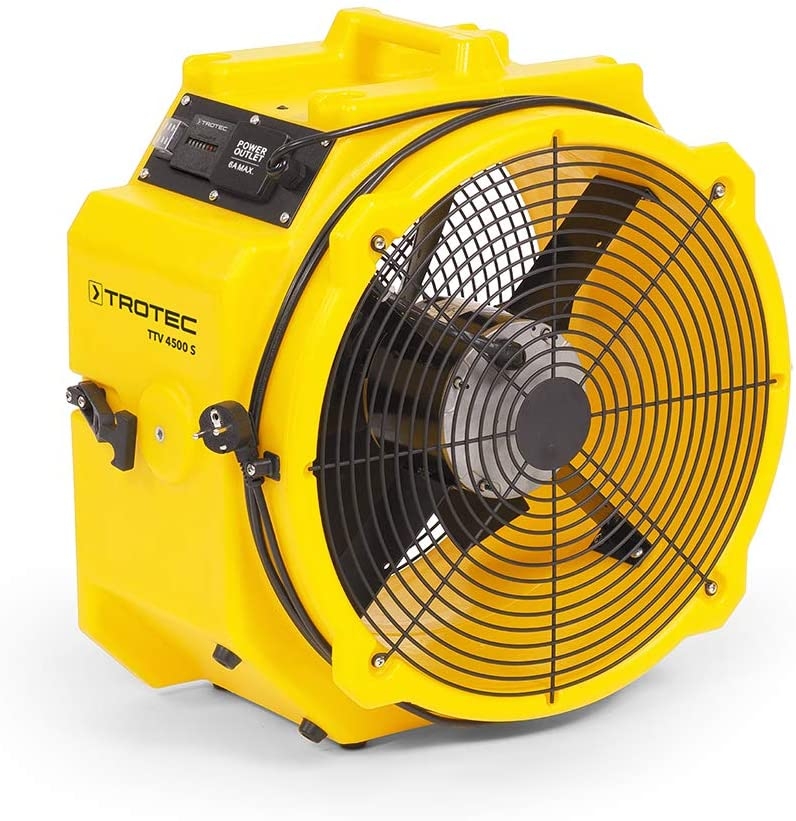

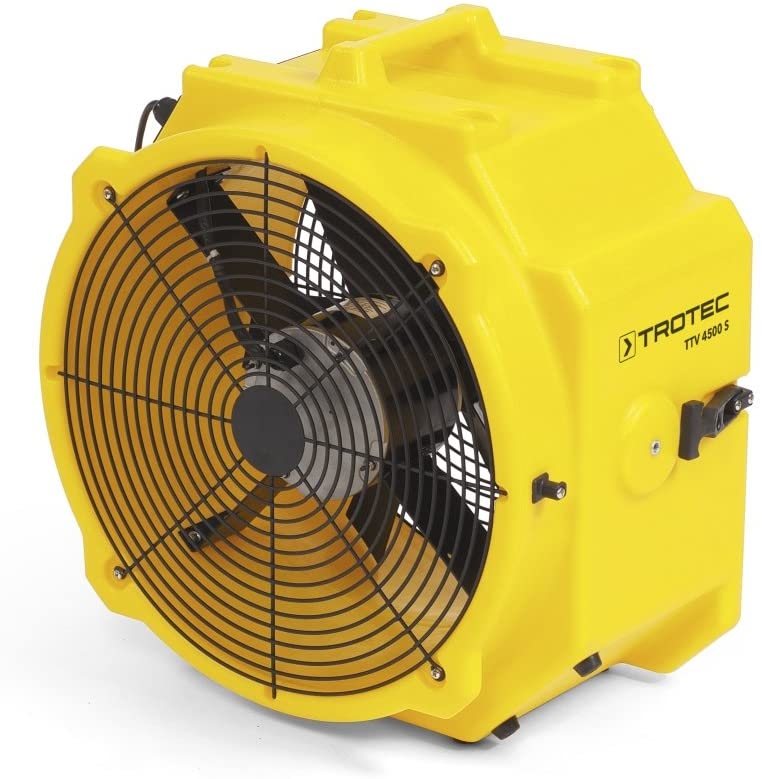

Trotec 1510000013 TTV4500S Axial Fan
The robust housing of the TTV 4500 S can be stacked five high (for storage) and is equipped with hose connections, a carrying handle, a cable holder, and rubber feet for a stable stand.
Thanks to its high air output of up to 5,000 m³/h at a pressure of 130 Pa, the TTV 4500 S is ideally suited as a surface fan for circulating large volumes of air.
Due to the innovative series connection, it is possible to connect multiple TTV 4500 S fans to each other to flexibly increase the air pressure capacity. For this purpose, robust rubber locking levers and fixing pins are attached to both sides of the housing.
For targeted ventilation of higher wall or ceiling surfaces, an optional tilt frame is available for the TTV 4500 S.
Special Features
- Robust compact housing with integrated hose connection and carrying handle
- High air output - adjustable in 2 settings
- Form-fit chaining of multiple units possible to improve performance
- Stacking operation with up to three units - stackable up to five units in the magazine
- Integrated service connection
- Hour counter
- Optional: tilt frame available
Technical specifications
- Air volume stage 1: 4,350 m³/h
- Air volume level 2: 5,000 m³/h
- Airflow: blowing out / sucking in
- Air outlet velocity: 11 m/s (39.6 km/h)
- Throwing distance outdoors/indoors: 15 / 50 m
- Max. air pressure: 130 Pa
- Max. transport temperature: 45 °C
- Connection voltage: 230 V / 50 Hz
- Fuse: 10 A
- Protection class: IP44
- Plug: CEE 7/7, cable length 4 m
- Noise level (distance 3 m): 74 dB (A)
- Dimensions (L x W x H): 330 x 530 x 560
- Weight: 14.8 kg
- Hose connection: Ø 480 mm
Scope of delivery
- In the box
- The photo shows a hose. This is not included in the delivery and can be ordered separately!
