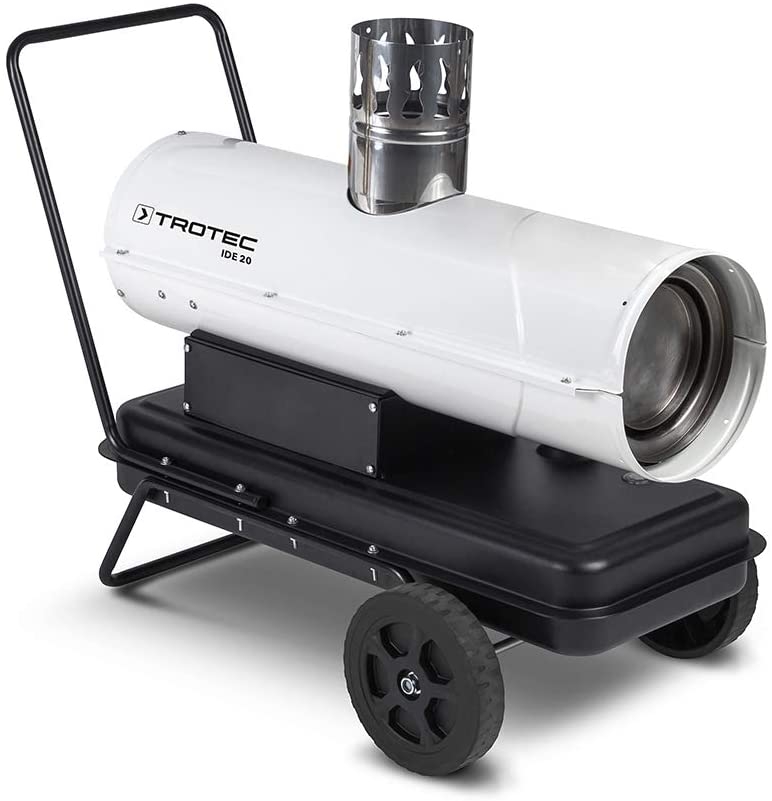

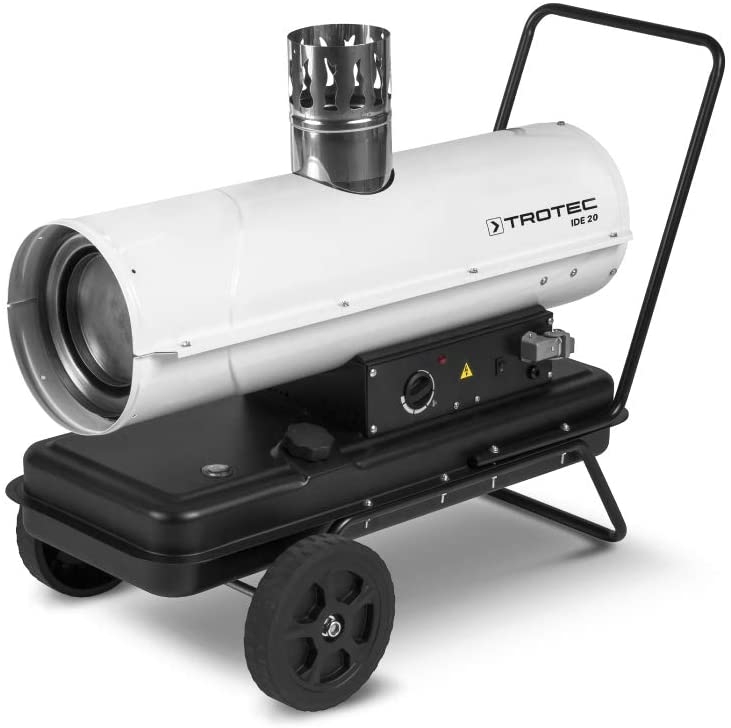

Trotec 1430000215 IDE 20 Indirectly Heated Heater 20 kW
Description
Hot price for hot air in no time
The smallest oil heater fan in the Trotec IDE series comes into its own if you are looking for a compact, affordable, and reliable oil heating solution for flexible heating applications
- Whether for a workshop, warehouse, production, or construction site – with 20 kW heating power, the IDE 20 confidently generates clean and dry hot air volumes of up to 600 m³/h.
- Even prolonged outdoor use will not deform the IDE 20 oil heater, as it features a durable housing made of double-lacquered material, supported by a smooth-running trolley construction with cable holders. and an installed fuel tank
- And when using the optionally available flue gas exhaust, this heater can also be used flexibly for the fully automatic heating of enclosed spaces.
- The IDE 20 can be fired variably with diesel or fuel oil as fuel, the constant supply of which is guaranteed by a high-quality fuel pump
- The external fuel filter offers easy access and the current fuel level can be easily read on the level indicator integrated into the tank.
- In addition to the standard integrated thermostat for temperature control, the IDE 20 has an extra connection for an external thermostat, which can be supplied as an option if the oil heater fan needs to be installed up to 25 meters away from the area to be heated.
Here are some practical advantages on a row:
- Particularly cost-effective solution for standard oil heating applications
- Integrated fuel tank with level indicator and fuel filter
- Automatic shut-off when the tank is empty and restart protection
- Electronic flame arrestor with flame monitoring
- Low-pressure fuel atomization for optimal combustion
- Stainless steel combustion chamber with fan cooling
- Automatic operation with electronic control and integrated room thermostat
- Connection for external thermostat
- Chassis for easy relocation
Technical specifications
- Heating type: indirect
- Air volume: 600 m³/h
- Nominal heat output: 20 kW (17,200 kcal/h)
- Temperature rise T: 90°C
- Current consumption: 1.1 A
- Connection voltage: 230 V / 50 Hz
- Max. oil consumption per hour: 1.9 l
- Thermostat: integrated
- Fuel supply: fuel pump
- Chimney connection Ø: 120 mm
- Noise level (distance 1 m): 79 dB (A)
- Tank capacity: 24 l
- Dimensions L x W x H: 840 x 450 x 695 (mm)
- Weight: 22.5 kg
Scope of delivery
- In the box
