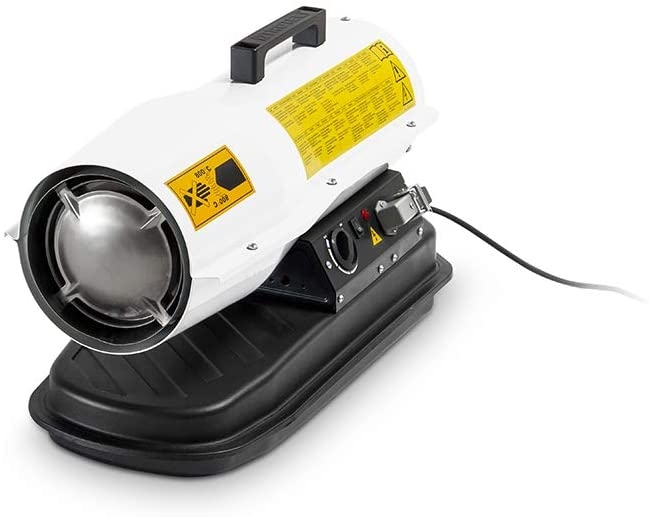

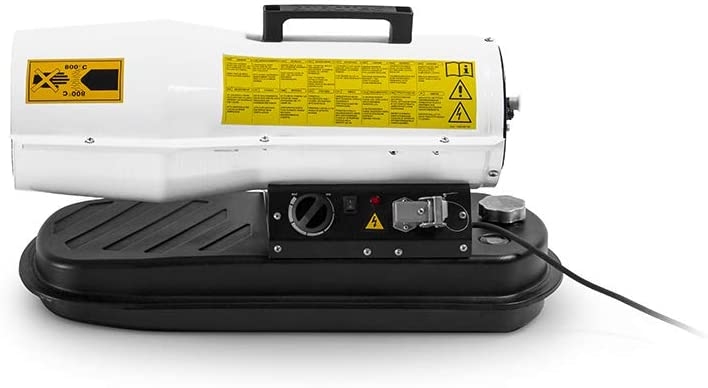

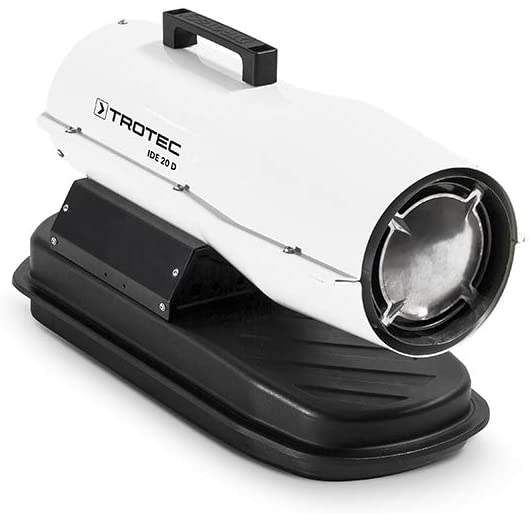

Trotec 1430000050 IDE 20 D Direct-fired Heater 20 kW
Description
The IDE 20 D direct-fired oil heater is a budget-friendly solution with solid technology for many typical standard heating tasks providing direct heat on-site.
- Thanks to its wear-resistant housing made of double-lacquered material, this oil heater is ideally prepared for outdoor heating applications and, thanks to the integrated thermostat, can be used fully automatically for heating and drying on outdoor construction sites, in agricultural areas, or in well-ventilated storage areas.
- The level of the IDE 20 D's integrated fuel tank can be read at any time via the standard-mounted level indicator.
- An external thermostat is also available as an option. accessory, which can also measure the temperature at a heating point up to 25 meters away from the oil heater fan.
Here are some practical benefits at a glance:
- Particularly cost-effective solution for standard oil heaters
- Integrated fuel tank with level indicator
- Electronic flame arrestor
- Overheating protection
- Stainless steel combustion chamber
- Integrated thermostat
- Connection for external thermostat
Technical specifications
- Heating type: direct
- Air volume: 550 m³/h
- Nominal heat output: 20 kW (17,200 kcal)
- Temperature rise ΔT: 140°C
- Connection voltage: 230 V / 50 Hz
- Current consumption: 0.71 A
- Max. oil consumption per hour: 1.9 l
- Thermostat: integrated
- Fuel supply: compressor
- Noise level (distance 1 m): 76 dB (A)
- Tank capacity: 12 l

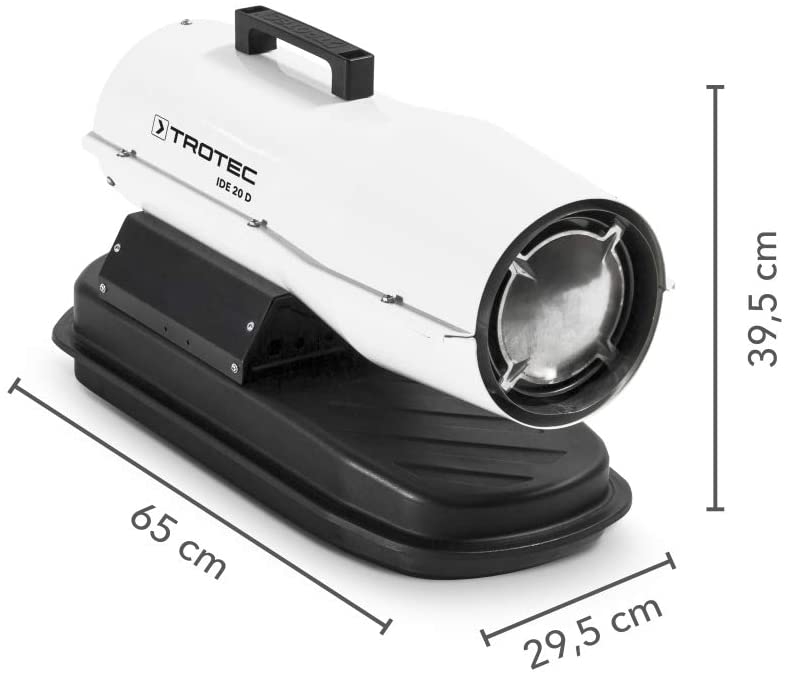

- Dimensions L x W x H: 265 x 650 x 395 mm
- Weight: 10kg
Scope of delivery
- In the box
