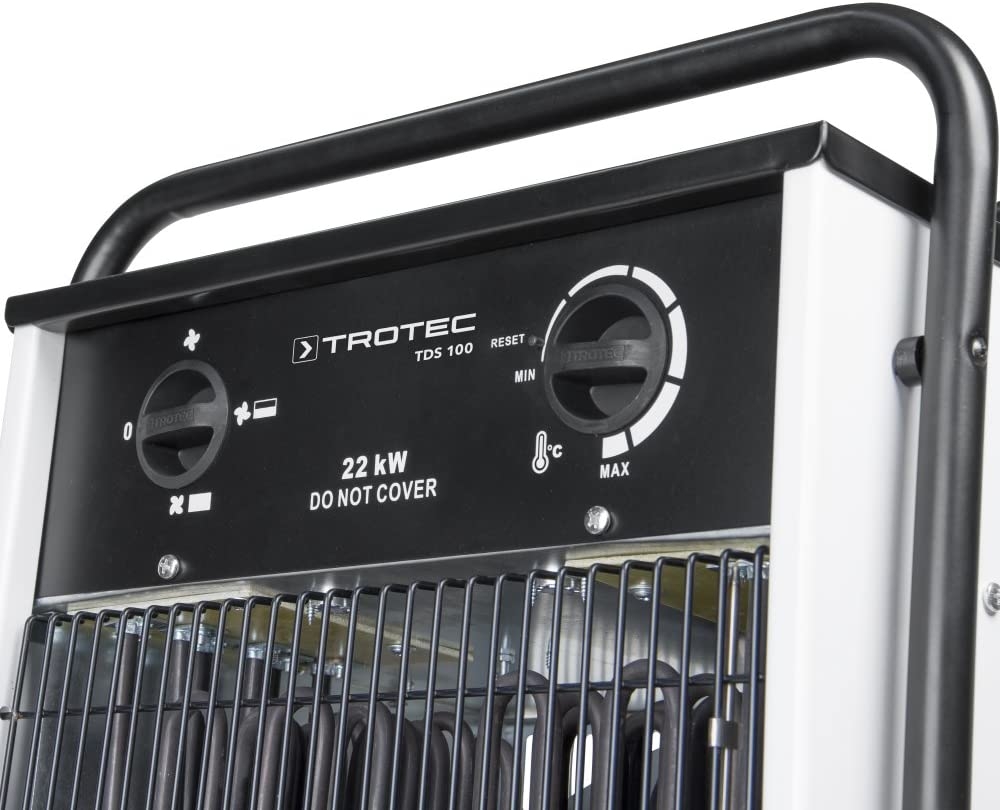

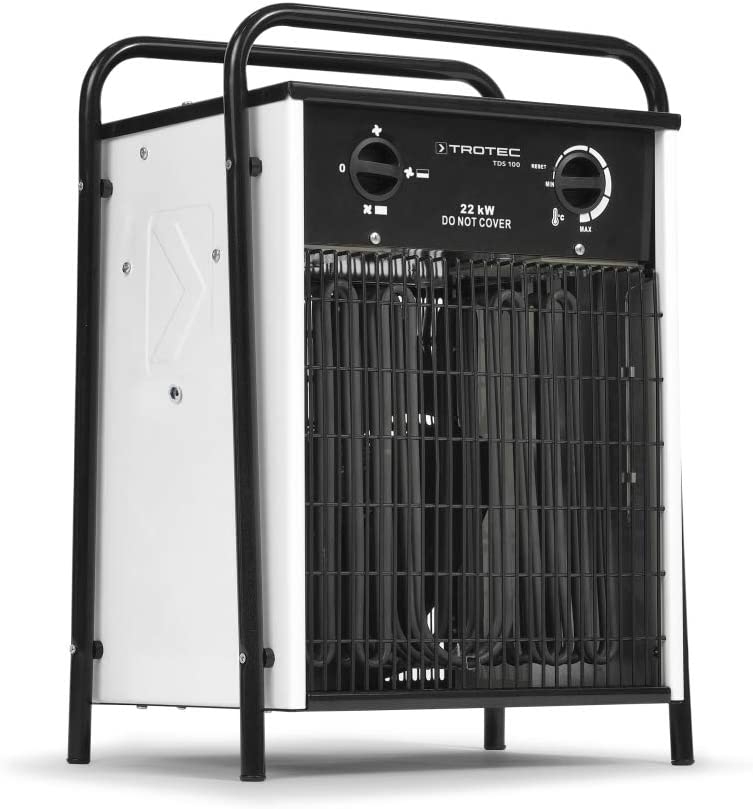

Trotec 1410000030 TDS 100 Electric Heater 22.0 kW 400 volts
Description
Our warmest recommendation for heavy heating tasks
- Thanks to its 22 kW heating output, this powerful electric heater has comfortable capacity reserves even in larger spaces and is therefore particularly suitable for the professional heating of homes or warehouses.
- And because our logo is applied in relief on the outside, we have also added striking extras on the inside
- Because it is precisely the small details that make the big difference compared to conventional standard electric air heaters.
- In addition to standard equipment elements such as overheat protection or a fan motor equipped with thermal protection, which can also be used in fan mode without the heating function, the TDS has The 100 electric air heater also comes with practical equipment, such as a trapezoidal mounting bracket on which the electric air heater can be stacked multiple times. Naturally, thermostat control is also part of the standard equipment, allowing the generated warm air to be set steplessly to the exact desired temperature.
Practical benefits
100% TROTEC - development, design, production
- Multi-level temperature control
- Integrated thermostat for constant warm airflow
- Overheating protection
- Fan motor with thermal protection
- Condensation-free heat - no oxygen consumption - therefore ideal for indoor heating
- Wall or ceiling mounting possible - bracket is available as an accessory
- fan function
- Stackable to save space
Possible application areas
- construction container
- garages
- gastronomy
- greenhouses
- market stalls
- storage and workshops
- boat shed
- workshops
- shipbuilding
- and much more..
Technical specifications
- Heat output stage 1: fan only
- Heat output level 2: 11 kW
- Heating output stage 3: 22 kW (max. 18,920 kcal)
- Air volume: 1,632 m³/h
- Fan speeds: 1
- Power consumption: 32 A
- Connection voltage: 400 V / 50 Hz
- Power connection: CEE 63 A, 5-pin
- Connection cable: accessories
- Thermostat: integrated
- Mobility: portable
- Noise level: 73 dB (A)
- Overheating protection: yes
- Protection class: IP44
- Dimensions (L x W x H): 430 x 440 x 610 mm
- Weight: 20.2 kg
Scope of delivery
- In box
