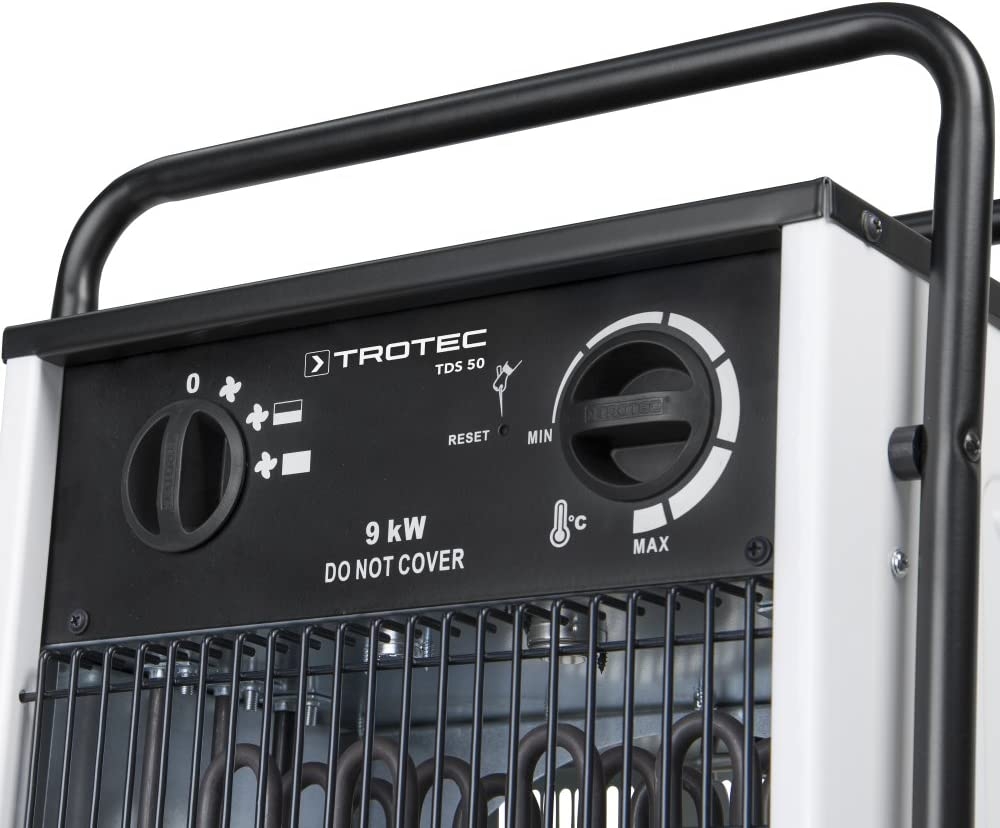

Trotec 1410000020 TDS 50 Electric Heater 9.0 kW 400 volts
Description
Unlike direct-fired gas or oil heaters, the electric air heaters of the TDS series consume no oxygen and produce no combustion fumes, allowing the units to be used virtually anywhere.
- The electric heaters are particularly suitable for temperature control of unheated interiors.
- The option to hang it on the wall or mount it under the ceiling opens up a wide range of different application areas, for example for heating construction containers, market stalls, greenhouses, small halls, garages, workshops, boathouses or for assembly work.
- Thanks to the integrated thermostat control, the generated warm air flow can be can be infinitely adjusted to the desired temperature.
- The TDS 50 can be used in fan mode without the heating function and features multi-stage power control to regulate the heating power as needed for optimal temperature regulation.
- Thanks to the trapezoidal mounting bracket, the TDS 50 electric heater can be easily and safely stacked.
Practical benefits
100% TROTEC - development, design, production
- Multi-level temperature control
- Integrated thermostat for constant warm airflow
- Overheating protection
- Fan motor with thermal protection
- Condensation-free heat - no oxygen consumption - therefore ideal for indoor heating
- Wall or ceiling mounting possible - bracket available as an accessory
- Standard built-in air guidance to optimize heat dissipation (guarantees maximum efficiency)
- fan function
- Stackable to save space
Possible application areas
- construction container
- garages
- gastronomy
- greenhouses
- market stalls
- storage and workshops
- boat shed
- workshops
- shipbuilding
- and and much more..
Technical specifications
- Heat output stage 1: fan only
- Heating output stage 2: 4.5 kW
- Heat output level 3: 9 kW (max. 7,740 kcal)
- Air volume: 708 m³/h
- Fan speeds: 1
- Power consumption: 13 A
- Connection voltage: 400 V / 50 Hz
- Power connection: CEE 16 A, 5-pin
- Connection cable: accessories
- Thermostat: integrated
- Mobility: portable
- Noise level: 52 dB (A)
- Overheating protection: yes
- Protection class: IPX 4
- Dimensions (L x W x H): 283 x 355 x 515 mm
- Weight: 9.5 kg
Scope of delivery
- In box
