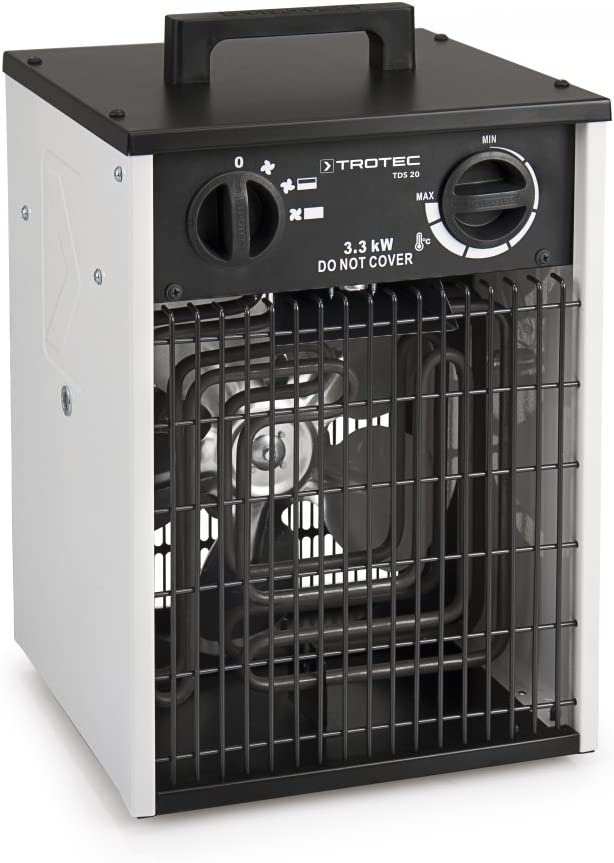

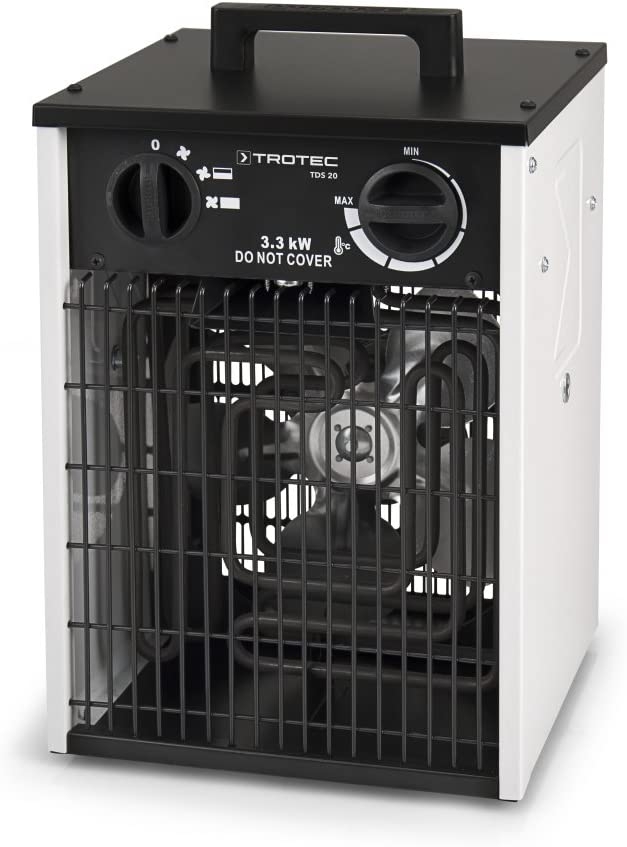

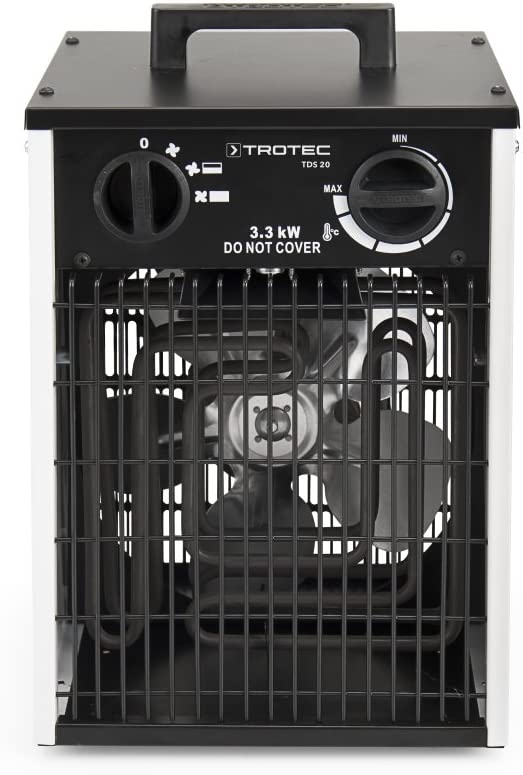

Trotec 1410000015 TDS 20 Electric Heater 3.3 kW
Description
Unlike direct-fired gas or oil heaters, the electric air heaters of the TDS series consume no oxygen and produce no combustion fumes, allowing the units to be used virtually anywhere
- The electric heaters are particularly suitable for temperature control of unheated interiors.
- The option to hang it on the wall or mount it under the ceiling opens up a wide range of different application areas, for example for heating construction containers, market stalls, greenhouses, small halls, garages, workshops, boathouses or for assembly work.
- Thanks to the integrated thermostat control, the generated warm airflow can be regulated at all TDS models can be set steplessly to the desired temperature.
- The TDS electric heaters (except TDS 10) can be used in fan mode without the heating function and feature multi-stage power control to regulate the heating power as needed for optimal temperature control.
Practical benefits
100% TROTEC - development, design, production
- Multi-level temperature control
- Integrated thermostat for constant warm airflow
- Overheating protection
10% more power compared to competing models (3.3 kW)
- Fan motor with thermal protection
- Condensation-free heat - no oxygen consumption - therefore ideal for indoor heating
- Wall or ceiling mounting possible - bracket is available as an accessory
- Standard built-in air guidance to optimize heat dissipation (guarantees maximum efficiency)
- fan function
Possible application areas
- construction container
- garages
- gastronomy
- greenhouses
- market stalls
- storage and workshops
- boat shed
- workshops
- shipbuilding
- and much more..
Technical specifications
- Heat output stage 1: fan only
- Heat output level 2: 1.65 kW
- Heat output level 3: 3.3 kW (max. 2,840 kcal)
- Air volume: 335 m³/h
- Fan speeds: 1
- Current consumption: 14.3 A
- Connection voltage: 230 V / 50 Hz
- Power connection: safety plug (CEE 7/7)
- Connection cable: integrated (length 1.35 m)
- Thermostat: integrated
- Mobility: portable
- Noise level: 46 dB (A)
- Overheating protection: yes
- Protection class: IPX 4
- Dimensions (L x W x H): 255 x 265 x 395 mm
- Weight: 5.3 kg

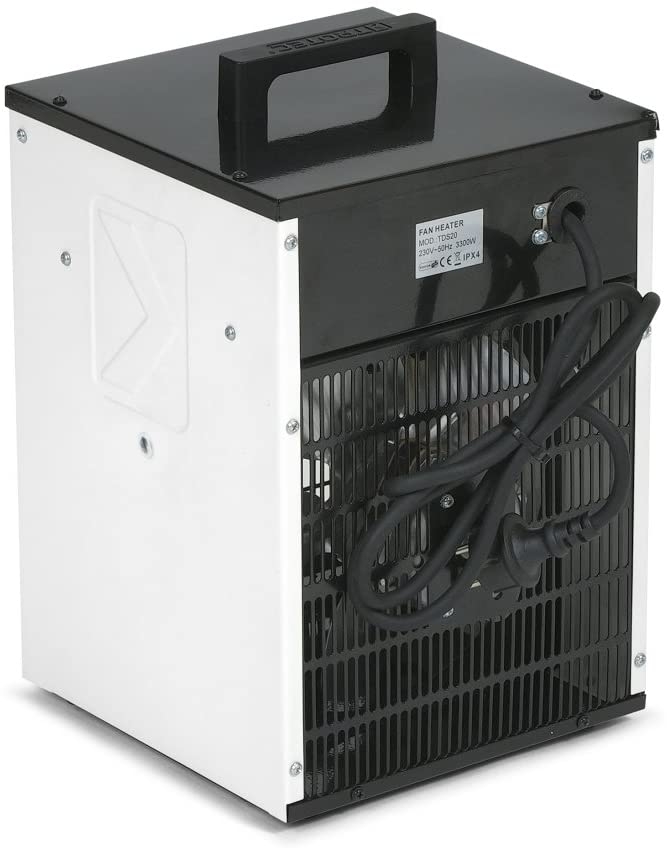

Note: The (cold) air is drawn in at the back of the electric heater, heated, and blown out again as warm air
- This increases the room temperature evenly over time
- Because a lot of air is drawn in and blown out, the blown-out air does not feel particularly warm! However, due to the high airflow, the entire room is gradually heated.
