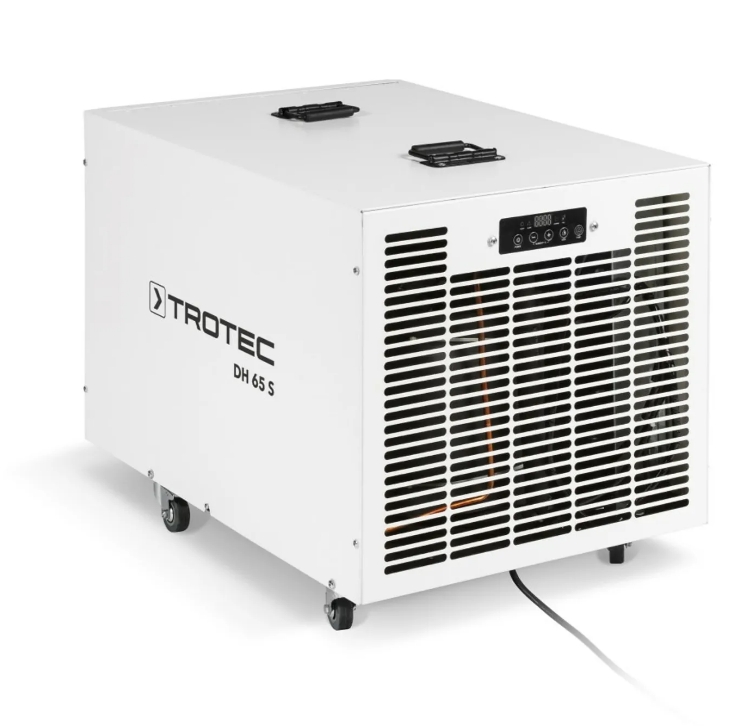

Trotec 1125000207 DH 65 S Industrial Dehumidifier 80L/24H
Description
This condenser dryer is a powerful and cost-effective dehumidification solution for variable dehumidification applications in many industrial processes or product storage.
- In addition to automatic hot gas defrosting, the DH 65 S features a fin-free aluminium tube evaporator, which enables effective dehumidification even at low humidity.
- Furthermore, both the electrical and water-carrying components of this industrial dryer have been modularly hand-finished in Germany according to European standards.
- Thus, with the DH 65 S, you have a particularly economical dehumidifier for reliable continuous drying applications
- Thanks to the stable wheels with roller stop lock, the drying device can be easily transported from one place of use to another.
- For dry-keeping operation, humidity control can be carried out either dependent on humidity via the pre-selection of the target value on the internal hygrostat or permanently independent of humidity.
- And with the practical timer function of the DH 65 S, you can program the operating time of this time-controlled dehumidifier if necessary.
Continuous dehumidification with the DH 65 S offers you these benefits:
- Prevention of mold and corrosion damage
- Prevention of condensation
- Protection against moisture damage to building materials, production facilities, and inventory
- The reliability of electronic devices enlarge
- Air drying for process optimization in industry
- Protection and preservation of valuable goods
- Reduction of unpleasant odors
- Lower heating costs thanks to optimized humidity
- Quiet and effective dehumidification
Practical benefits
- Reliable drying device with high dehumidification capacity
- Particularly cost-effective solution for typical drying applications in production or storage areas
- Aluminum tube evaporator for effective dehumidification, even at low humidity
- timer function:
- Optimal price-performance ratio
Technical specifications
- Dhumidification capacity
at 20 °C / 60% RH [l/24h] 30
at 30 °C / 80% RH [l/24h] 80 - Air volume stage max. [m³/h] 1,100
- Operating range
min. temperature [°C] 1
max. temperature [°C] 35 - Humidity min. [% RH] 35
- Humidity max. [% RH] 99
- Mains connection 220 - 240 V/50 Hz
- Nominal current consumption [A] 7.6
- Power consumption [kW] 1.48
- Required start-up phase current [A]
- Recommended fuse [A] 16
- Connection plug CEE 7/7
- Cable length [m] 7
- Refrigerant type R1234yf
- Refrigerant quantity [g] 750
- GWP factor 4
- CO2 equivalent 0.003
- Outlet side pressure [MPa] 2.5
- Suction side pressure [MPa] 0.6
- Sound values at a distance of 3 m [dB(A)] 56
- Length (without packaging) [mm] 580
- Width (without packaging) [mm] 730
- Height (without packaging
