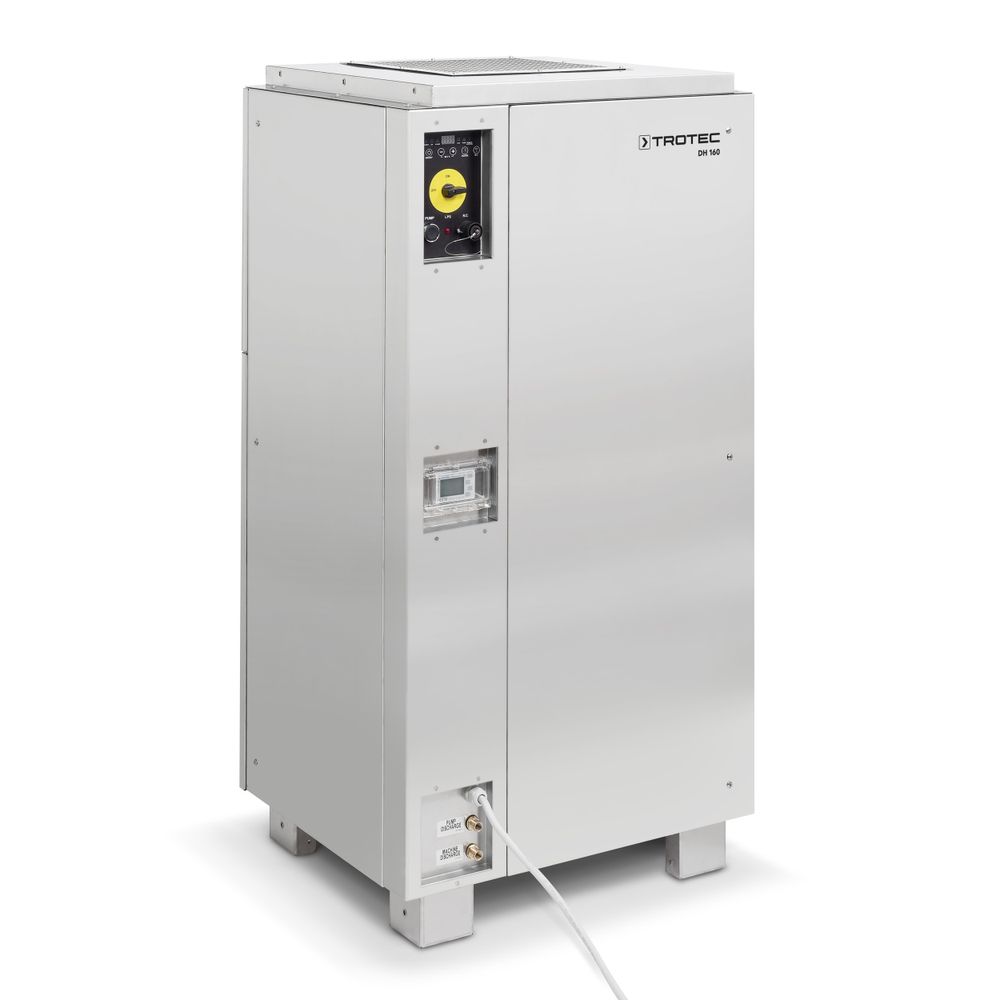

Trotec 1125000162 DH 160 BX ES Stainless Steel Industrial Dehumidifier
Description
XXL DRYING
- The DH 160 BX ES industrial condenser dryer with a stainless steel housing is characterized by high dehumidification capacity, reliable continuous operation characteristics, and practical equipment options
- Designed for freestanding use, the device can also be installed on the wall or under the ceiling and connected to existing air duct systems without problems if the preparation is carried out on-site.
Stainless steel version
- Ideal for use in rooms with special hygiene requirements or particularly reactive air environments
- The stainless steel casing is easy to clean and made of AISI 316 material, which is particularly resistant to various chemical solutions such as sulfuric acid and iodides.
- Furthermore, AISI 316 has very high resistance to corrosion, especially against chlorides.
- The DH 160 BX ES dehumidifier features a smooth-running scroll compressor for constant, pulsation-free pressure for energy-efficient cooling.
- In combination with its self-regulating EC centrifugal fan, this robust industrial dryer ensures consistently high dehumidification capacity during continuous operation, even at low temperatures.
Easy installation and commissioning
- The DH 160 BX ES is an effective dehumidification solution that can be used immediately. installed without additional construction work and can also be retrofitted to support existing air handling systems
- Simple setup, connect to the power grid and lay the condensate drain hose - done.
- Unlike competing models in the same class, the DH 160 BX ES is equipped as standard with a built-in condensate pump, allowing the condensate to be discharged to higher areas without any problems.
HIGH PROFITABILITY
- In high-volume recirculation mode, this industrial dryer removes the most moisture from the air according to the target moisture content pre-selected by the hygrostat
- The dual-flow, continuously self-regulating EC centrifugal fan and the powerful compression cooling system of the DH 160 BX ES ensure high efficiency.
- The dry air supplied to the room is simultaneously heated by the process, so that the use of conventional heating and ventilation energy can be noticeably reduced
- Thanks to an efficiency (COP) of 2.9, the DH 160 BX ES can generate 2.9 kW of heat output from every kilowatt of energy consumed during air dehumidification.
- Furthermore, the professional hot gas defrosting of the DH 160 BX ES operates with automatically controlled cycle reversal
- In this process, the refrigerant circuit is briefly reversed via a four-way valve to keep the evaporator ice-free, so that the previously cold evaporator now becomes a hot condenser and vice versa
- Compared to bypass hot gas defrosting, cycle reversal results in faster defrosting, thereby efficiency is improved and thus the net OEE of this dehumidifier is increased.
VARIOUS APPLICATIONS
- Without effective control, humidity can lead to a variety of problems in production processes and in inventory, furniture, or stored goods
- Optimal humidity control not only protects against rust, rot, material degradation, or reduced quality
