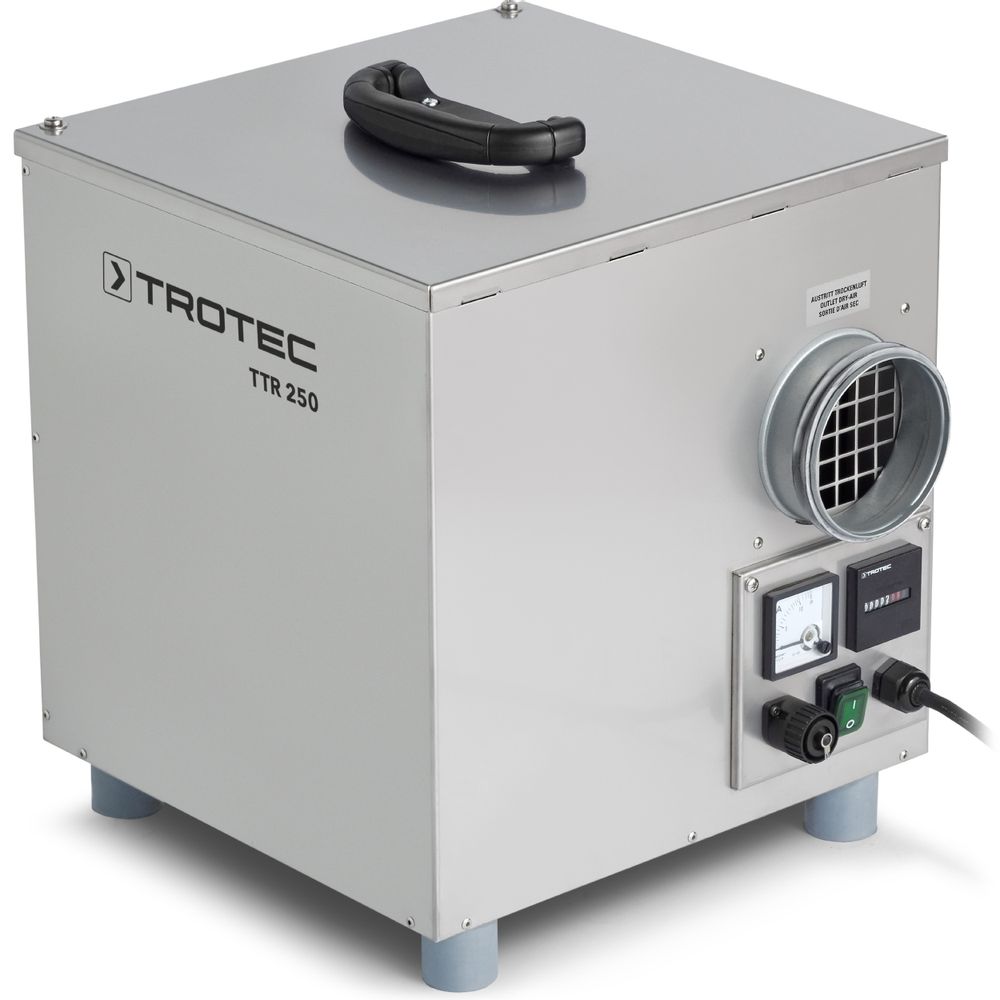

Trotec 1110000130 TTR 250 Adsorption Dryer
Description
Its robust and corrosion-resistant housing makes the TTR 250 a reliable partner when it comes to dehumidification, even under harsh conditions.
- A self-regulating electric regeneration air heater is installed at the factory
- This allows the adsorption dryer to adjust its power consumption to the regeneration air volume and the air inlet temperature.
- Adsorption dryers such as the TTR 250 are not only developed in Germany according to the highest quality standards, they are also manufactured in Germany.
- A standard 4-pole terminal for external switching enables flexible remote switching of the TTR 250 via a optional hygrostat, timer or other external switching equipment with a Tuchel plug connection.
The TTR 250 adsorption dryer is a robust, high-quality dehumidifier made in Germany
Technical specifications
process air
- Air volume: 250 m³/h
- external
- Pressure: 100 Pa
- Dehumidification: 1.1 kg/h
regeneration air
- Air volume: 50 m³/h
- external
- Pressure: 100 Pa
electrical connection
- Total: 1.3 kW
- Heating: 1.1kW
- Motor: 0.2kw
- Pre-fuse: 16 A
Workspace
- Maximum humidity: 100% r
- F
- Temperature: -20°C to +35°C
Scope of delivery
- In box
