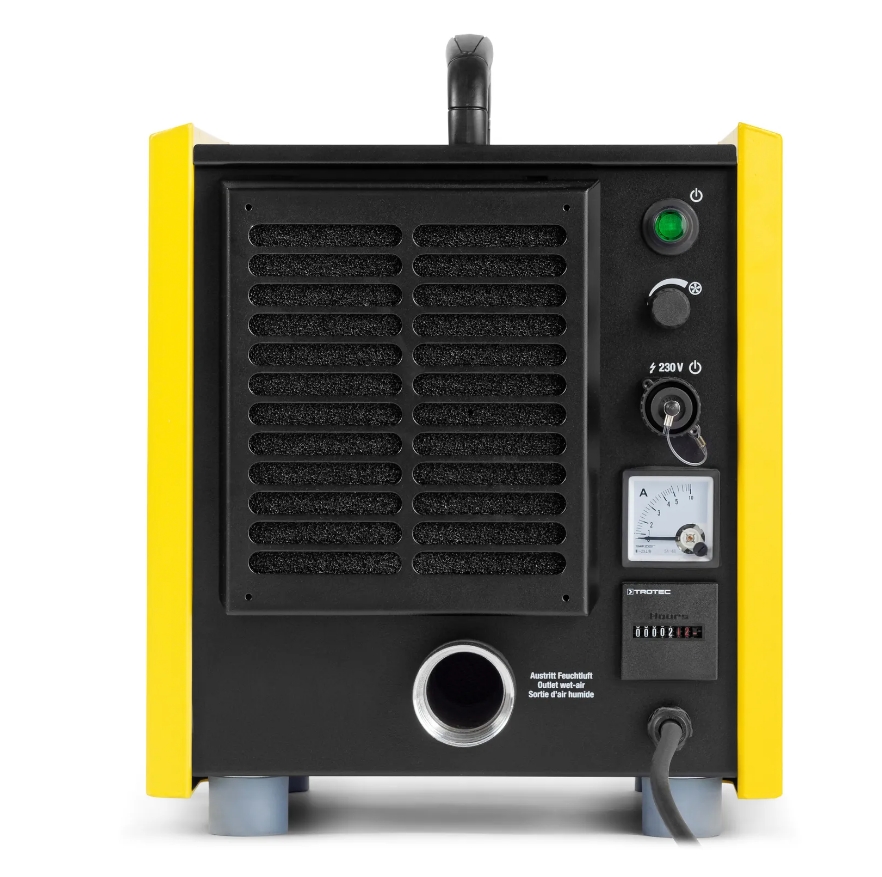

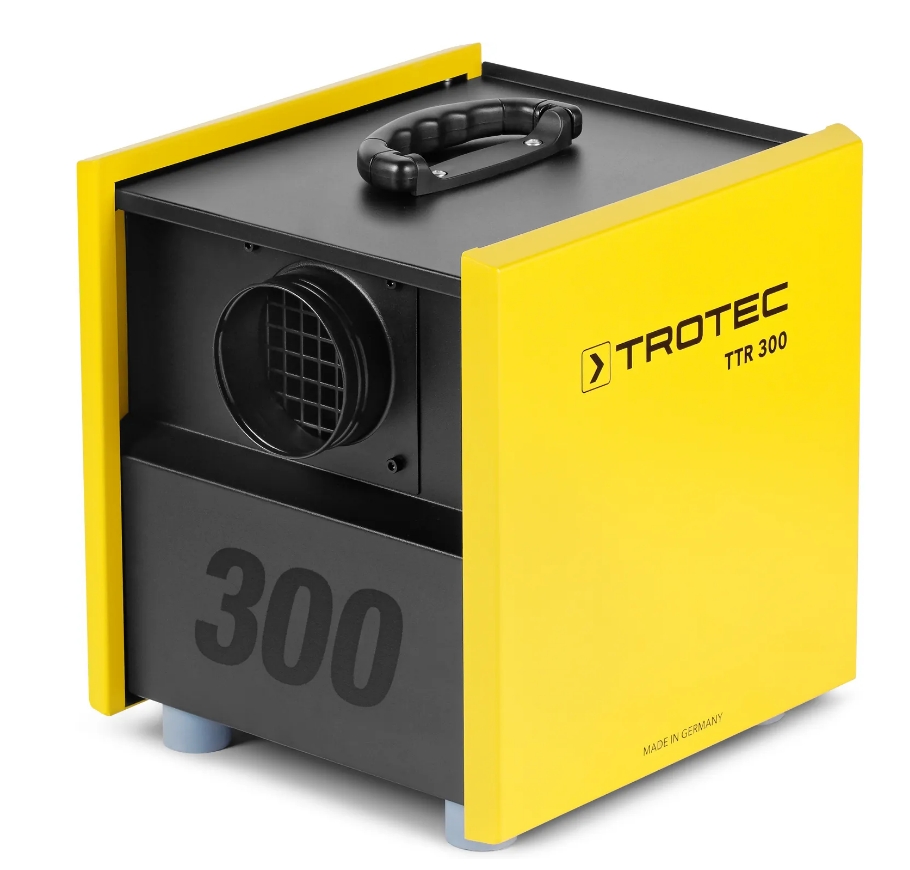

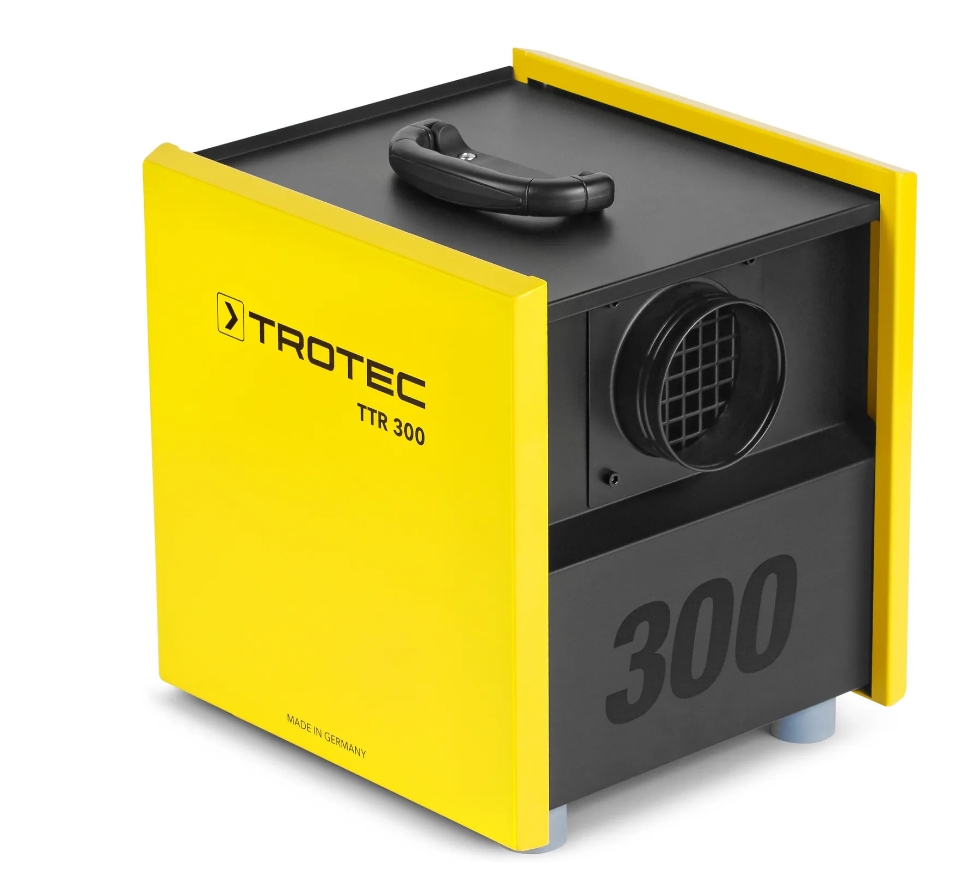

Trotec 1110000015 TTR 300 Adsorption Dehumidifier
Description
Thanks to its high dehumidification capacity, even at low dew points, the high-quality TTR 300 dehumidifier is a flexible drying device for humidity control in production and storage areas, or for protection against corrosion and condensation in moisture-sensitive environments or installations.
- With the TTR 300's advanced electronic Monoventic air volume control, the required amount of dry air can be adjusted steplessly as needed.
- In this way, the dehumidification capacity, and consequently the power consumption and noise level of the TTR 300, can be variably defined at any time, for example in smaller rooms or for applications where only small amounts of air are required.
- The The TTR 300 is also ideal for installation in suspended ceilings. Thanks to the wide range of TTR system accessories, hose or pipe connections can also be connected to the regeneration air inlet of the TTR 300 for spatially separated air supply, or various Z-Line filters of different filter classes can be used with the dehumidifier. All filters can be replaced quickly and easily without having to open the device. With the TTR 300, you benefit from a professional adsorption dehumidifier of original Trotec production, developed and manufactured in Germany according to the highest quality standards. With a standard DIN socket for external switching, the TTR 300 can be controlled via an optional hygrostat, timer, or other external switching equipment with a suitable DIN plug. The adsorption dehumidifier In addition to integrated heat recovery, the TTR 300 includes a standard self-regulating electric regeneration air heater with thermistor elements (PTC), where power consumption depends on the air inlet temperature and the regeneration air volume.
- The advantage of this solution lies in optimal performance adjustment on the one hand, and on the other hand, overheating is not possible, so no safety thermostats are required.
Practical benefits of the TTR 300 at a glance
- Air volume - infinitely adjustable
- Quick and easy filter change
- Extremely maintenance- and service-friendly design
- Suitable for installations in suspended ceilings
- Sheet steel housing, galvanized and powder coated
- Stackable to save space
- Lightweight and handy
- High-quality premium components
- Practical-optimized German industrial design - protected design
- Professional quality "Made in Germany"
- Hygrostat connection
- Durable, robust, and reliable
Technical specifications
- Operating range: 0 to 100% RH / -15 °C to +35 °C
- Dehumidification capacity: approx. 0.7 kg/h
- Dry air volume: 80 - 280 m³/h
- Nominal air volume/ext
- Pressure: 200 m³/h / 100 Pa
- regeneration air / ext
- Pressure: 30 m³/h / 50 Pa
- Dry air connection: Ø 100 mm
- Wet air connection: Ø 50 mm
- Electrical connection: 230V - 50/60 Hz - approx. 0.9 kW
- Dimensions (LxWxH): approx. 355 x 310 x 355 mm
- Weight: approx. 12 kg
