Topcon RL-200-2S + LS-80X Construction Laser with Dual Slope
Special Features
- RL-200 Series The revolutionary RL-200 Series coding system from Topcon offers the highest repeatability, 7 arc seconds, of all other lasers. No one even comes close. Setup after setup, time after time, you are always exactly right.
- Choose from two models, RL-200 1S with single slope or RL-200 2S with dual slope. The RL-200 1S offers single slopes from -5% to +25%. The RL-200 2S offers dual slopes up to ±10% in the X-axis, or up to a leading -5 to +25% in the Y-axis. Operate the RL-200 2S - remotely. When the RL-200 2S is operating, the RC-400 displays all operating information up to 300 m away. Change the gradient, select menu settings, check the operational status, and even check the battery life, all without touching the laser.
- Fully automatic dual slope: Save time and increase accuracy for complex slope work.
- Extremely large working range: Ideal for large construction sites, foundations, or infrastructure projects.
- Ease of use: Level at the touch of a button and easily adjustable slope functions via remote control.
- Reliability: Thanks to automatic height monitoring, errors caused by vibrations or movement are avoided.
- Robust and weather-resistant: Suitable for intensive use on the construction site, even in bad weather.
Strong points
- 7 arc-second accuracy
- Large slope range (up to 25% slope) without slope blocks
- Battery life up to 100 hours
- Range up to 1100 m
- Full-function remote control (RL-200 2S)
Benefits
- Fully automatic dual slope laser
- X-axis: ±10%
- Y-axis: –5% to +25%
- Accuracy: ±7 arc seconds
- Working range: up to 1100 meters (diameter)
- Leveling range: ±5° motorized self-leveling
- Slope setting: manual or via remote control
- Rotation speed: adjustable to 300 / 600 / 900 rpm
Applications
- Road construction and asphalt paving with slope
- Hydraulic engineering and drainage applications
- Earthmoving and foundation work
- Construction of sports fields or sloped terrains
- Construction of parking lots or industrial floors
- Precision work in civil engineering (Ground, Road and Water Engineering)
Technical data
- Accuracy 0.3 mm / 10 meters
- Working range Ø (receiver) 1100 meters
- Range (receiver) 550 meters
- Visibility range (indoor) 0 meters
- Self-leveling Yes
- Leveling range ± 10°
- Mechanism Servomotors
- Slope 10% in X-axis and -5% to +25% in Y-axis
- Slope mechanism Fully Automatic
- Slope input Digital
- Total slope 15% (total of the two axes)
- Plumb line No
- Rotation speed 300/600/900 rpm
- Laser diode Class 2, 635nm, Red
- Protection IP66
- Operating time 90 hours
- Power supply NiMH battery
- Rechargeable Yes
- Mains connection Yes
- Operating temperature -20°C to +50°C
- Weight 4.0 kg
- Connection 5/8"
- Dimensions LxWxH 217 x 168 x 253 mm
- Warranty 5 Years

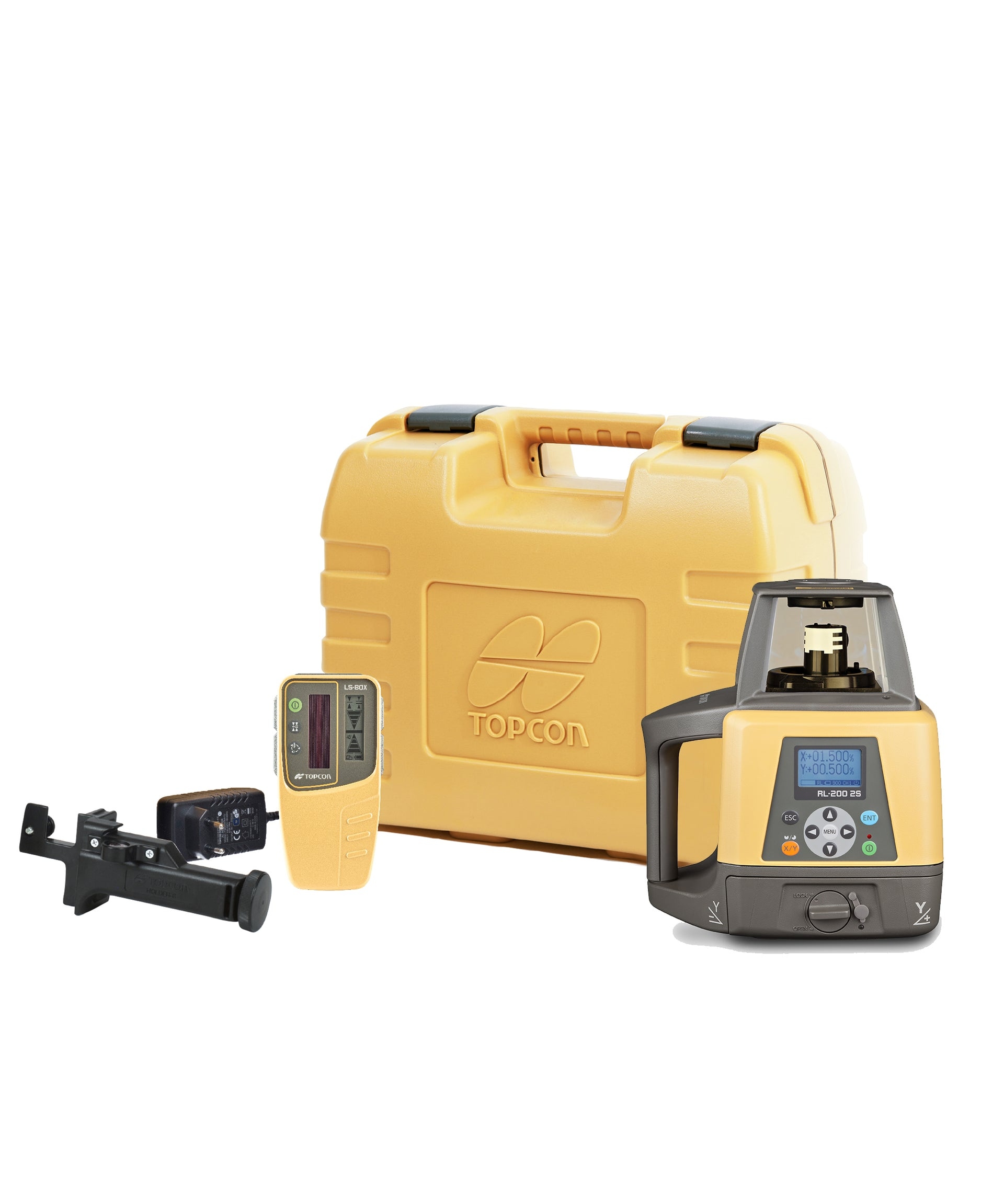

Scope of delivery
- Topcon RL 200 2S Slope Laser
- Topcon LS-80X handheld receiver
- Topcon RC-400 Remote Control
- TOP Construction Laser Calibration Report
- Case
- NiMH Battery
- Charger
- 5-year warranty
