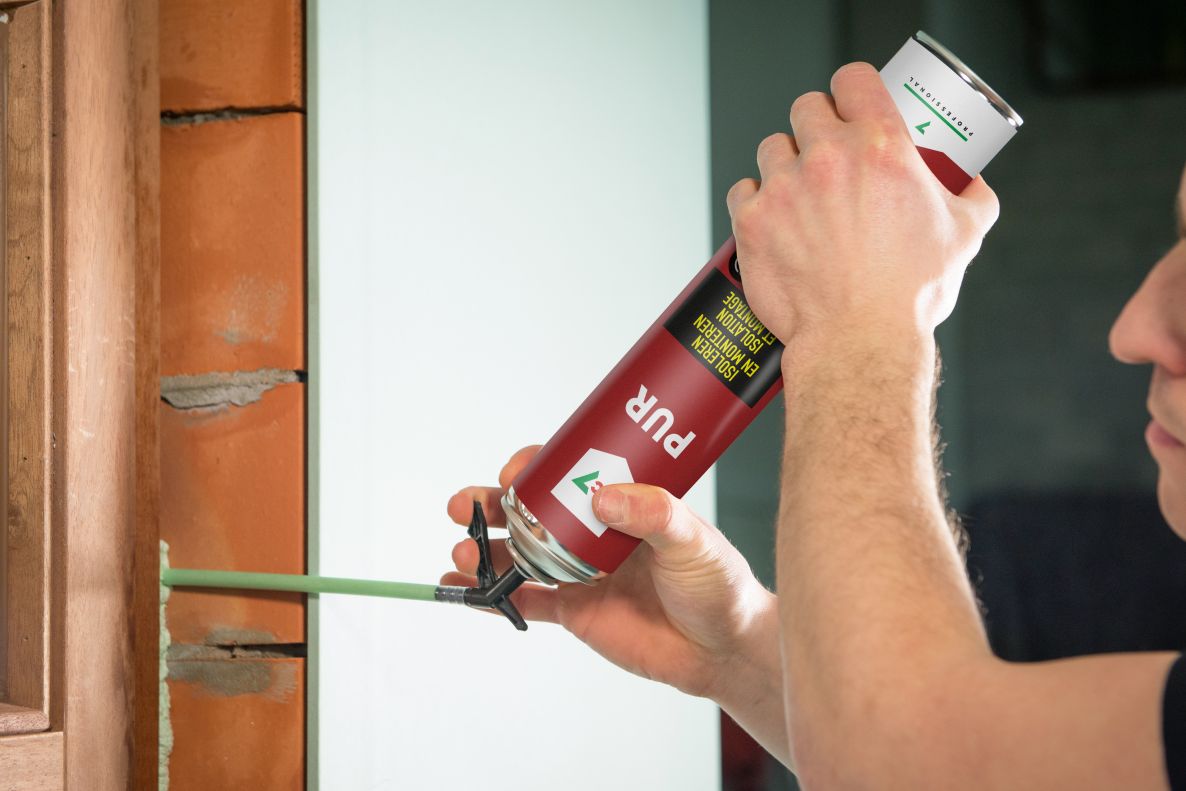

Tec7 670001000 PUR Insulation and Mounting Foam 750ml
Special features
- Applicable at 360°.
- Minimal expansion pressure
- Usable at -10°C to +30°C
- Usable at -10°C to +30°C.
- Rot-resistant.
- Long shelf life, even when opened.
- Ready-to-use PUR foam for mounting, filling, sealing, insulation, prevention of thermal and sound bridges, …
Technical data
- Raw material basis: polyurethane.
- Skin formation (FEICA TM 1014): 8 minutes.
- Cuttable (FEICA TM 1005): 45 min.
- Curing time: 90 minutes for 30 mm thickness.
- Density: ± 25 g/l.
- Yield in free space (FEICA TM 1003): ± 32 litres of foam.
- Yield in joint (FEICA TM 1002): ± 24 metres of foam (joint size 2 x 5 cm).
- Shrinkage (FEICA TM 1004): 4%.
- Post-expansion (FEICA TM 1010): 115 %.
- Cell structure: ± 70% closed cells.
- Fire classification (DIN 4102): B3.
- Compressive strength: ± 2.0 N/cm².
- Shear strength: ± 5 N/cm².
- Water absorption (EN1609): 1% volume.
- Thermal conductivity (DIN 52612): 37 mW/mK
- Acoustic insulation (EN ISO 717-1): 58 dB.
- Transport temperature: down to -20°C.
- Product processing temperature: minimum +5°C.
- Substrate processing temperature: -10°C to +30°C.
- Temperature resistance after curing: -40°C to +90°C.
- Shelf life: 12 months in unopened packaging, store in a cool, dry place and upright at 20°C.
- Safety precautions: Please consult the safety data sheet.
