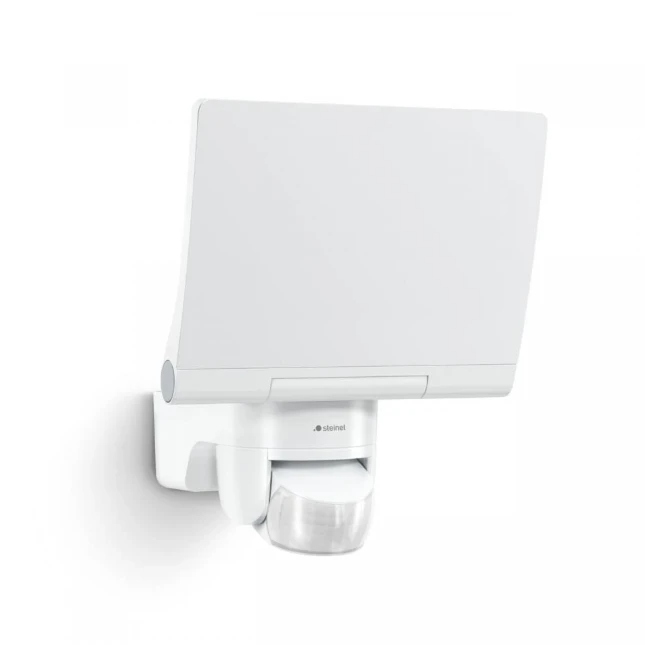

Steinel 030070 LED Floodlight XLED Home 2 XL white
Special Features
- Big Brother.
- Daylight-like light for large areas.
- For anyone who loves extra light or needs to illuminate larger areas, the powerful sensor outdoor spotlight XLED home 2 XL is the first choice.
- New, highly efficient LED lights ensure perfect illumination of driveways, courtyards, and gardens.
- And that with an energy consumption of only 20 W.
- The XLED home 2 XL is also a true motion marvel.
- The fully rotatable LED panel guarantees optimal flexibility.
- In combination with the opal disc, the 3000 K spotlight ensures optimal lighting conditions around the house.
Technical data
- Type Outdoor lighting
- Net weight (kg) 0.68
- Lamp type LED non-replaceable
- Voltage type AC
- Light distribution Symmetrical
- Number of poles 2
- With light source Yes
- Minimum Nom. voltage (V) 220
- Maximum Nom. Voltage (V) 240
- Minimum Suitable for lamp power (W) 20
- Maximum Suitable for lamp power (W) 20
- Protection class according to IEC 61140 II
- Suitable for ceiling mounting No
- Connection type Other
- Impact resistance IK03
- Cover material Opal plastic
- Adjustability Rotatable and swiveling
- Ballast LED control Current-controlled
- Height/depth (mm) 240
- Ballast included Yes
- Suitable for recessed mounting No
- Suitable for wall mounting Yes
- Light color White
- Light output Direct
- Maximum Color temperature (K) 3000
- Minimum Color temperature (K) 3000
- Max. system power (W) 20
- Suitable for surface mounting Yes
- Max. Mounting height (m) 4
- With motion sensor Yes
- With light sensor Yes
- Power factor 0.88
- Light distributor None
- Dimmable 0-10 V No
- Suitable for pendant suspension No
- Wiring type Suitable for through-wiring
- Dimmable 1-10 V No
- Dimmable DALI No
- Dimmable DSI No
- Color rendering index 80-89
- Minimum luminous flux (lm) 2120
- Maximum luminous flux (lm) 2120
- Dimmable DMX No
- Lamp holder Other
- Dimmable with potentiometer (integrated) No
- Dimmable LineSwitch No
- Dimming Manufacturer-specific No
- Dimmable Touch and Dim No
- Dimmable mains modulation No
- Dimmable with push-button No
- Dimmable phase cut-off No
- Minimum connectable conductor cross-section (mm²) 0.5
- Maximum connectable conductor cross-section (mm²) 0.5
- Suitable for truss mounting No
- Luminaire with limited surface temperature "D-mark" according to EN 60598-2-24 No
- Effective luminous flux according to IEC 62722-2-1 (lm) 2120
- Dimmable phase cut-on No
- Color consistency (McAdam ellipse) SDCM3
- Suitable for pedestal/floor mounting No
- Luminaire cover with thermal insulation material possible No
- Programmable dimming No
- Suitable for track mounting No
- Minimum Response Brightness (lx) 2
- Maximum Response Brightness (lx) 2000
- Dimmable RF No
- Suitable for display work according to EN 12464-1 No
- Max. lateral range (m) 10
- Total harmonic distortion (THD) 54
- Dimmable Sine Wave Reduction No
- Max. Frontal range (m) 4
- Suitable for clamp mounting No
- Reflector None
- Beam angle >80° - Extremely wide beam
- Dimmable ZigbeeNo
- Photobiological safety according to EN 62471 Other
- Not dimmable Yes
- Minimum Nominal ambient temperature according to IEC62722-2-1 (°C) -20
- Maximum Nominal ambient temperature according to IEC62722-2-1 (°C) 40
- Suitable for outdoor use Yes
- Min. run-on time (s) 8
- Max. Run-on time (min) 35
- Specific luminous flux luminaire (lm/W) 106
- Glow wire test according to IEC 60695-2-11 650 °C - 30 s
- Suitable for low-voltage cable system No
- Horizontal range angle (°) 140
- Housing colour White
- Housing material Plastic
- Version Outdoor luminaire
- Length (mm) 161
- Width (mm) 180
- Sensor type Passive infrared
- Dimmable No
- Protection degree (IP) IP44
