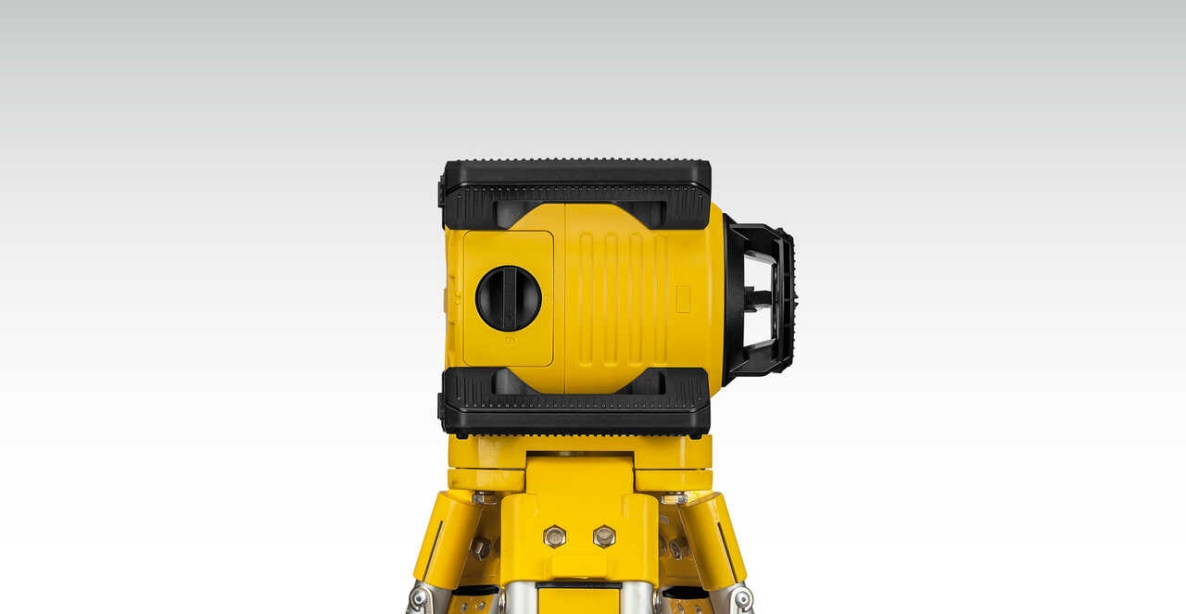

Stabila 19157 Rotating laser LAR 160 Red, 5-piece set
Is your task horizontal and vertical leveling on large outdoor projects? Do you need to work accurately and avoid costly measurement errors and rework? Then the LAR 160 from STABILA is the right rotary laser for you. Quickly ready for use, easy to operate, and, in combination with the receiver, can also be used over long distances. All in all, a high-quality product that withstands all weather conditions and delivers accurate results – exactly what you need.
Special Features
- Fully automatic, motor-driven rotary laser – high leveling accuracy ± 0.1 mm/m, fast self-leveling within 20 seconds.
- Four laser functions for versatile use – horizontal and vertical rotation, plumb function, and right angle (90°) for vertical use.

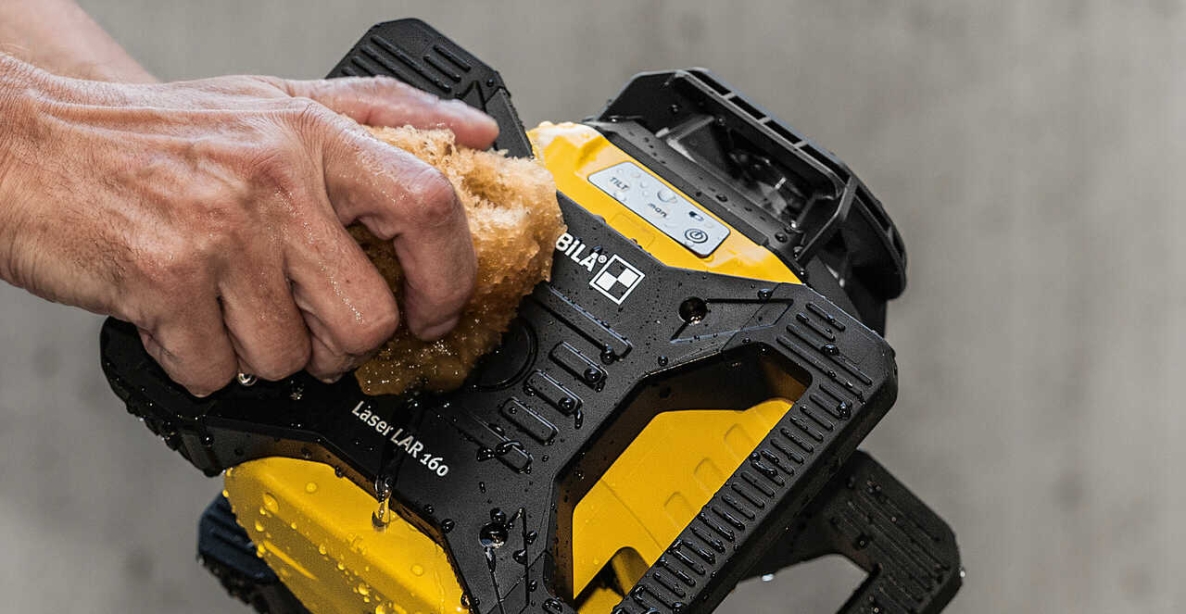

- Protection class IP 65 – dust and waterproof.
- Shock-absorbing STABILA softgrip cover protects against impacts – the laser optics are also protected by the stable housing head.
- Easy operation via three control buttons – on/off, tilt mode, manual mode.
- Battery tray – easy to replace, even directly on the tripod.
- Large working area with the REC 160 R/G set Receiver - up to 600 m diameter.
- Two 5/8” threaded connections integrated into the housing for horizontal and vertical use on a tripod.
- Guide plate with magnetic holder and reticle.
- Laser glasses - increases the visibility of the laser beam by 50%.
- Sturdy carrying case for easy transport and safe storage.
Application examples
- For masonry - laying the chimney cap.
- In reinforced concrete structures - concreting foundations or installing facing plates.
- In metal construction - aligning and placing steel beams in hall construction.
- In gardening and landscape architecture - creating gardens, paths, and paved areas.
- For carpentry or timber construction - fastening of cladding.
- In civil engineering and pipeline construction - pipelines set up.
Technical data
- Laser class 2
- current< 1 mW
- Laser wavelength: 635 nm
- Self-leveling range +/-5 °
- Levelling accuracy +/-0.10 mm/m
- Receiver setting working area Ø 600 m
- Operating time 40 hours
- Battery type NS.
- Protection class IP65
- Tripod mount 5/8"
Scope of delivery
- Rotary laser LAR 160
- Receiver REC 160 RG
- Laser glasses
- Guide plate
- Carrying bag, 2 x D 1.5 V
- Batteries, 2 x AA 1.5 V
- Batteries
