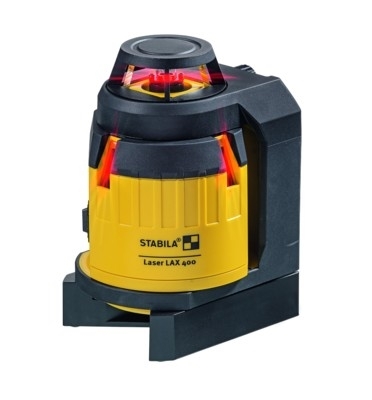

Stabila 18702 LAX400 Cross-line Laser
Special features
- One horizontal 360° line for marking, aligning, and leveling throughout the entire room.
- MANUAL ALIGNMENT: Two vertical lines form a 90° angle. Fine adjustment is done using the rotary knob on the housing. The laser lines can be rotated to a target point without losing the position of the plumb point. Ideal for accurately positioning partition walls with U-profiles.
- Downward-facing plumb line – clearly visible thanks to the extendable foot. Towards the top, the two vertical lines intersect exactly above the plumb point.
- Ready for immediate use – fast self-leveling thanks to construction site-suitable pendulum technology.
- Optimal for work directly on the laser lines. For transferring the floor layout to the ceiling. For fast and accurate plumbing.
- Battery-saving – separate switching on and off of the laser lines possible.
- Particularly bright, fine, and precise laser lines. Visible line range 20 m.
- Variable application possibilities: 1. use directly on the floor – also on U-profiles; 2. mounting on a tripod (5⁄8´™ thread); 3. with the rare earth magnet and the V-groove on metal objects or on the wall mount; 4. to the metal eyelets using a strap.
- Protection class IP 54 (protection against dust ingress, protection against splashing water from all directions).
- Design suitable for construction sites: 1. housing with stable aluminium head to protect the horizontal laser optics; 2. parking position to protect the vertical laser optics against dust and scratches caused by rotation in the U-shaped holder; 3. pendulum lock protects the laser during transport; 4. shock-absorbing STABILA softgrip casing.
- Thanks to the pulsed laser lines, the LAX400 can also be used over long distances – both indoors and outdoors – in combination with an optionally available REC 210 Line receiver.
Technical Specifications
- Protection class: IP 54
- Line straightness ± 0.2 mm/m
- Plumb beam accuracy (top/bottom) ± 0.3 mm/m
- Battery runtime: 10 h
- Self-leveling range: ± 4.0 °
- Power supply: 4x AA, 1.5 V
- Levelling accuracy: ±0.3 mm/m
- Visible laser wavelength: 635 nm
- Power: < 1 mW
- Measuring range: 20 m (indoors under typical conditions)
- Laser class: 2

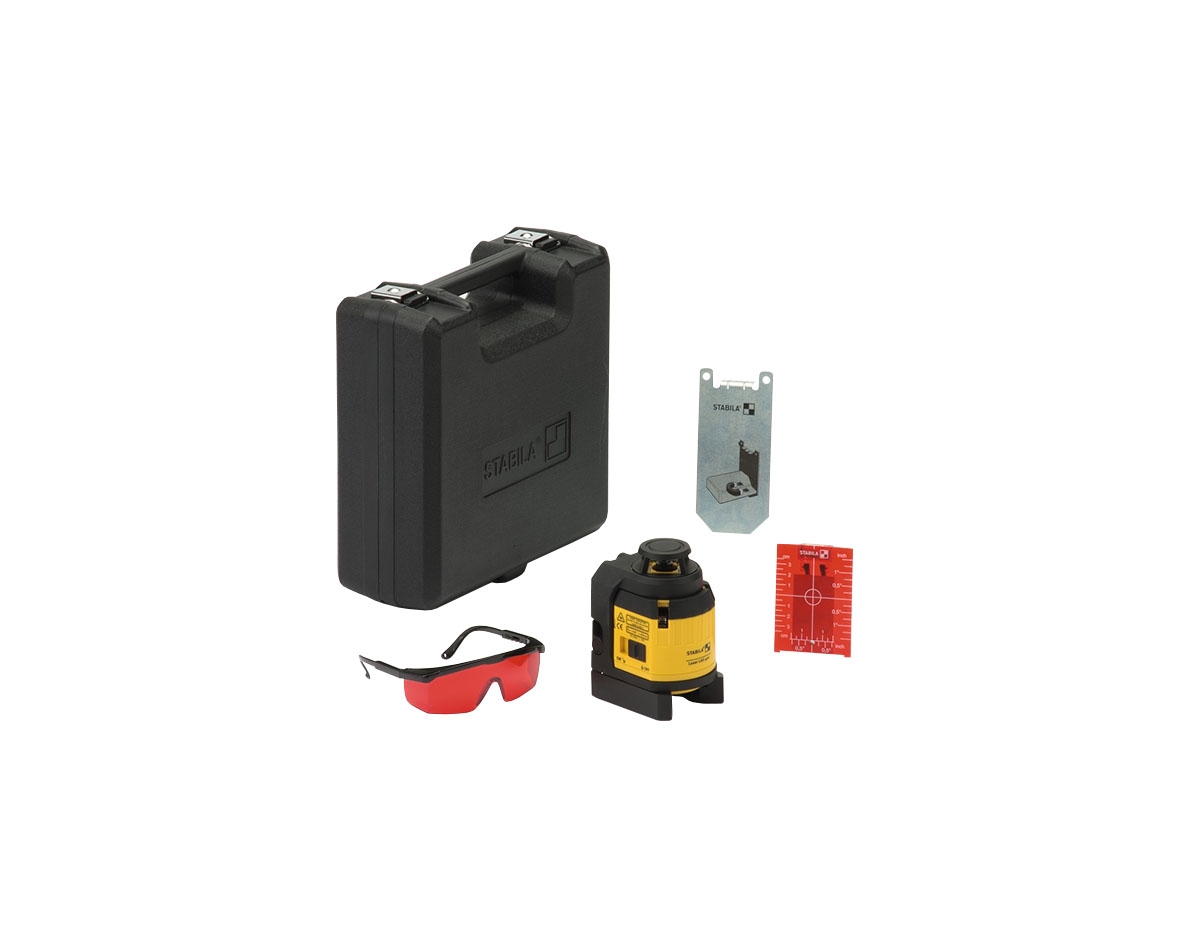

Standard included
- Laser glasses
- 4 AA batteries
- Guide plate
- Hard case
- Wall holder
