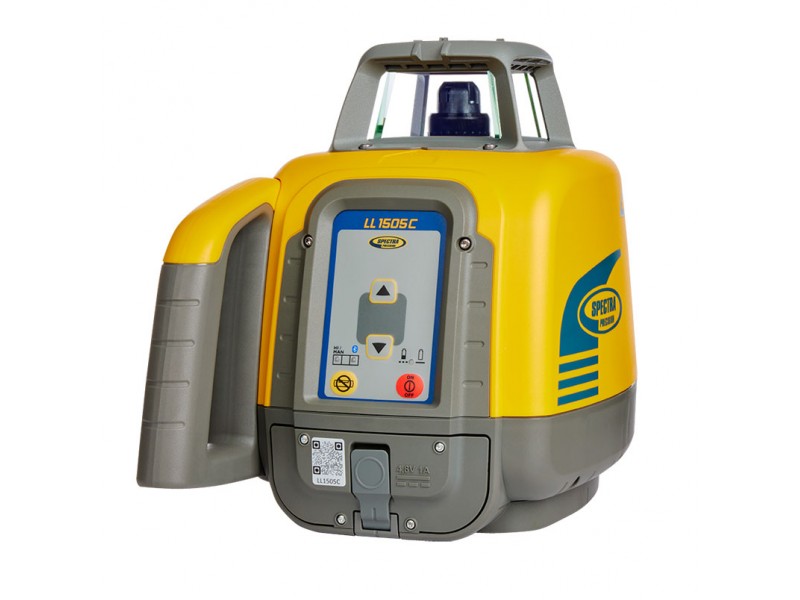

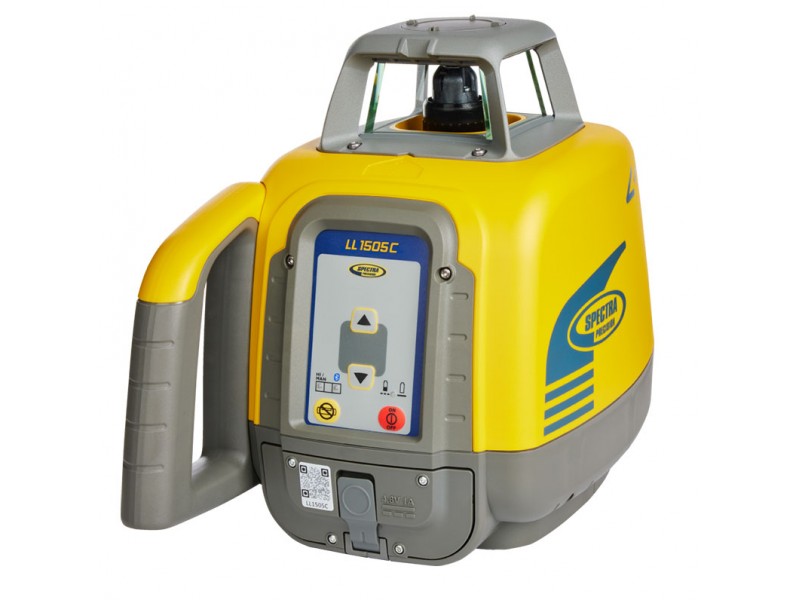

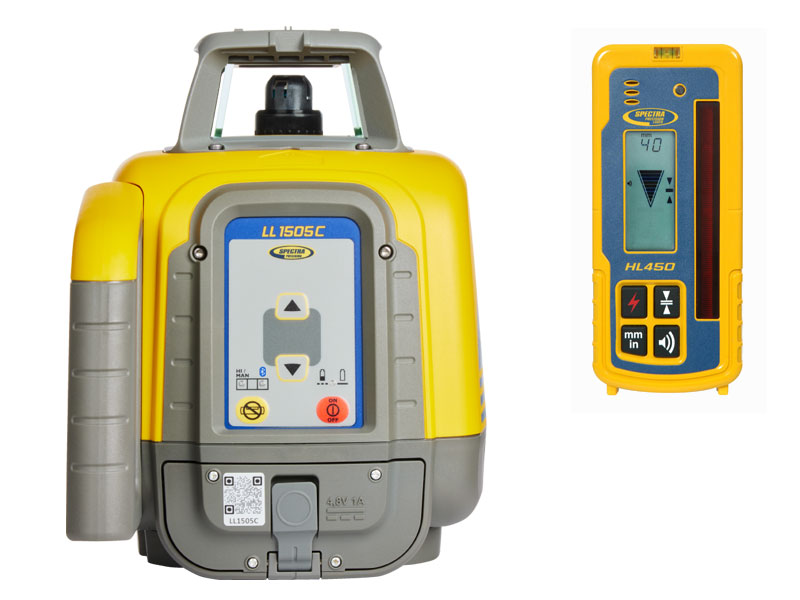

Spectra Physics 603423 LL1505C Construction Laser with Hand Receiver HL450
Special Features
Rotating construction laser with slope mode
The LL1505C is a rotating laser from Spectra with a few extra features. This all-rounder is the advanced brother and successor of the LL300S. Not only has the diameter range been increased to no less than 1200 meters, but you can also easily set a slope on a single axis. With the optional RC1402 radio remote control, this is even possible from a distance of up to 100 meters.
Construction laser with intuitive operation
The LL1505C has been designed by Spectra so that anyone can use it immediately. Because this construction laser is fully self-leveling, the LL1505C takes all the work out of your hands. You switch it on and can get to work immediately. You can operate all functions with just three buttons. And, if you order the new RC1402 remote control along with it, even from a distance of up to 100 meters. The LL1505C comes standard with an external charging plug, so that continuing to work on the charger is always possible in the event of empty batteries.
Rotating construction laser LL1505C can be controlled with your smartphone
The LL1505C was launched in the year 2025 and is fully prepared for the future. Unique to this new series of construction lasers is that they are equipped with a Bluetooth mode. This is handy, because it allows you to easily and quickly pair this rotating laser with the free downloadable app on your smartphone or tablet. This makes it possible to quickly operate all functions from a distance.

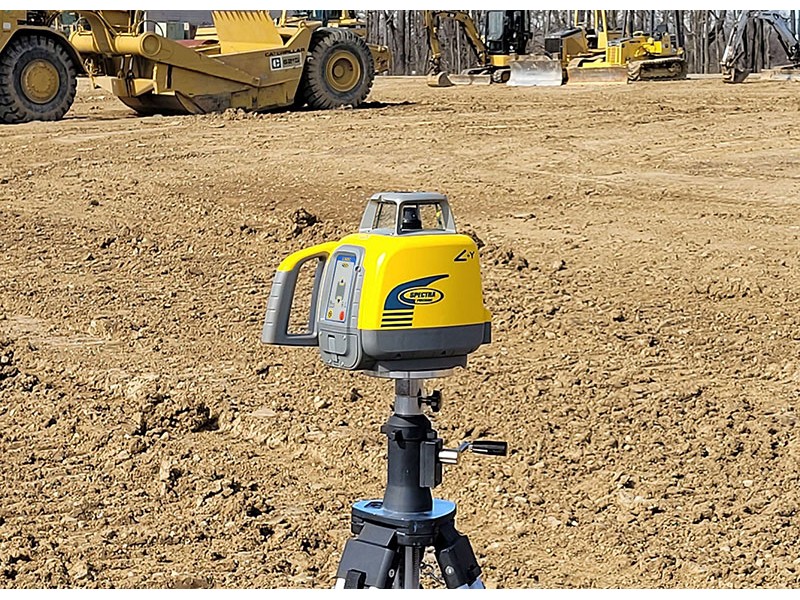

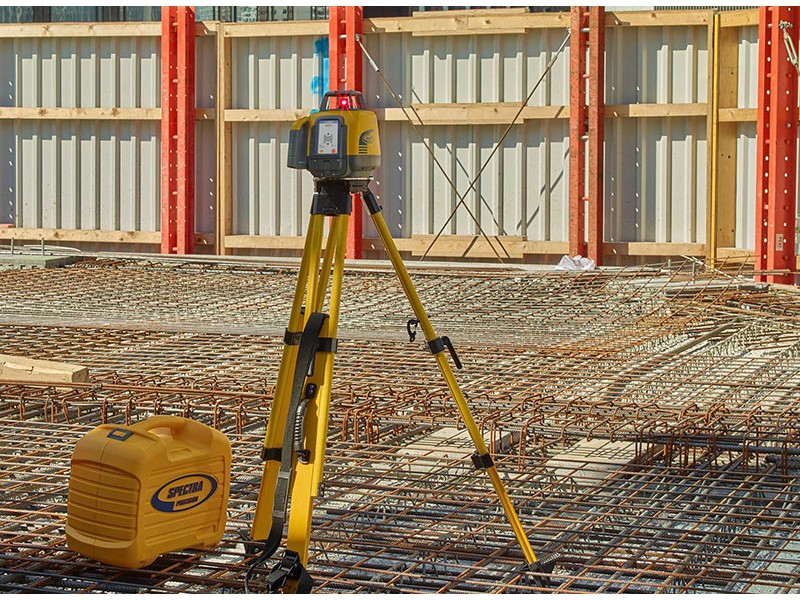

Extremely robust construction laser
This automatic laser from Spectra is the most robust laser on the market. It can therefore be used for numerous standard and concrete jobs. Moreover, this construction laser is the ideal rotating laser for the civil engineering sector. No matter how harsh the conditions on the construction site, the LL1505C holds its own! This construction laser delivers consistently reliable and accurate performance. This allows you to work even faster and more efficiently.
This newly developed construction laser is designed so that a drop of up to 1 meter onto concrete will not cause any damage to it. Even if it falls on the metal hood, the housing remains intact. And that makes working much more pleasant! If your tripod with the LL1505C suddenly tips over, this rotating laser will survive a fall of up to one and a half meters onto concrete.
Rotating construction laser with single slope
A major advantage of the LL1505C is that it is equipped with a very easy slope mode. Because this construction laser automatically levels upon startup, getting started is easier than ever. You no longer need to perform any checks. The control panel of the Spectra LL1505C is equipped with two separate buttons for setting the slope. By using the new HI-alert function, you can very easily create a ramp with a controlled slope setup.
Technical data
- Weight: 3.49 kg
- Material: Hardened plastic
- Color: Yellow
- Protection class: IP66
- Drop resistance: 1.5 meters onto concrete
- Tripod connection bottom: ☐ "
- Tripod connection front: ☐ "
- Remote control: Optional
- Remote control type: RC1402
- Laser beam color: Red
- Laser class: 2
- Laser beam type: Non-visible
- Rotation speed: 300, 600 or 900 rpm
- Diameter range with receiver: With HL450: 800 meters With HL760: 1200 meters
- Accuracy: 1.5 mm over 30 m (max., in practice per 100 meters)
- Horizontal self-leveling: Yes
- Vertical self-leveling: No
- Self-leveling range: 8.7 %
- Out-of-range warning: Laser stops rotating
- Operating temperature: -20 to 50 °C
- Slope mode: Manual
- Slope on 1 axis: Yes
- Slope range: -10 to +15 %
- Scanning: No
- Charging: No
- Use: Outdoor
- Use with receiver: Yes
- Power supply: Battery pack, 4 x D-cell batteries
- Rechargeable: Yes
- Battery life: 55 hours
- Alkaline battery life: 60
- Charger: 230V Trimble charger
