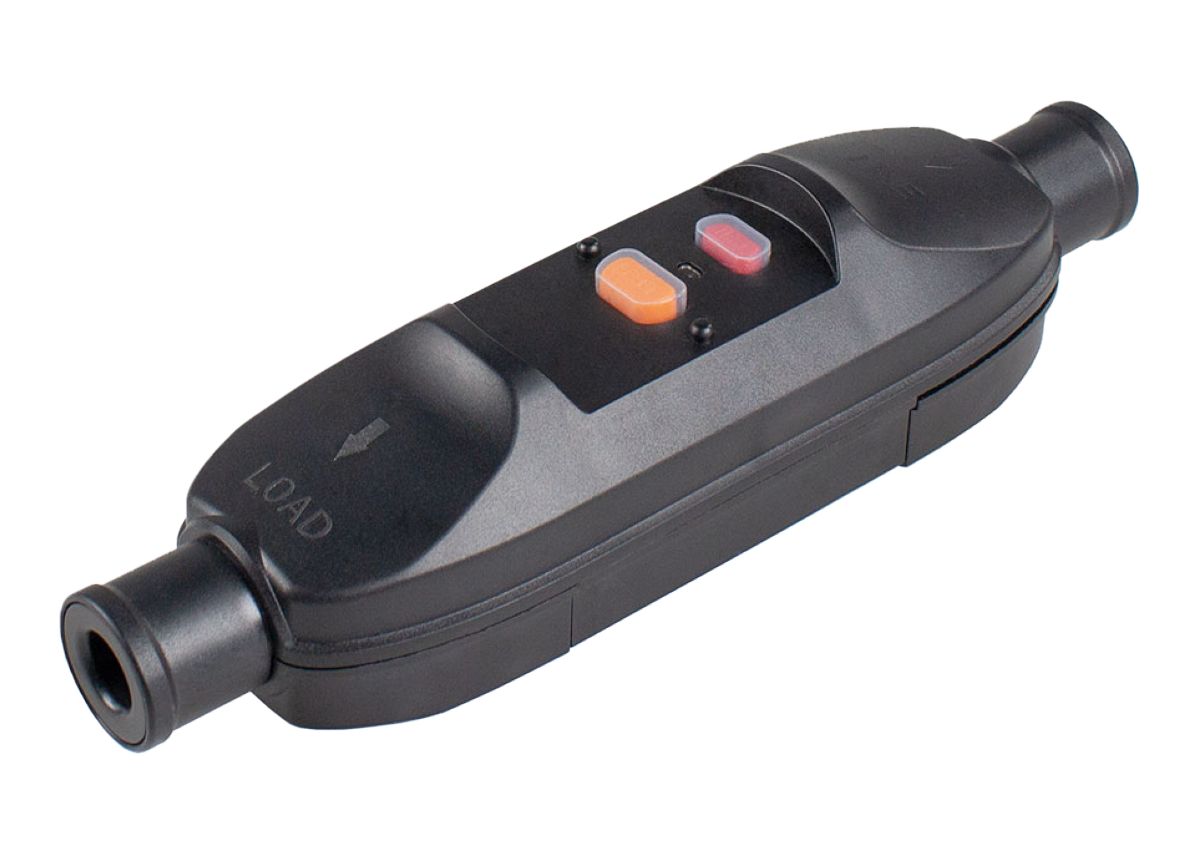

Schwabe 45223 Cable Residual Current Circuit Breaker 230V/16A 30mA IP66
Fixed connection in the power line, cable connections on both sides, test function. Fault currents are detected in a fraction of a second, after which the power supply is interrupted. Reliable protection against dangerous electric shocks.
Special features
- Trip-off time: < 30 ms
- Zero-voltage switch function
- Power: 230 V, 16 A, max. 3,500 W
- Cable diameter: max. 3G2.5 mm²
- Protection class: IP66
- Standard: DIN VDE 0661
Technical data
- Nominal Voltage (V): 230V
- IEC current rating: 16 A
- Protection class: IP66
- Color: Black
- Nominal Fault Current: 0.03 A
