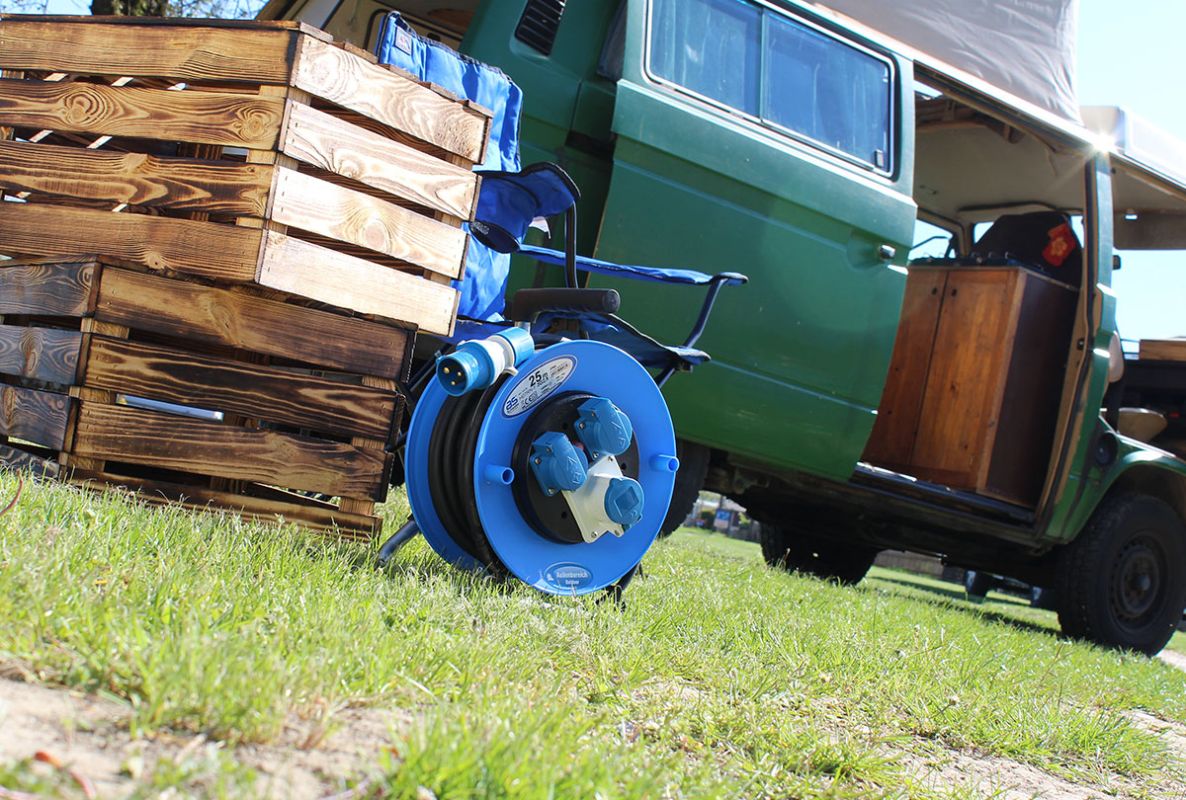

Schwabe 10176 CEE Camping Powerlight Cable Reel 230V/16A IP44 H07RN-F 3G2.5 25m
Reel made of robust, break-resistant plastic. Ergonomically shaped handle and cable guide. Stable, shock-absorbing, and galvanized frame with locking brake. Neoprene cable is oil-, UV-, and ozone-resistant, wear-resistant, for temperatures from -30 to 60 °C. Built-in thermal protection switch, "powerlight" voltage indication: red LED lights up if voltage is present.
Special features
- Cable type: 25m H07RN-F 3G2.5 black neoprene cable
- Connection: CEE plug 230V, 16A, 3-pole with "powerlight" voltage indicator
- Sockets: 1 x CEE 230V/16A 3-pole, 2 x grounded 230V with hinged covers
- Protection: Built-in thermal protection switch
- Maximum load: 230V/16A, 3500W
- Application: Camping, permanent outdoor use
- IP44: Foreign object and splash-proof
- Tested according to: EN 61242, DIN VDE 0620-2-1, DIN EN 50525-2, IEC 60309
- Dimensions: (L x W x H) 290 x 250 x 375 mm, Ø285 mm
- Weight: approx. 7.4 kg
Technical data
- Cable type: Neoprene
- Number of cores: 3
- Core cross-section: Ø 2.5mm²
- Length: 25 m
- Protection class: IP44
- Color: Black
- Number of poles CEE: 3
- Nominal Voltage (V): 230V
- IEC current: 16 A
- With Lid: Yes
- Quantity sockets: 3
- With cable reel: Yes
