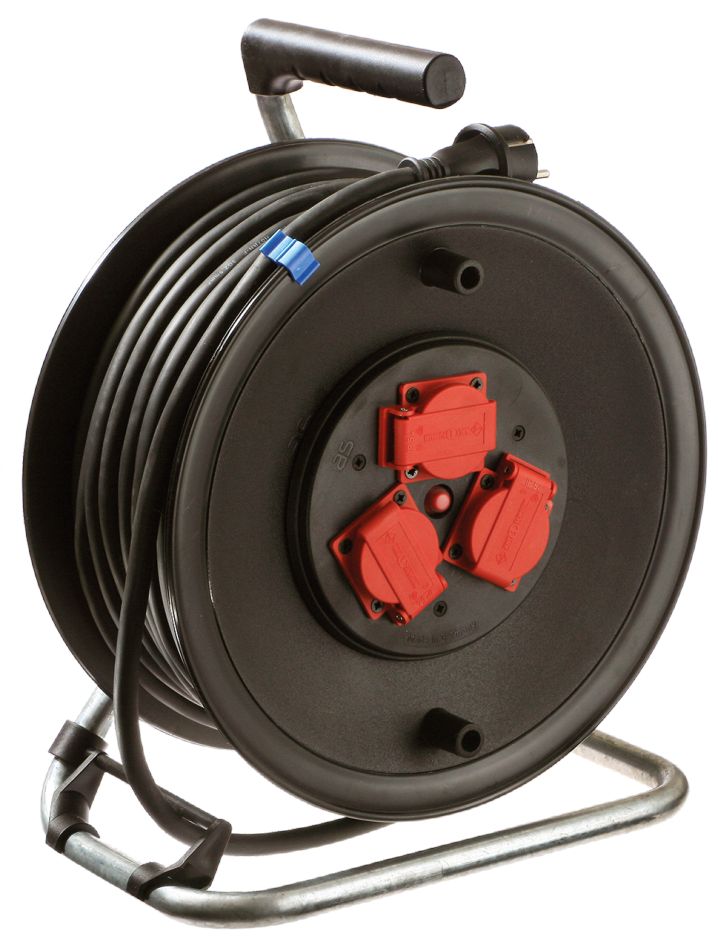

Schwabe 10128 Cable reel 230V/16A IP44 Neoprene H07RN-F 3G1.5 25m
Reel made of robust break-resistant plastic. Stable, shock-absorbing and galvanized frame with parking brake. Ergonomically shaped handle and patented cable routing. Built-in thermal protection switch.
Special features
- Cable type: Neoprene
- Sockets: 3 x grounded with hinged covers
- Housing: Impact-resistant plastic
- Frame: Stable shock-absorbing frame, galvanized steel
- Application: Outdoor/Heavy Duty
- Maximum load coiled: 230V/16A, 1000W
- Maximum load uncoiled: 230V/16A, 3500W
- Protection: Built-in thermal protection switch
- Tested according to: EN 61242, DIN VDE 0620-2-1, DIN EN 50525-2
- IP44: Foreign object and splash-proof
- Dimensions: L/W/H: 235/195/310 mm, Ø230mm
Technical data
- Cable type: Neoprene
- Number of conductors: 3
- Conductor cross-section: Ø 1.5mm²
- Length: 25 m
- Protection class: IP44
- Color: Black
- Number of CEE poles: 3
- Nominal voltage (V): 230V
- IEC current rating: 16 A
- With cover: Yes
- Number of sockets: 3
- With reel: Yes
