Scheppach GWS08 Modular Workshop System
Special Features

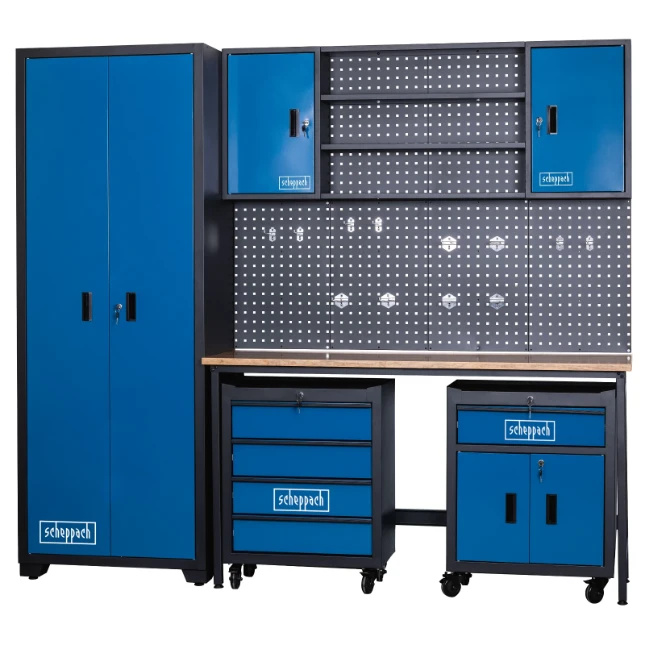

- The Scheppach GWS08 workshop equipment is a modular workshop system for workshops, hobby rooms, and garages.
- Two tool trolleys, a tall workshop cabinet, and two wall cabinets—connected by removable shelves—offer a wealth of storage space for machines, tools, and other equipment.
- All cabinet doors are lockable and made of high-quality, powder-coated steel.
- Hand tools can be neatly hung on the perforated tool wall.
- 12 hooks are included as standard.
- The workbench features a durable rubberwood worktop with a spacious working surface of 1600 x 500 mm.
Benefits
- Compact design - also ideal for tight spaces
- Robust steel with a powder coating finish
- Lockable cabinets for secure storage
Layout
- System cabinet: The tall system cabinet features lockable hinged doors. All shelves are height-adjustable and each has a load capacity of 30 kg. The legs of the system cabinet are adjustable.
- Wall cabinets (2 units): Both wall cabinets feature lockable doors. The open middle section consists of 3 shelves with a total load capacity of 50 kg.
- Perforated tool wall: The tool wall is equipped with a standardized perforation of 10 x 10 mm. The hole spacing is 38 mm.
- Tool hooks: Set of 12 pieces. 6x single hook, 3x double hook, 3x double closed hook.
- Tool trolley 1: This tool trolley is equipped with 4 lockable drawers. The load capacity per drawer is 10 kg. The four swivel casters feature a parking brake.
- Tool trolley 2: This tool trolley is equipped with 1 drawer and a cabinet section with 2 lockable doors. The four swivel casters feature a parking brake.
- Workbench: The workbench features a spacious work surface (1600 x 500 mm). The high-quality worktop is made of rubberwood. The work table features adjustable legs.
Technical data
- Dimensions L x W x H 2360 x 500 x 2050 mm
- Cabinet dimensions L x W x H 760 x 450 x 2080 mm
- Workshop trolley dimensions L x W x H 616 x 330 x 785 mm
- Wall cabinet dimensions L x W x H 1600 x 200 x 600 mm
- Workbench dimensions L x W 1600 x 500 mm
- High wall dimensions L x W 1600 x 600 mm
- Net / gross weight 120 / 140 kg
- Packaging dimensions 820 x 560 x 2220 mm
Scope of delivery
- Pallet
- Manual
