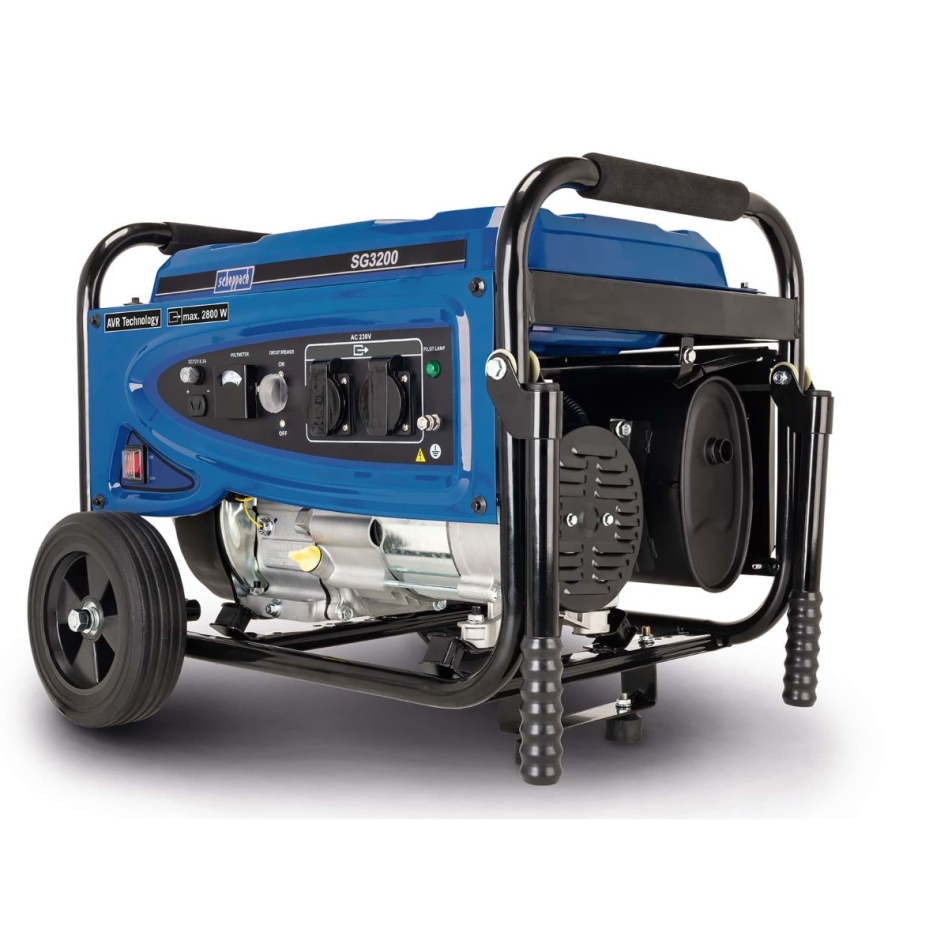

Scheppach SG3200 Petrol Generator 5906220903
The Scheppach SG3200 generator is powered by a 196 cm³ 4-stroke engine and, with a maximum of 2800 W, always delivers sufficient power for work in and around the house or on the construction site. Thanks to the stable steel frame, the drive mechanism, and the fold-out handles, the power generator is mobile and versatile. A 15-liter petrol tank ensures that you are supplied with power for up to 12 hours.
The Scheppach SG3200 power generator reliably supplies you with power on the construction site or elsewhere, allowing you to work independently of the power grid. Whether in a spacious garden, at a campsite, in the woods, or on a construction site – the SG3200 provides enough power for several hours.
An air-cooled 4-stroke petrol engine with 4.8 kW and a 196 cc displacement provides the power. The SG3200 is supplied with fuel via a 15-liter petrol tank. The engine is started using a pull cable. Consumption at 2/3 load is approximately 1100 g/kWh, so the generator can be used at full load for about 12 hours without refueling. With the help of the fuel gauge, you always keep an eye on the current level. The integrated oil shortage protection protects the engine against damage caused by a lack of oil.
The SG3200 generates a maximum output power of 2800 watts. In addition, the generator is equipped with overload protection, which switches off the socket in the worst-case scenario. The integrated AVR (Automatic Voltage Regulation) control ensures a stable output line by quickly compensating for voltage fluctuations under varying loads. This benefits connected consumers if they are sensitive to voltage changes or are among the electrical devices that are difficult to start. The generator is sturdily built and weighs nearly 44 kg. The wrap-around bracket protects the edges of the generator during transport and can be used as a carrying handle. For easy transport by one person, the SG3200 features a drive system with space-saving foldable transport handles.
The SG3200 is equipped as standard with two 230 V~ (16 A) sockets with overload protection and a 12 V~ (10 A) socket.
Special Features
- 6.5 hp petrol engine with pull starter
- Powerful and air-cooled 4-stroke petrol engine with a displacement of 196 cm³
- Maximum 2800W output power, 2500W nominal power
- Two 230 V sockets and a 12 V DC connector
- Stable and robust steel frame with drive system and foldable handles
- 15-liter fuel tank for 12 operating hours under full load
- Integrated overload protection, voltmeter and oil level warning7
Technical data
- Shop dimensions: 605x445x450mm
- Model: Single-cylinder 4-stroke petrol engine
- Displacement: 196cm3
- Engine power: 6.5 hp
- Starting system: pull starter
- Tank capacity: 15L
- Voltage meter: yes
- Oil circuit breaker: yes
- Output voltage: 2x230V
- AC frequency: 50 Hz
- Overload protection: yes
- Nominal/Max. -Power: 2500/2800W
- Voltage regulation: AVR system
- Fuel consumption at 2/3 load: 0.6 l/h
Scope of delivery
- On pallet
