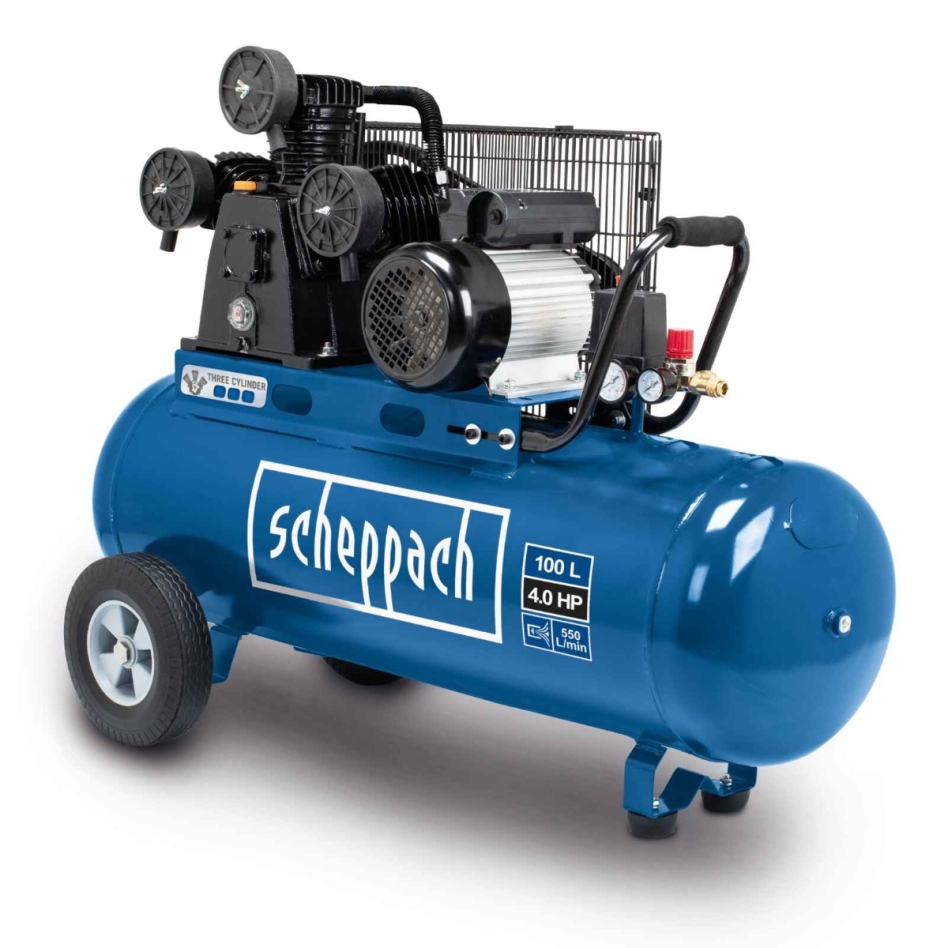

Scheppach HC550TC Compressor 400V 100L 5906147902
The Scheppach HC550TC compressor is a real powerhouse. This belt-driven compressor features a 100-liter tank, 10 bar working pressure, and a 2200-watt induction motor. Three cylinders ensure a high suction capacity and particularly fast tank filling. Thanks to two quick couplings, each equipped with its own pressure gauge, changing tools is very easy.
Special Features
- Suction capacity 550 L/min
- High-efficiency induction motor
- Maximum working pressure of 10 bar
- Powerful 3 HP motor
- 3 cylinders for fast tank filling
- Pressure regulator for optimal adjustment of working pressure
- Tank capacity 100L
- Trolley for easy transport
- Vibration-free feet
- 2 quick couplings
Technical data
- Net weight (kg) 50.2
- Number of cylinders 3
- Color Blue
- Mobile Yes
- Connection voltage (V) 400
- Width (cm) 47.5
- Weight (kg) 80
- Height (cm) 84
- Frequency 50 Hz
- Depth (cm) 102.5
- Hose connection Quick coupling
- Piston displacement per minute (l) 550
- Lubrication type Oil lubricated
Scope of delivery
- In box
