Scheppach 5901326901 Table Circular Saw HS254
The Scheppach HS254 circular saw table is a powerful sawing machine for every workshop. The circular saw is suitable for precisely cutting beams, profile sheets, and making miter cuts. The extra-large work table with scale makes it possible to accurately process even large workpieces. The powerful 2200 Watt motor combined with the Ø254mm saw blade (5300 rpm) ensures rapid work progress. Furthermore, the table frame made of solid sheet steel ensures an ergonomic working posture and a stable stand. The Scheppach HS254 circular saw table comes complete with miter guide, parallel fence, and dowel.Special features
- Powerful table circular saw for precise cutting of beams, profile sheets, and miter cuts
- 2200W motor with overload protection
- Spacious work table of 935x630 mm with continuous scale
- Ergonomic working position and stable stance thanks to the robust sheet steel frame

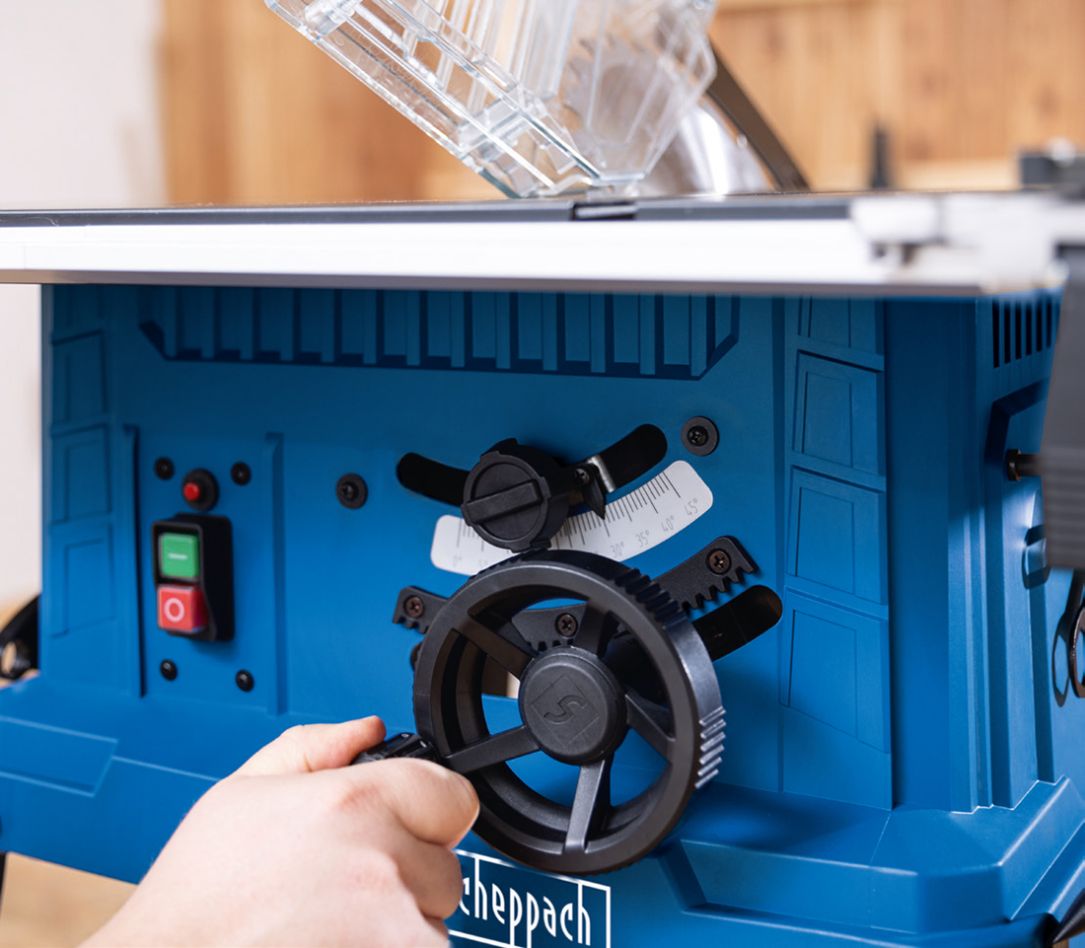

- Handwheel for comfortable and stepless height adjustment
- Integrated connection for chip extraction
- Saw blade infinitely tiltable from 0–45° for precise miter cuts
- Cutting height 90° max 85 mm / 45° max 63 mm
- Table extension on both sides for processing large workpieces
- Miter guide adjustable from -60° to +60°
- Parallel fence with integrated scale for precise cuts
- Saw blade Ø254 mm with 24 teeth and 5300 rpm for clean sawing results
- Maximum safety due to saw blade protection
- Includes miter guide, parallel fence and push stick, saw blade (24 teeth)
Technical data
- No. power input: 2200 W
- Saw blade diameter: 254 mm
- No-load speed: 0 / 5300 1/min
- Length: 930 mm
- Voltage: 230 V
- Voltage: 230 V
- Width: 935 mm
- Saw blade bore: 30 mm
- Height: 1000 mm
- Power output: 2200 W
- Adjustable cutting depth: < 85 mm
- Weight: 23 kg
- Max. swivel range: 45 °
- Cutting depth (90°): 85 mm
- Cutting depth (45°): 63 mm
- Contact surface width: 630 mm
- Contact surface length: 935 mm
