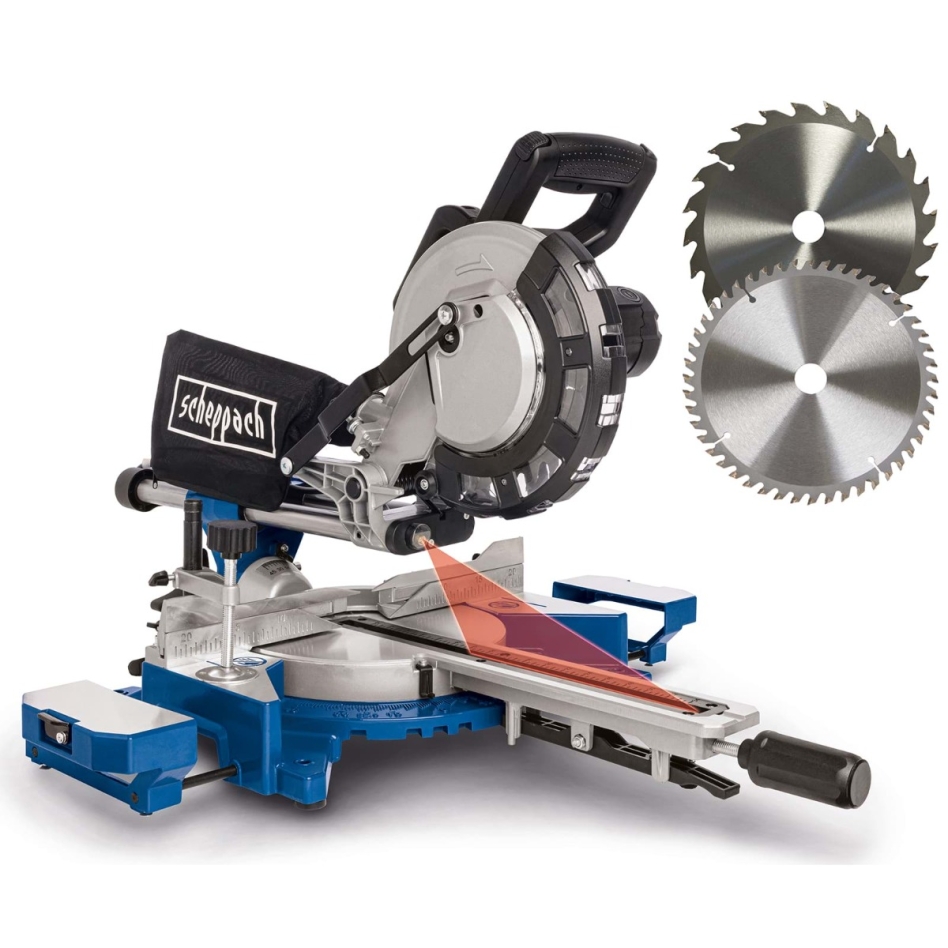

Scheppach 5901215903 HM216 Miter Saw incl. 2 saw blades
Special features
- Scheppach Miter Saw HM216
- The Scheppach HM216 miter saw is ideal for demanding use in the hobby workshop
- With its stable double column guide, it delivers versatile and precise crosscuts and miter cuts in hardwood and softwood, as well as in all common plastics
- Sturdy and lightweight cast aluminum frame for easy transport
- Powerful 2000 watt motor for versatile use
- Compact dimensions, even for the small workshop
- Durable cast aluminum frame
- HW saw blade with 24 teeth for consistent and accurate sawing results
- Built-in laser for precise indication of the cutting edge
- Large cutting width up to 340 mm
- Fully enclosed saw blade guard for maximum work safety
- Includes 24Z and 48Z HW saw blade
Technical data
- Net weight (kg) 12
- Cutting depth chopping operation 45°/45° 38 mm
- Cutting depth chopping operation 45°/90° 38 mm
- Cutting depth chopping operation 90°/45° 65 mm
- Cutting depth chopping operation 90°/90° 65 mm
- Cutting height table operation 45° 65 mm
- Cutting height table operation 90° 65 mm
- Cutting width logging operation 45°/45° 240 mm
- Cutting width logging operation 45°/90° 340 mm
- Cutting width logging operation 90°/45° 240 mm
- Cutting width logging operation 90°/90° 340 mm
- Height 505 mm
- shaft speed 4700 rpm
- Tilt adjustment left 0 °
- Tilt adjustment right 45 °
- Length 735 mm
- Miter adjustment left 45 °
- Miter adjustment right 45 °
- Nom. Power input 2000 W
- Saw blade bore 30 mm
- Saw blade diameter 216 mm
- Suitable for metal No
- Suitable for plastic Yes
- Suitable for stone No
- Suitable for wood Yes
- Voltage 230 V
- Weight 12 kg
- Width 593 mm
- Base included No
- With laser Yes
Standard included
- 1 x Miter and Pull Saw HM216
- Includes 24Z and 48Z HW saw blade
