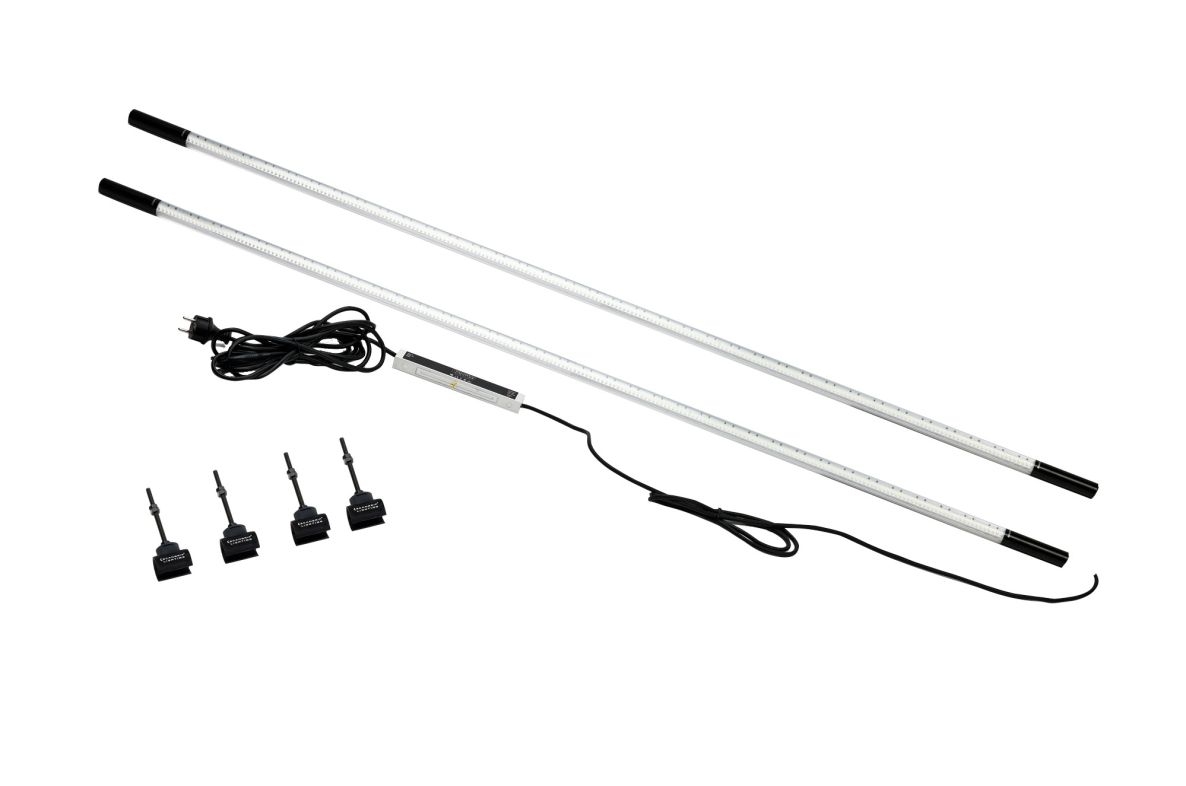

Scangrip 03.5202 Line Light 2
Special features
- Universal lighting solution with 2 LED lighting units
- LINE LIGHT is designed for use wherever strong, efficient, and concentrated light is required in a specific work area, or where the ability to adjust the lighting angle is needed.
- LINE LIGHT 2 is for universal application on car lifts, on top of the workbench, anywhere in the workshop, in the service vehicle, in production, etc.
- LINE LIGHT concentrates the light at a beam angle of 75° and provides extremely bright and powerful illumination of the entire work area – almost double the lighting compared to traditional 36W fluorescent tubes. Glare during work is avoided and the lamp itself can be rotated to obtain the optimal beam angle
- The design is slim and compact (only ø25mm)
- Because LINE LIGHT is a low-voltage (24V DC) system, you can easily perform the installation yourself. All basic fixtures are supplied with every kit together with the power supply and cable
- LINE LIGHT 2 consists of 2 lighting units of 1234mm incl. 80W power supply unit, 8 m cable and complete suspension fixings
- LINE LIGHT is constructed from a closed extruded acrylic profile (PMMA) with a built-in prism, an LED PCB, and end caps in black anodized aluminium. It is extremely robust, shock-resistant, and waterproof (IP67) to withstand wet and dirty workplaces. The technical lifespan of LEDs is at least 100,000 hours. Technical data: Built-in charging circuit: Yes. Housing material: Plastic. Dimensions: 25mm x 25mm x 1234mm. Version: Construction lamp. Headlamp: Non-replaceable LED. Voltage type: DC. Nom. Voltage: 1 / 24 V
- Main lamp power: 30 W
- Main lamp flashing function: No
- With light source: Yes
- Color temperature: 6000 K
- Auxiliary lamp flashing function: No
- Protection class (IP): IP67
- Light color: Cool white
- Rechargeable: No
- Housing color: Black
- Lamp holder: Integrated LED
- Connection cable length: 8 m
- Effective luminous flux according to IEC 62722-2-1: 1000 lm
- App control: No
- Impact resistance: IK07
- Switching brightness: 0 / 1600 lx
Scope of delivery
- 2x Lamps
- Cable
- Power supply
- Manual
