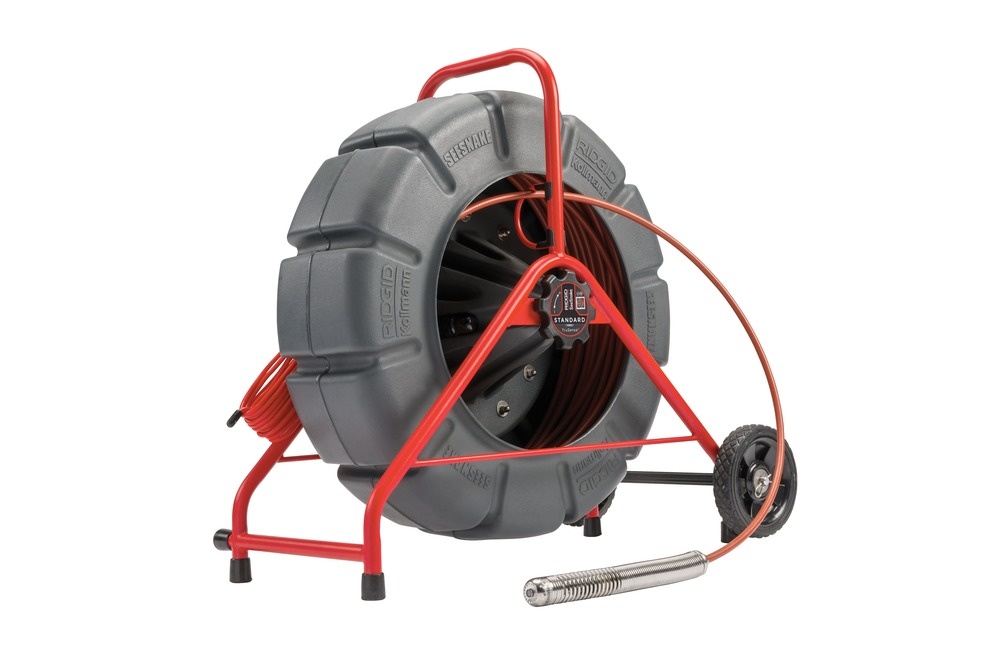

Ridgid 63583 SeeSnake® Standard Camera, 325' (99 m) with self-leveling camera head, with TruSense
Special Features

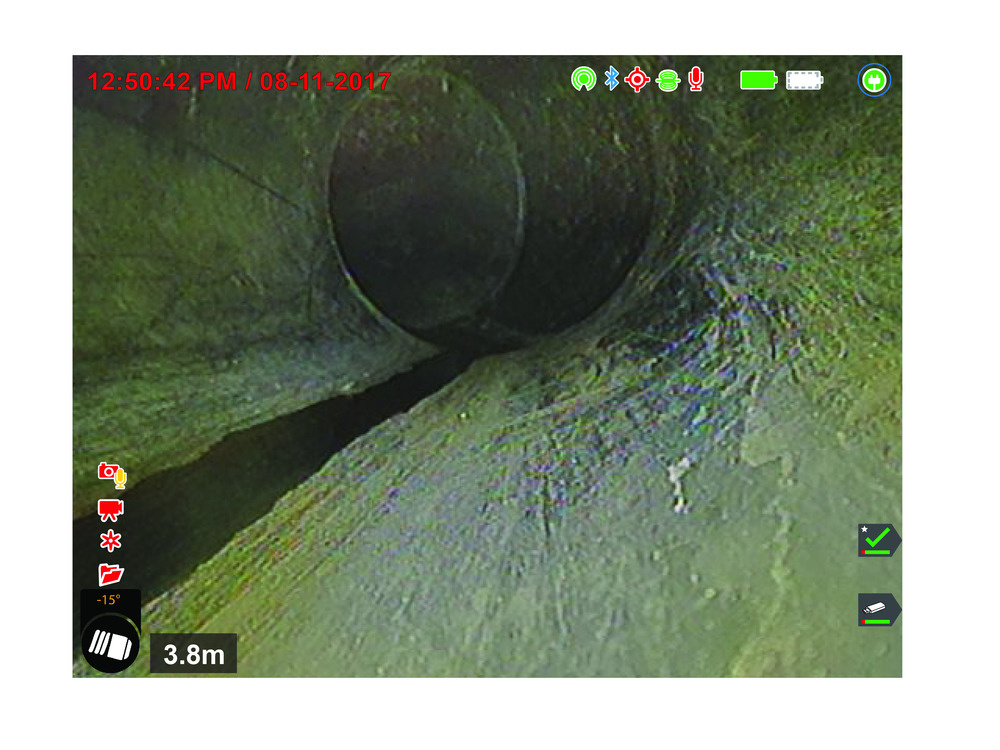

- In-tube visibility is now improved with High Dynamic Range (HDR), allowing tubes to be displayed in detail. Robust, bright LEDs for exceptionally good image quality and a long lifespan. The self-leveling camera head keeps the image upright (certain models). The powerful FleXmitter® probe has a large range and retains the ability to use the camera in bends. The High Dynamic Range (HDR) image sensor provides a bright, clear image inside the tube in low light conditions. TiltSense displays the tilt of the camera inside the pipe on a connected SeeSnake CSx series monitor.
- The SeeSnake Standard camera reel offers unmatched reliability and performance in a robust package.
- Now available with TruSense™ technology.
- The Standard features the stiffest push cable and is available in lengths of up to 99 m, making it perfect for long pipe sections, especially in larger pipes with few bends.
- Robust, bright LEDs for exceptionally good image quality and a long service life.
- The self-leveling camera head keeps the image upright.
- The powerful FleXmitter® probe has a wide range and maintains the ability to use the camera in bends.
- The High Dynamic Range (HDR) image sensor provides a bright, clear image inside the pipe in low light conditions.
- TiltSense displays the tilt of the camera inside the pipe. again on a connected SeeSnake monitor from the CSx series.
Applications
- Inspection of sewer and drain pipes.
- Inspection in HVAC systems.
- Inspection of hard-to-reach structures or installations.
Benefits
- Accuracy: Multidirectional antennas and graphical display minimize incorrect localization.
- User-friendly: Intuitive operation and clear feedback.
- Versatile: Works with various frequencies and applications.
- Combination with RidgidTrax possible via Google Play App Store
Technical data
- Pipe capacity2" - 12" (5-30 cm)
- Maximum length99 m
- Probe512 Hz
- Weight (without monitor)19.5 kg
- Reel frame diameter32" (81 cm)
- Camera diameter1.365" (35 mm)
- Camera length1.68" (42 mm)
- Push cable diameter,44" (11 mm)
- Operating temperature-4 °F to 104 °F / -20 °C to 40 °C
- Max. depth for waterproofing330' (100 m)
- Video resolution656(H) x 492(V)
Scope of delivery
- Conductors: set of 4 included
