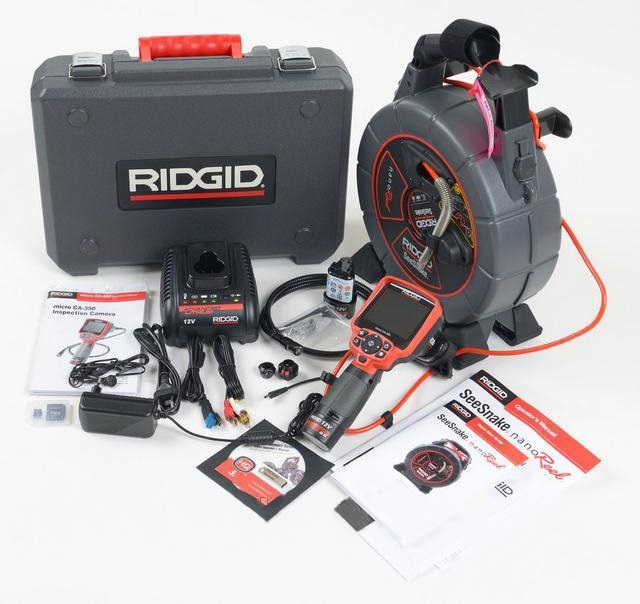

Ridgid 40823 NanoReel Reel N85S with micro CA-350 inspection camera
SeeSnake® nanoReel camera inspection system for industry. Capacity from 25 mm up to a maximum of 25 m. Handles 90° bends in most 30 mm pipes. The nanoReel system offers new possibilities for inspecting long pipe sections with a small diameter. Applications where previously only borescopes offered a solution can now be inspected with the nanoReel system. Boiler tubes, supply lines, sprinkler systems, and various specialized applications can be inspected with the nanoReel system.
Features
- Thanks to the small-cross-section camera capable of navigating sharp bends, pipes with a diameter of 25 mm and a length of up to 25 m can be inspected, even if they have sharp bends.
- Thanks to the compact, lightweight unit, transport and storage of the device are easy.
- Thanks to the interchangeable reels, you can replace the internal reel depending on the application.
- N85S – Pipes with a very small diameter of 20 - 50 mm with sharp bends for specialized applications.
Technical data
- Camera head 0.62" (15.5 mm).
- Cable length 85" (25 m).
- Cable diameter 0.25" (6.3 mm).
- Cable capacity ¾ to 2" (20 to 50 mm).
- Weight 9.5 lb (4.1 kg).
- Length 13.25" (33.7 cm).
- Width 6.6" (16.8 cm).
- Height 17.5" (44.5 cm).
- Resolution 510 x 496.
- Spherical centering guide2 included.
- Probe 512 Hz.
- Meter counter N/A
Standard included
- Separate reel
- Connection cable
- Manual
- CA-350 inspection camera
