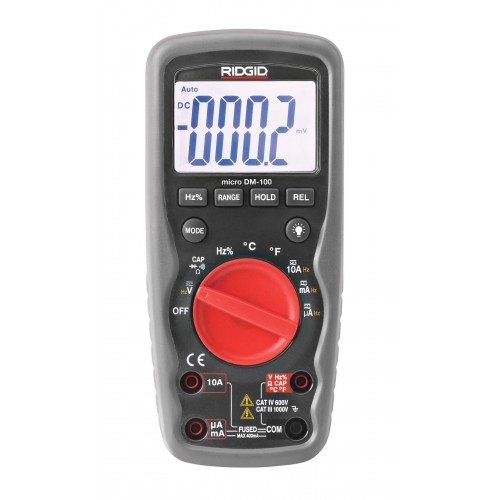

Ridgid 37423 Micro DM-100 Digital Multimeter
Special Features
- The RIDGID® micro DM-100 Digital Multimeter sets the new standard for troubleshooting electrical problems!

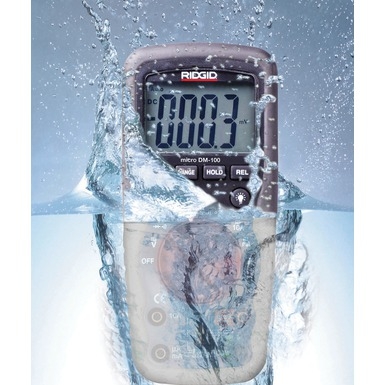

- Thanks to a double-insulated, waterproof (1m) IP-67 housing, the micro DM-100 is also shock-resistant and perfectly suited for use in the most demanding environments.
- The micro DM-100 features 11 different functions ranging from AC/DC voltage (1000V) and current to temperature measurements and is an accurate and fast True RMS and AutoRanging multimeter.
- The micro DM-100 is also classified for industrial use (CAT III-1000V & IV-600V).
- An extra-large backlit LCD screen ensures easy and clear reading of results.
Functions & Range
- Voltage AC /DC: 400.0mV – 1000V
- Current AC/DC: 400.0µA – 10A
- Resistance: 400.0Ω – 40.00MΩ
- Capacitance: 4,000nF – 200.0 µF
- Frequency: 9.999Hz – 9.999MHz
- Duty: 0.1% - 99.9%
- Diode test: 1.5V
- Continuity test: 150Ω
- Temperature: -20°C – 760°C
Technical specifications
- Power supply: 9V battery (included)
- Screen: XL LCD with backlight and 4000 counts
- Safety class: CAT III & IV 1000V/600V
- Fuses: 2x 0.5A & 10A- 1000V
- Insulation: Class II,
- Double Insulation
- Safety specification: IP-67
- Water resistant (1m)
- Polarity: Automatic display
- Automatically switches off: After 15 minutes
- Automatic range determination: Yes
- Manual range determination: Yes (with 1 button)
- True RMS: Yes
Standard included
- Carrying case
- Double-insulated test leads
- Type K thermocouple & adapter
- 9V battery
