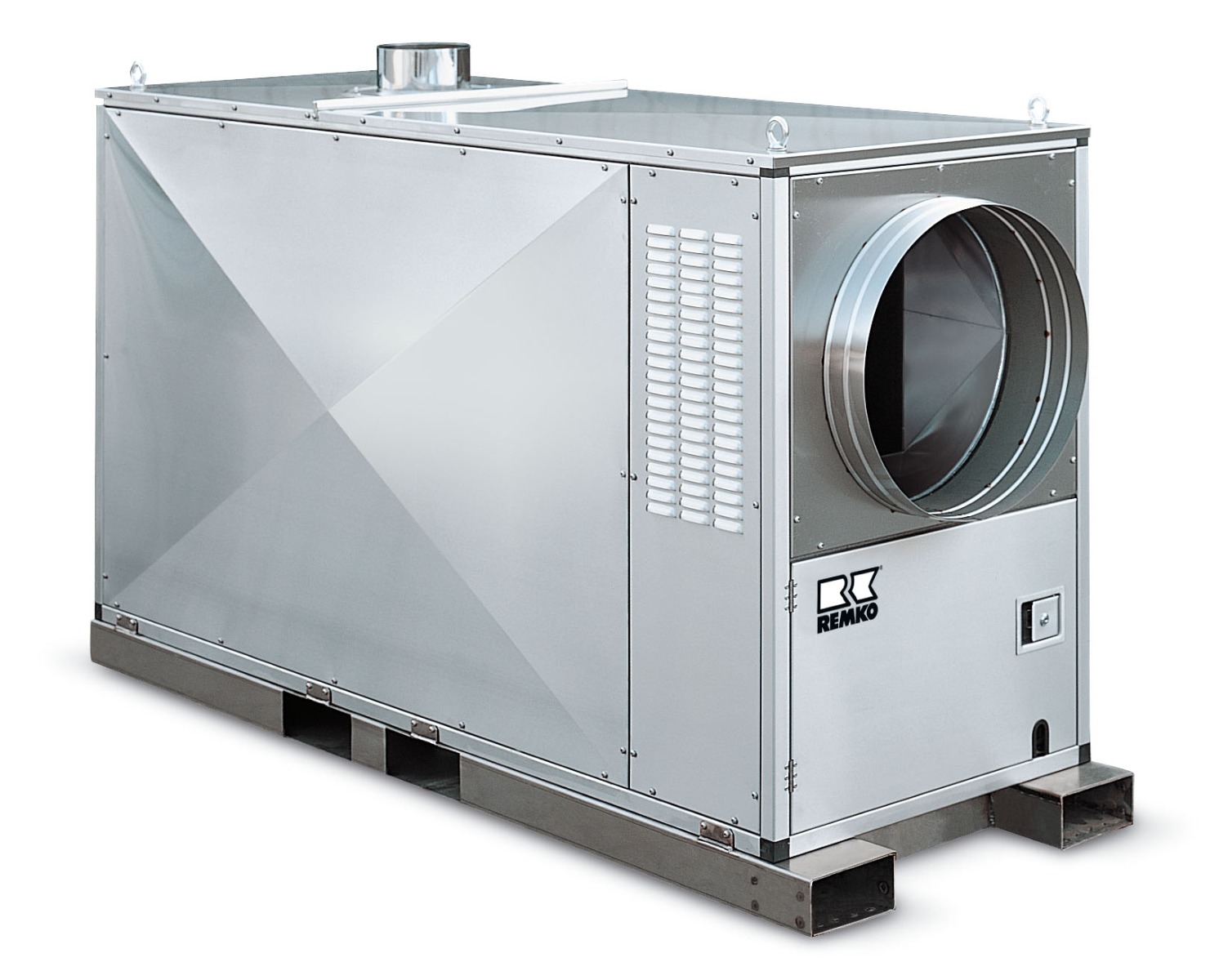

Remko HTL 250 EC Indirectly Heated Stove 220 kW 132565
Special Features
- The HTL heating units fulfill all the wishes of professionals.
- From the stainless steel construction to the technically advanced special radial fans.
- These units continue to operate even with oversized hot air ducts.
Strong Points
- Lockable doors for controls and burner
- HTL 200 EC, 250 EC and HTL 400
- Low maintenance thanks to removable side panels
- Special radial fans
- Automatic fan with direction of rotation control
- Built-in safety switch
- Fully automatic operation with room thermostat (accessory)
- Heating in winter, ventilation in summer
- Standing and transport slide
- Suitable for firing with biodiesel B7/B10 and HVO biofuel
- Standard single-strand design
Technical data
- Nominal heat load max. (EDITION) 160 to 220 kW
- Fuel Heating oil EL/diesel
- Fuel consumption, heating oil max. (EDITION) 15.9 / 21.9 l/h
- Oil nozzle Danfoss (EDITION) 3 / 80 °S
- Connection / pump pressure (EDITION) 10 / 18 bar
- Flue gas mass flow 255 / 350
- Supply voltage 400/3~N/50
- Power consumption max. (EDITION) 6.0 kW
- Nominal current consumption max. (EDITION) 11 A
- Air outlet Ø (EDITION) 550
- Dimensions h/w/d 1370/800/2400 mm
