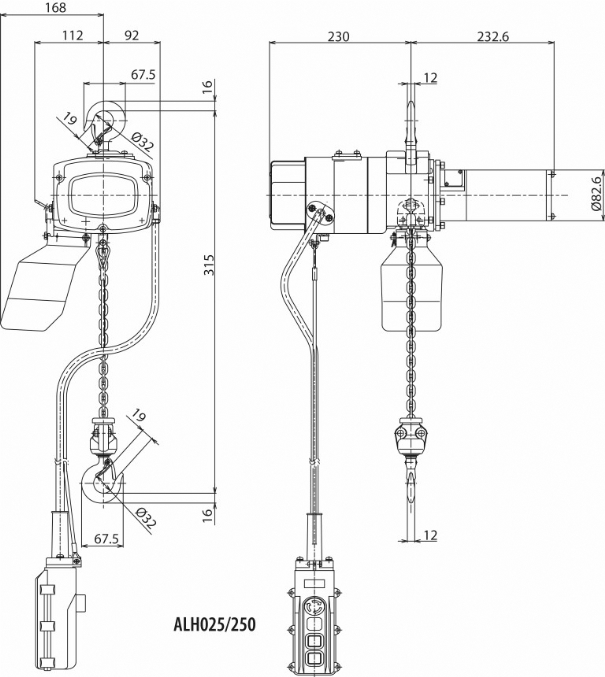

Rema ALC025/250/6M Elephant Alpha 400 V electric chain hoist 1 speed 6.0 m 250 kg 514003
Special features
- The Elephant Alpha 400 V electric chain hoists are compact and have a very low dead weight (aluminum housing)
- Wide range of applications due to the high duty cycle in combination with a high hoisting speed
- Overload-resistant slip clutch
- Load pressure brake that holds the load at any desired height
- Load hooks bend gradually under overload and do not break abruptly
- Electronically zinc-plated load chain, class DAT (Grade 8) according to EN 818/7
Technical specifications
- Insulation class: E
- FEM 9.511 motor: 2m
- Operating voltage: 400 Vac
- Protection class: IP54
- Control voltage: 24 V
Standard delivery
- 6 m hoisting height (maximum distance between upper and lower hook)
- 4.8 m control cable with strain relief
- Suspended push-button box 400/24V control
- 4 m power cable
- Plastic chain magazine for 3 m hoisting height
- Option: Any other hoisting and operating height is also possible
- Larger chain magazine > 3 m
- Push trolley Standard: EN12100-1/2, EN818-7, EN14492
Technical data
- Type: ALC025/250
- Safe working load (kg): 250
- Hoisting speed (m/min): 9
- Duty time 120 sch/h (%): 40
- Load chain DxT (mm): 4 x 12
- Number of parts: 1
- Max. lifting height (m): 30
- Construction height (mm): 325
- Power (kW): 0.55
- Weight (kg): 18
