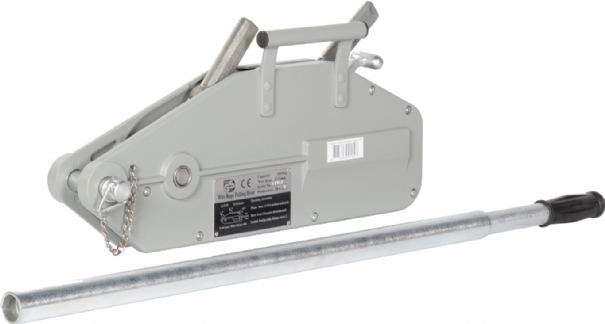

RemaGP-1.6 wire rope hoist 1600 kg 350003
Details
- The Gripper is a very robust wire rope hoist that can be used vertically, horizontally, and diagonally, with a capacity of 800 kg, 1600 kg, and 3200 kg
- The shear pin and handle are reliable indicators of overload
- Precise operation
- Virtually maintenance-free
- The housing is made of cast aluminum with a low dead weight
- The safety pin breaks at approx. 25% overload
- The handle bends at approx. 50% overload
- The safety pin(s) can be replaced under load
- Spare safety pins are located in the carrying handle or in the operating handle (GP-0.8)
- Standard deliveryExcluding steel cable set
- Option Steel cable set, standard length is 20 meters
- IMPORTANT: Check before use that the safety pin is in good condition
- If the safety pin is broken, replace it
- Check before use that the steel cable is not damaged
- Check before use that the steel cable is properly fed through both clamping jaws
- Never use a longer handle or make the handle longer than the original
- Standard: EN12100-1/2, EN13157, EN13414, EN121385
Technical data
- Type: GP-1.6
- Safe working load (kg): 1600
- Max. hand force (kg): 41
- Handle length (mm): 1120
- Lifting height at 1 lever movement (mm): 55
- Cable diameter (mm): 11.0
- Weight (kg): 11.9
- A (mm): 545
- B (mm): 95
- C (mm): 270
- D (mm): 72
- E (mm): 190
- F (mm): 24.5
