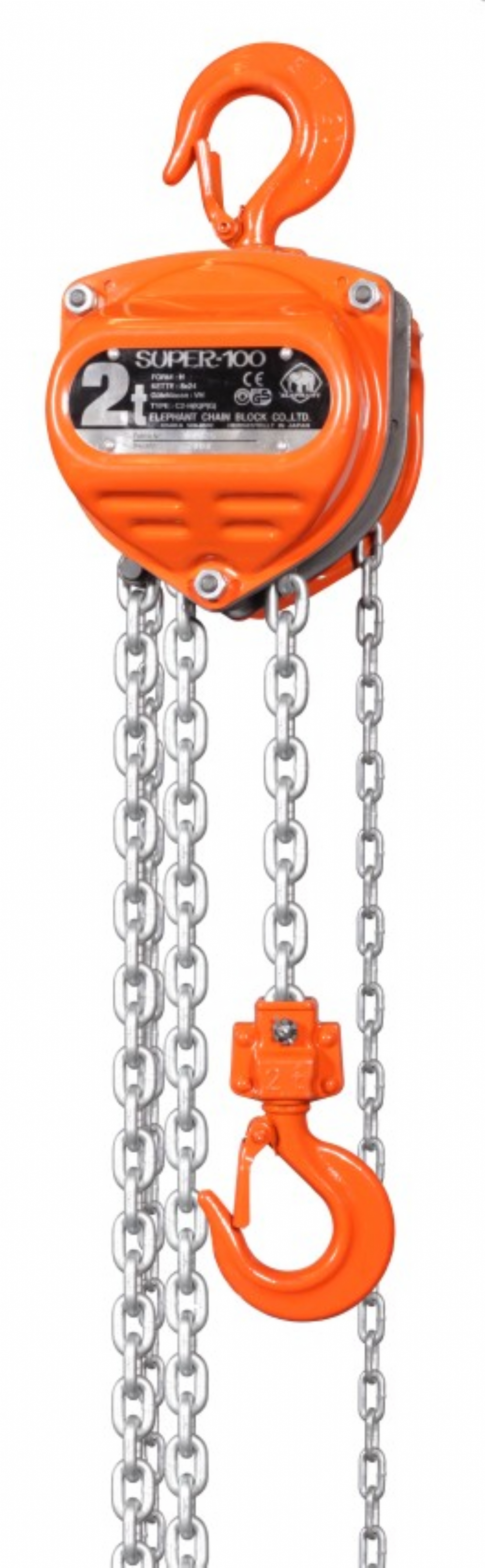

Rema Elephant H-100-2000KG-3000 Hand Hoist 2000 kg lifting height 3.0 m.
The Elephant H100 is a robust hand hoist for heavy and very intensive use where safety, ergonomics, and low operating force are paramount.
Special features
- Low operating force at maximum load due to bearing-mounted shafts.
- Double ratchet system equipped with a double spring.
- Load pressure brake that holds the load at any desired height.
- The upper and lower hooks have safety latches.
- In the event of overload, the hooks will bend gradually and not break abruptly.
- Patented chain guide for the load chain.
- Electronically zinc-plated load chain Grade 10 according to EN 818/7.
- Galvanized hand chain.
Technical data
- Safe working load (kg) 2,000
- Manual force max. (kg) 34
- Load chain DxT (mm) 8.0 x 24.2
- Number of parts 1
- Hand chain DxT (mm) 5.0 x 23.6
- Construction height (mm) 379
- Lifting height: 3 meters (maximum distance between top and bottom hook).
- Weight (kg) 21
Supplied as standard
- In box
