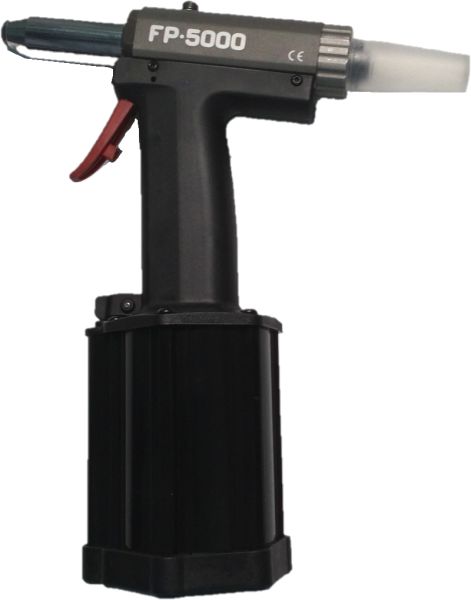

Pull-Link FP-5000 Pneumatic Rivet Tool 2.4-4.8 mm
Special features
- These ergonomically shaped devices feature an easy grip.
- Due to the use of high-quality industrial materials, these devices are very lightweight.
- The components used for these devices, for both the hydraulic and pneumatic parts, and the use of high-quality seals meet current industrial standards and requirements, translated into terms of efficiency and durability.
Technical data
- Capacity: ø 2.4 – 4.8 mm
- For any quality of rivets
- Weight: 1.25 kg
- Dimensions: 240 x 280 x 90 mm
- Stroke: 17.5 mm
- Working pressure: 5 – 7
- Bar Pulling Force: (5 - 7 bar) 7.3 kN-10.2 kN
Standard included
- 1 FP-5000 pliers
- 1 collection cup
- 1 syringe for refilling hydraulic oil
- 1 nosepiece for 4.8/5.0 mm blind rivets (mounted on the pliers)
- 1 nosepiece for 4.0 mm blind rivets
- 1 nosepiece for 3.0/3.2 mm blind rivets.
- 1 combination wrench for mounting/dismounting the nosepieces and nosepiece holder (for regular cleaning of these parts.
- 1 parts list
- In box
