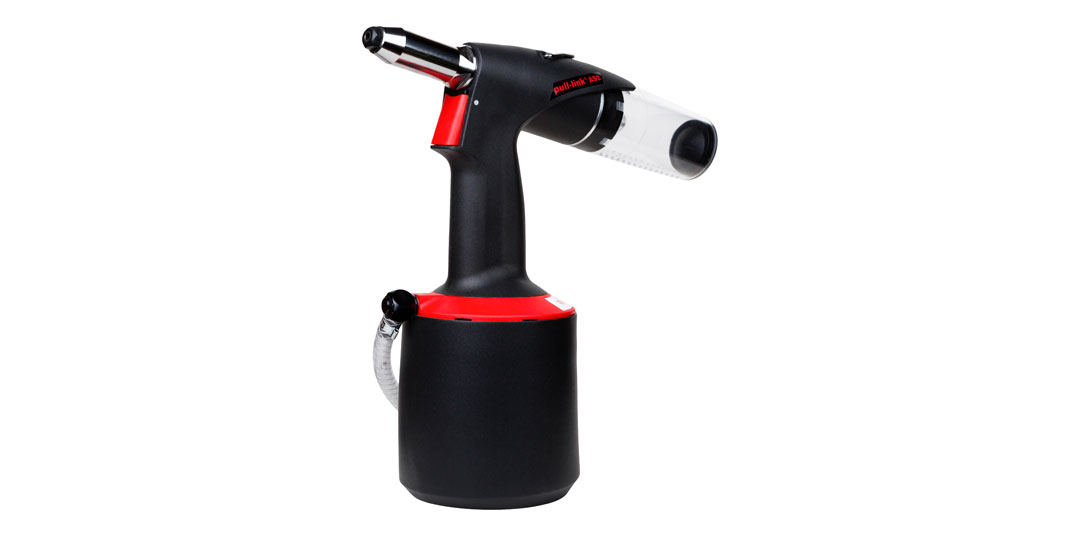

Pull-Link AS-2 Pneumatic Rivet Tool 4.0-6.4 mm
The AS-2 pneumatic rivet tool is suitable for fastening all rivets with a diameter up to and including 6.4 mm.
Special features
- These ergonomically shaped devices feature an easy grip.
- Due to the use of high-quality industrial materials, these devices are very lightweight.
- The components used for these devices, for both the hydraulic and pneumatic parts, and the use of high-quality seals meet current industrial standards and requirements, translated into terms of efficiency and durability.
Technical data
- Capacity: 4.0 – 4.8 / 5.0 – 6.0 – 6.4 mm
- For any quality of rivets
- Weight: 1.65 kg
- Dimensions: 272 x 275 x 120 mm
- Stroke: 21 mm
- Working pressure: 5 – 7
- Bar Tensile force: (6 bar) 12.5 kN
Supplied as standard
- Nose pieces ø 1 x 4.0 mm 1 x 4.8/5.0 mm 1 x 6.0mm 1 x 6.4mm
