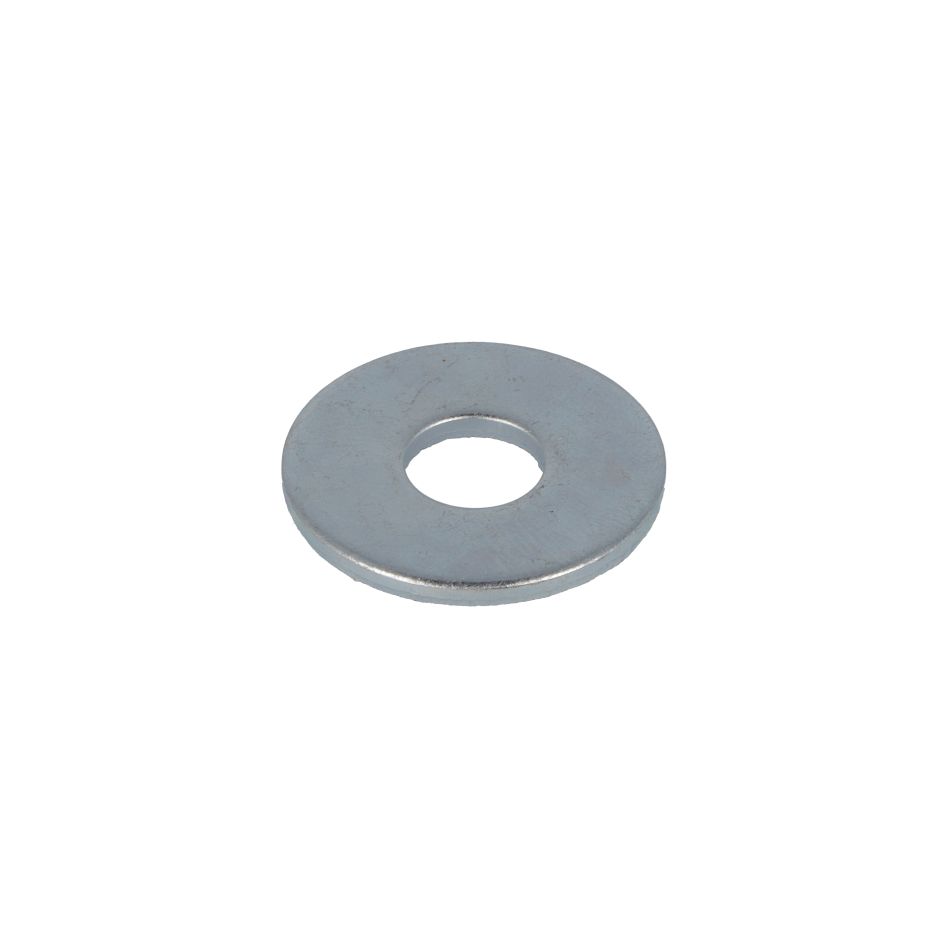

Proftec 5470.01.01001 Body washer VZ DIN9021 M10 - 100 pieces
Special features
- Body washers are used in combination with bolts and nuts
- The pressure distribution of the nut and bolt on the material becomes much more favorable through the use of a washer
- With a body washer, the diameter of the ring is (approximately) three times the hole size of the ring
- Body washers are available in galvanized steel and in a stainless steel A2 version in the PROFTEC range.
Technical data
- Thread (metric): M10
- Inner diameter: 10.5 mm
- Outer diameter: 30 mm
- Height: 2.5 mm
- DIN Standard: 9021
- ISO Standard: 7093
- Material: Steel
- Surface treatment: Electro-galvanized
- Surface treatment color: Blue
- Packaging type: Box
- Package contents quantity: 100 piece(s)
