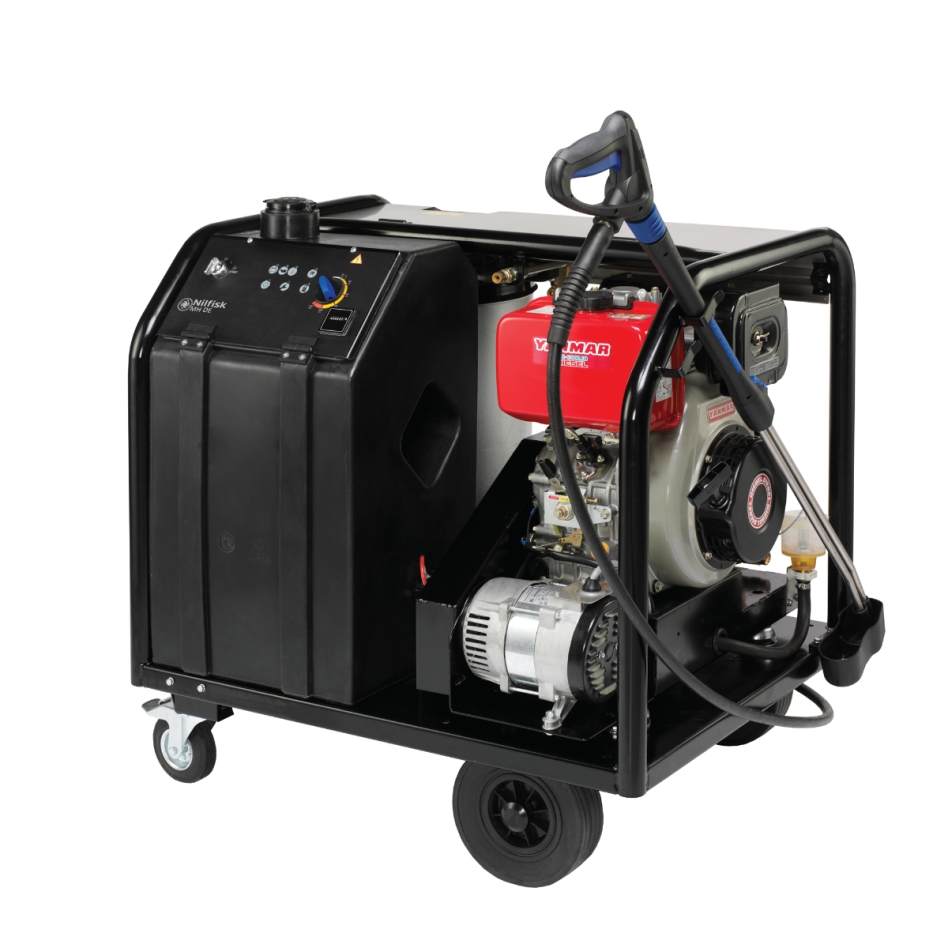

Nilfisk 106239610 MH 5M-200/1000 DE Hot Water High-Pressure Cleaner 200 Bar Diesel Powered
Special Features
- The Nilfisk MH/DE are very high-quality hot water high-pressure cleaners
- They are equipped with a petrol or diesel-powered engine.
- Fuel-powered high-pressure cleaners from Nilfisk
- They can be put into operation completely independent of the environment or business
- An ideal solution for all types of cleaning jobs where items need to be cleaned but where there is no electricity
- For example, situations that may occur in the construction, agricultural sector, and of course cleaning companies
- The Nilfisk blue line MH PE/DE offers a powerful hot water pump with ceramic plungers – Easy access to the control system – Double lance holder – Provision for moving the machine with a forklift – Electric starting system for easy starting – High-efficiency burner with over 92% efficiency (**) – Slow-running motor, low noise level and less wear – Oil shortage protection – Flame and exhaust gas monitoring – A robust housing – High temperature protection (except the 5-51 DE) – Thermal protection valve on the 5-51 DE – Anti-scale feature (optional) (*) Subject to change.
- This hot water high-pressure cleaner has fantastic features and is ideal for heavier applications.
- Nilfisk was the first provider of the ecological and cost-saving high-efficiency burner
- The patented EcoPower system was the first burner to meet CO/NOx standards emission and efficiency
- The high-efficiency burner offers reduced fuel costs through increased efficiency, 18% less fuel consumption while maintaining the same temperature performance.
Technical data
- Article number: 106239610
- Weight (kg): 220
- Length x width x height (mm): 970x780x1000
- Fuel tank (l): Boiler 57/Motor 5.5
- Pump pressure (bar/MPa): 200/20
- Cleaning impact (kg/force): 5.1
- Water capacity Qmax-Qiec (l/h): 1000/900
- Max. Water inlet temperature (°C): 40
- Water temperature (water/steam) (°C): 90/150
- Power consumption (kW): 10 HP/7.3 kW
- Fuel consumption at −T=45°C (kg/h): 4.7
- Suction height (m): 1.5
- Nozzle size: .0450
- Petrol power source:
- Diesel power source: Yanmar L100
- Ceramic plungers: 3
- Pump (rpm): 1485
- Fuel consumption, engine (l/h): 2.2
- Recommended average operating hours per day: 5
- EcoPower heating system: Included
- Ergo accessory system: Included
- Diesel engine: Included
- Robust steel chassis and frame: Included
- Low oil level warning: Included
- Service indicator: Included
- Electric start system: Included
- Large wheels and easy handle: Included
- Fuel tank: Included
- Thermal drain valve: Included
- Flame sensor: Included
- Exhaust gas temperature sensor: Included
Scope of delivery
- Quick coupling set ERGO connection 101119496
- Hose Nozzle 20R 3/4" 61369
- HD Hose 15", double steel reinforcement 301001100
- Handle ERGO 2000pcs. + anti-rotation coupling 106403122
- Spray lance TornadoPlus 1020 mm curved 106403010
- Nozzel TornadoPlus 0450 1/8" 101119740
