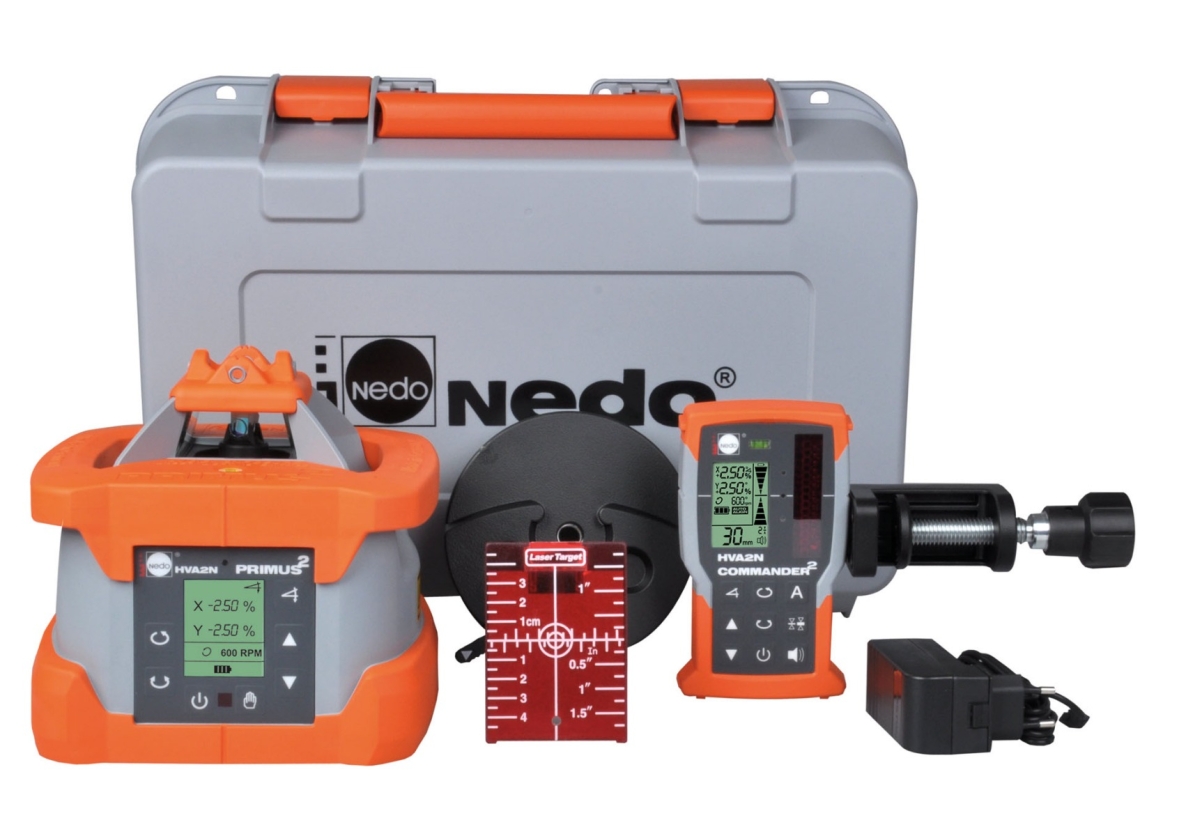

Nedo Primus2 HVA2N Construction Laser + Commander2 receiver!
Nedo Primus2 is the new series of fully automatic rotary lasers for professionals on the construction site. Ideal for setting out, staking out, and checking slopes. Reliable and robust for rough use on the construction site. Uncompromising quality for professionals.
The high-power laser diode with laser class 3R guarantees optimal visibility of the laser beam at all times, even in poor light. The new Primus2 series pushes the boundaries for fully automatic rotary lasers.
The Primus2 series rotary lasers are extremely accurate under all operating conditions: during prolonged rain, in severe cold, or in scorching heat. Always when it matters most. The Primus2 series rotary lasers are water- and dustproof according to IP 66 and operate reliably even under extremely heavy operating conditions. After use, the Primus2 can even be sprayed down and cleaned with a water hose.
High-quality NiMH batteries with Eneloop™ technology guarantee an extremely long service life of over 100 hours and minimal self-discharge. The smart power dispenser allows for quick switching between battery and rechargeable power use. Tired of cumbersome handling? Then you will be enthusiastic about the simple, intuitive operation of the new rotary lasers.
The operating mode, rotation speed, battery status, and, for the H2N and HVA2N, the tilt in the X and Y axes are clearly displayed on the LCD screen. AutoAlign function – time saving in many applications. At the touch of a button, the laser level automatically aligns with the COMMANDER2 HVA laser receiver. Optimal for setting out a construction frame. The working range of the AutoAlign function is 50 m.
Features Primus2 HVA2N
- Fully automatic rotary laser for horizontal and vertical applications
- AutoAlign function: automatic alignment of the laser beam to the zero mark of the laser receiver
- Large, clear display for showing slope, rotation speed, battery charge status, etc.
- High-power laser beam, laser class 3R, for uncomplicated work at short distances. Automatic height monitoring stops the laser in case of strong vibrations. Height errors are thereby prevented.
- Rotor protection made of shatterproof glass
- Extremely accurate under all operating conditions
Technical data Primus HVA2N
- Self-leveling range: ± 5° motorized with automatic monitoring
- Tolerance: ± 0.5 mm/10 m
- Slope: ± 10% direct input in 2 axes
- Laser class: 3R, 635 nm, < 5 mW
- Rotation speed: 0, 60, 300 and 600 rpm
- Scan angle: 0°, 5°, 10° and 15°
- Power supply: NiMH 4.8 V, 7000 mAh battery set
- Operating time: 100 h
- Weight : 3.7 kg
- Dimensions : 210 mm x 205 mm x 185 mm
- Operating temperature : -20°C to + 50°C
- Range Ø : 700 m
- Auto-align range : 50 m
- Remote control range : 100 m
- IP rating : IP 66
Technical data Commander2 HVA2N
- Range : 500m
- Auto-align range : 50 m
- Remote control range : 100 m
- Accuracy : 0.5 / 1 / 2 / 4mm
- Receiver sensor length : 70mm
- Displays: front and rear
- LEDs: 3 colors (red / green / yellow)
- Noise level: Off/loud/soft
- IP rating: IP 66
- Power supply: Battery 3x 1.5 V (AA)
- Operating time: 100 hours
- Dimensions: 168x95x27mm
- Weight: 0.34 kg
Standard included
- Rotation laser Primus2 HVA2N
