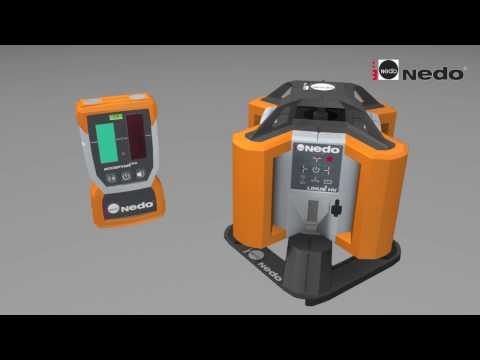

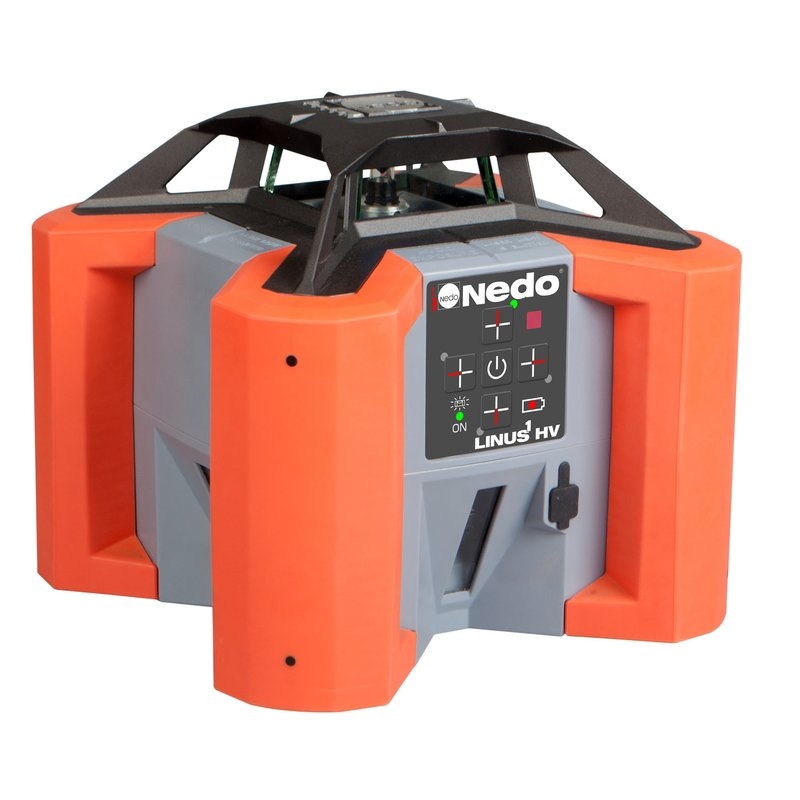

Nedo Universal Laser Linus1 HV
Special features
- Self-leveling multi-line laser for leveling, setting out, plumbing, and conveniently transferring right angles
- Extremely robust
- Horizontal 360° laser beam
- Four verticallaser beams, individually switchable, each offset by 90° and aligned downwardsPlumb point on the floor
- Robust, motorized leveling
- Self-leveling range ± 5°
- Multifunctional die-cast aluminum base withfine adjustment for exact shaft alignment
- Robust, splash-proof housing according to IP 65
- 5/8'' threaded connection

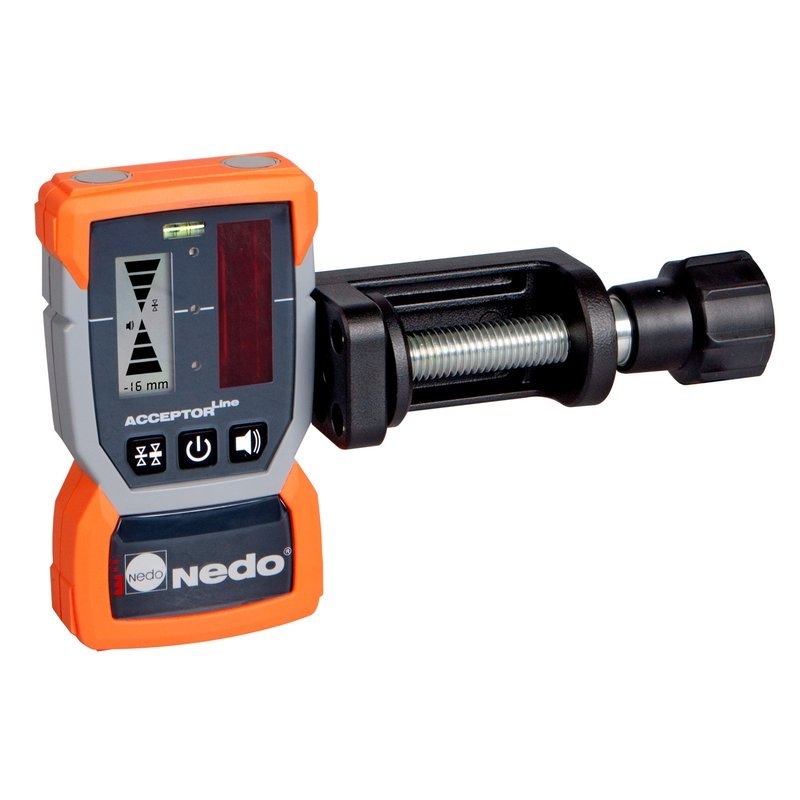

- ACCEPTORLine laser receiver with mm display andheavy-duty die-cast aluminum clamp
Applications:
- Thanks to its well-thought-out functionality and complete equipment, the LINUS1 HV is the perfect aid for all construction workers who need a robust and reliable universal laser for leveling, setting out, and transferring right angles.

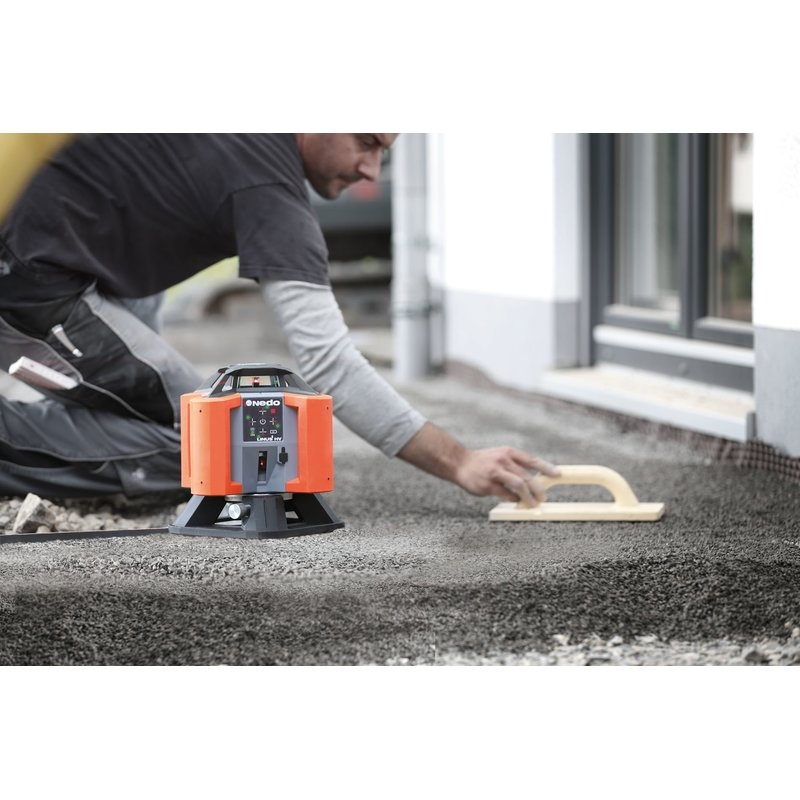

In garden and landscape architecture:
- Paving
- Installing borders
- Constructing parking lots
- Building terraces and sun decks.
In timber construction and for carpentry businesses:
- Installing wooden scaffolding
- Installation of the foot ring in truss construction
- Construction and installation of carports at 1:1 projections

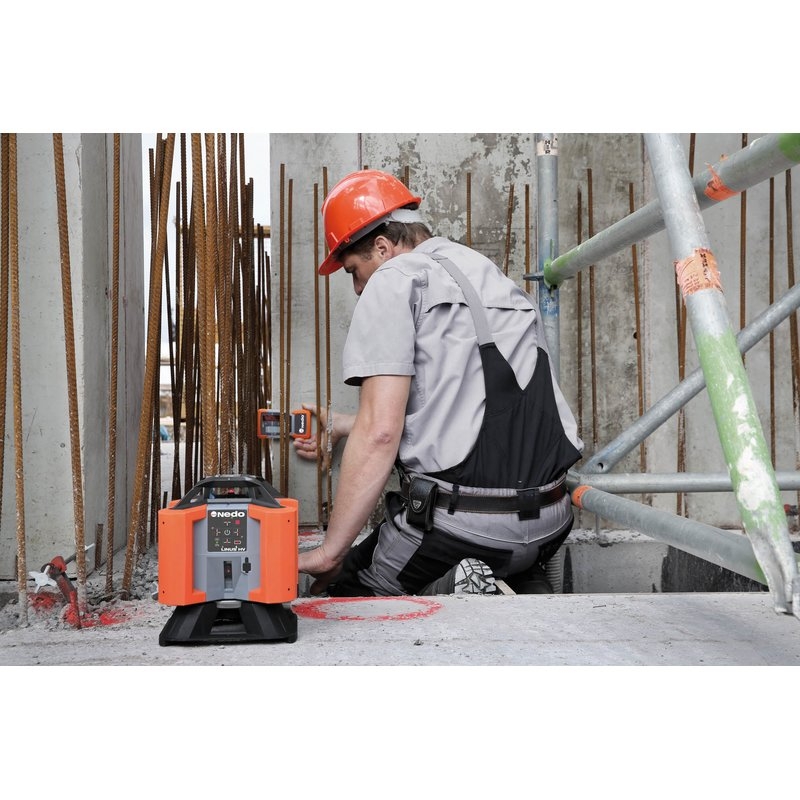

In high-rise construction and in road and hydraulic engineering:

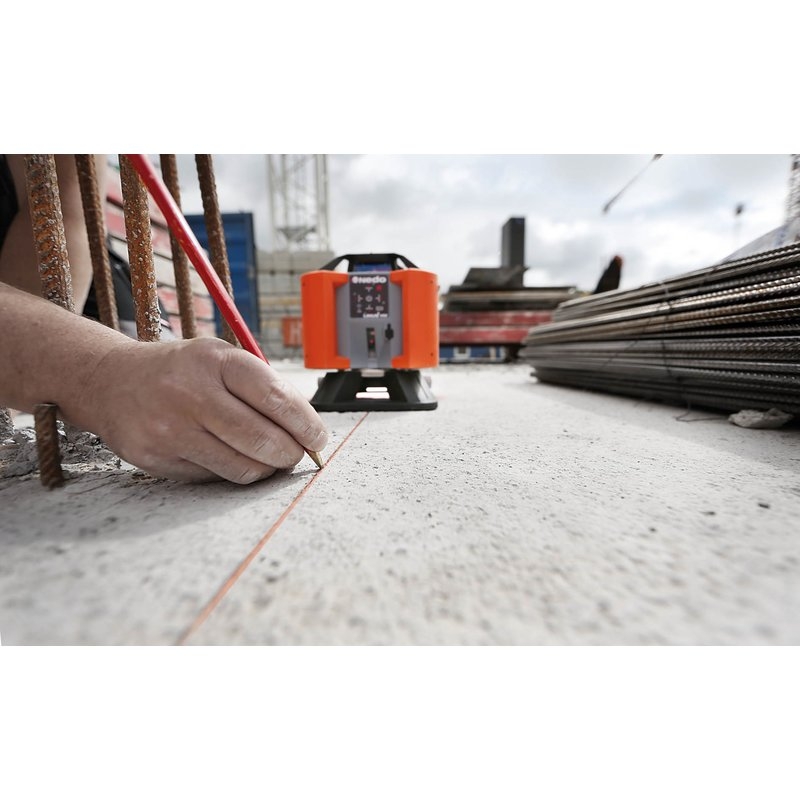

- Setting out right angles on site
- Construction of foundations
- When constructing and inspecting formwork and walls
In steel construction:
- Construction of supports
- Inspection of box girder foundations
- Alignment of welded plates
- Construction of greenhouses.
Technical data
- Tolerance ± 1 mm/10 m
- Self-leveling range ± 5° motorized with automatic monitoring on the horizontal axis
- Range Ø up to 200 m with receiver ACCEPTORLine
- Laser laser class 2M, 635-650 nm
- IP rating IP 65
- Power supply Battery set NiMH 4.8 V, 3800 mAh
- Opening angle of the 4 verticals 135°
- Using time approx. 30 h
- Threaded connection 5/8''

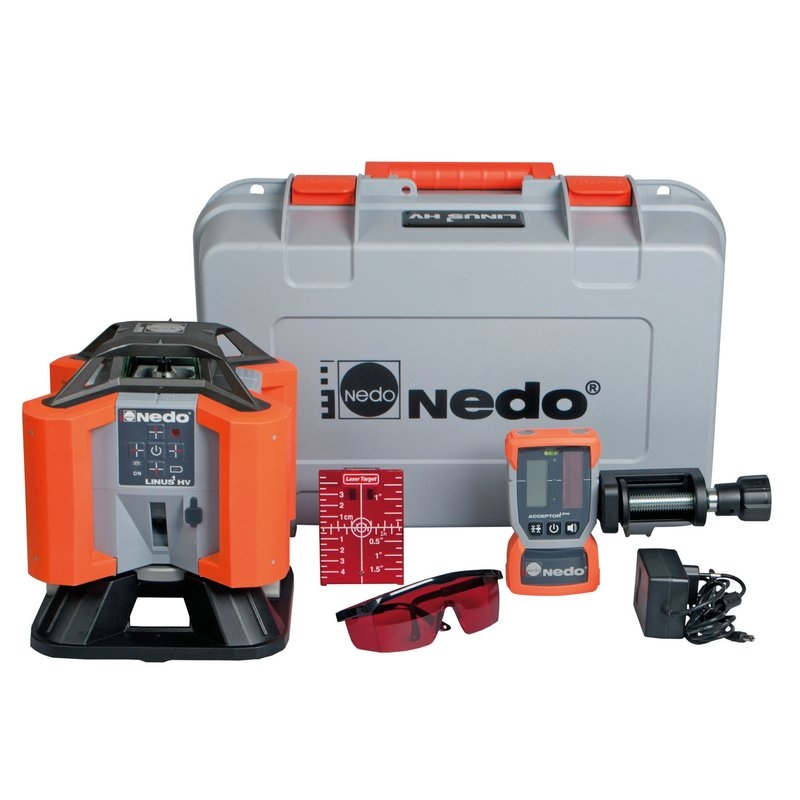

Supplied as standard
- Universal laser
- Laser receiver ACCEPTORLine with heavy-duty rod clamp made of die-cast aluminum
- Multifunctional with fine adjustment for precise shaft alignment
- Batteries
- Charger
- Laser goggles
- Target plate
- Case
